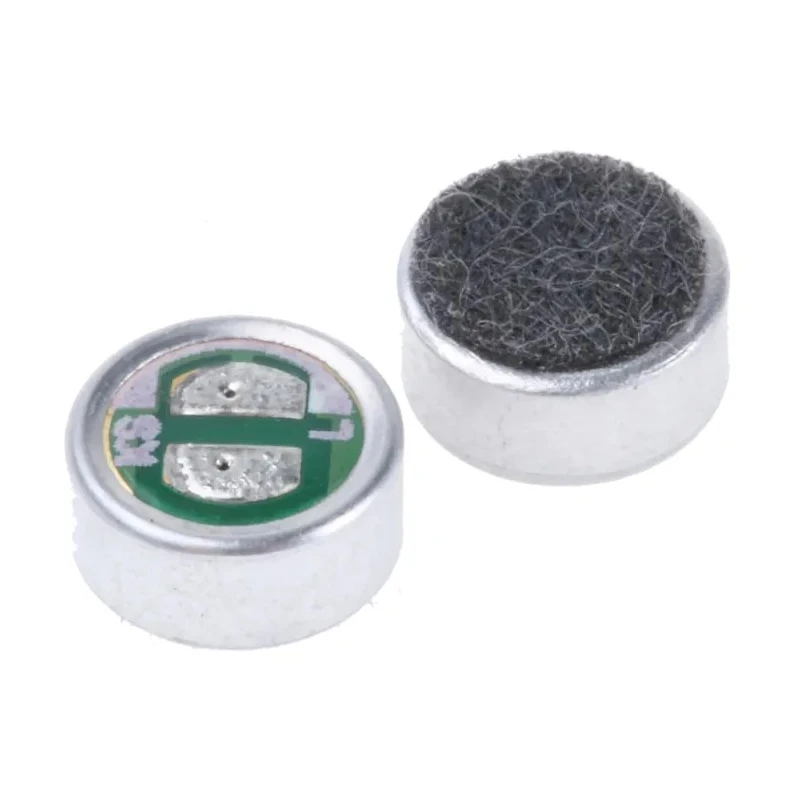

RS PRO Omni-Directional Surface Mount 6 mm Electret Condenser Microphone -42dB 2V DC 771-7020

RS PRO 771-7020 is an omni-directional condenser microphone designed for surface mount applications in electronic devices. With a compact 6 mm diameter and 2.7 mm height, it is ideal for miniature SMT and PCB mounting in audio equipment and sound detecting systems. Operating at a low voltage of 2V DC and a supply current of 500μA, this electret microphone ensures power-efficient performance while maintaining precise sound detection sensitivity at -42dB.

The microphone features an output impedance of 2.2kΩ, ensuring compatibility with a wide range of audio input circuits. Its signal-to-noise ratio of 60dB guarantees clear audio signal quality, minimizing unwanted noise interference. The frequency response spans from 20Hz up to 20kHz, covering the full audible range for high-fidelity sound capture.

Built to operate reliably in diverse environments, it withstands temperatures from -20°C to 70°C. The solder termination style enables easy and secure mounting on printed circuit boards. These features make the RS PRO 771-7020 microphone suitable for audio recording, voice recognition, telecommunications, and other industrial sound sensing applications requiring accurate audio input in compact form factors.

Available as part of a range of miniature electret condenser microphone inserts, this model supports efficient production processes in manufacturing electronics and sound equipment.

This electret condenser microphone features a sensitivity of -42dB for precise sound detection. It operates at a standard voltage of 2V DC, ensuring low power consumption. The microphone has an output impedance of 2.2kΩ, compatible with various audio circuits.

It offers a signal-to-noise ratio of 60dB, ensuring clear audio signals. Designed to withstand temperatures from -20°C up to 70°C, suitable for various environments. The microphone covers a frequency range from 20Hz to 20kHz, supporting full audio spectrum.

Termination style is solder, facilitating easy PCB mounting. The microphone height is 2.7 mm and diameter is 6 mm, compact for miniature electronic assemblies. Supply current is 500μA, optimizing power efficiency in electronic devices.

This product originates from China and is offered in new condition. Browse the Electronics Components category at EnvMart for a wide selection of high-quality Condenser Microphones and sound components.
