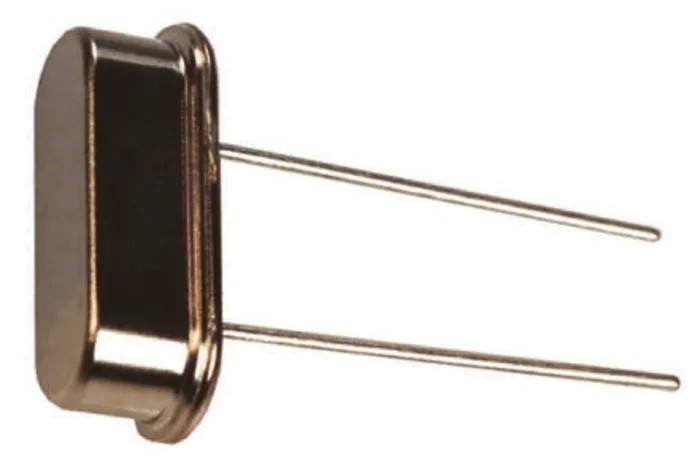

MERCURY 11.0592 MHz Crystal ±30 ppm HC-49-US 2-Pin 3.5 mm Height 10.7 mm Length 4.3 mm Width HUS-11.0592-18-30/50/4085

The MERCURY HUS-11.0592-18-30/50/4085 is a precision crystal unit designed for electronic component applications requiring accurate and stable frequency control. Operating at a standard frequency of 11.0592 MHz, it features a load capacitance of 18 pF and is housed in a compact HC-49-US package suitable for through-hole PCB mounting with its 2-pin configuration.

This crystal unit maintains frequency stability within ±50 ppm and a tight frequency tolerance of ±30 ppm, enabling reliable oscillation performance in sensitive circuits. It operates effectively over a wide temperature range from -40°C to +85°C, making it suitable for industrial, laboratory, and commercial electronics uses.

The dimensions of 10.7 mm in length, 4.3 mm in width, and 3.5 mm in height provide a compact footprint that fits well in space-constrained PCB layouts. A series resistance of 40 Ω helps in managing power dissipation during operation. Additionally, the crystal complies with RoHS environmental regulations, ensuring it meets stringent quality and sustainability standards.

This component is ideally used in oscillators, frequency control devices, and timing circuits across applications such as telecommunications, instrumentation, and embedded systems.

Standard frequency of 11.0592 MHz. Through-hole mount type with 2 pins. Load capacitance of 18 pF for frequency accuracy. Compact HC-49-US package with dimensions 10.7x4.3x3.5 mm. Frequency tolerance ±30 ppm and stability ±50 ppm.

Operating temperature range -40°C to +85°C. Series resistance of 40 Ω. RoHS compliant for environmental safety. Explore more high-quality Crystal Units and electronic components at EnvMart, tailored for precision electronics design and manufacturing.
