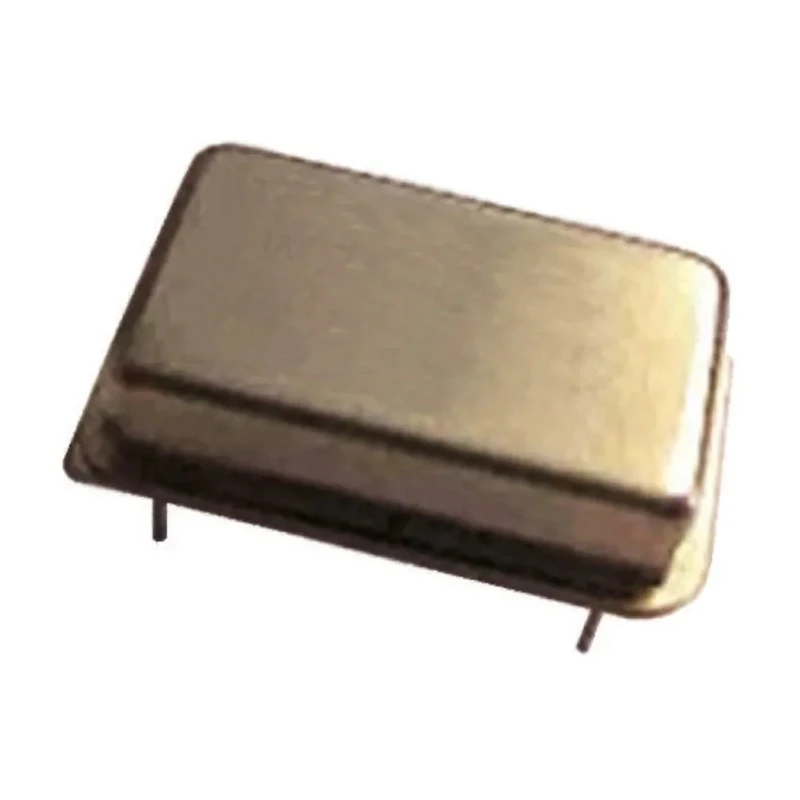

MERCURY 4.9152MHz Clock Oscillator ±50 ppm HCMOS TTL 14-Pin PDIP 5H14ET-4.9152
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-4.9152 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 4.9152MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
Key Features
- Industry-standard 14-pin Dual-In-Line Package (PDIP) for through hole mounting.
- Output levels compatible with HCMOS and TTL logic.
- Maximum supply voltage of 5V ensuring compatibility with standard digital circuits.
- Operating temperature range from -40°C to 85°C for reliable industrial use.
- Compact dimensions with length 20.2mm, width 10.7mm, and height 5.08mm.
- Meets RoHS compliance standards ensuring environmentally safe manufacturing.
- Designed for precise clock generation in electronic and industrial applications.
- Manufactured in Taiwan, Province Of China, ensuring quality standards.
Product Description
MERCURY 5H14ET-4.9152 Clock Oscillator is a high precision clock oscillator providing a stable output frequency of 4.9152MHz with a frequency stability of ±50 ppm. It features a 14-pin PDIP package with HCMOS and TTL compatible output levels, making it suitable for a wide range of electronic circuit applications requiring reliable clock signals.
This oscillator operates at a maximum supply voltage of 5V and supports a wide temperature range from -40°C to 85°C, ensuring consistent performance under various environmental conditions typical in industrial and laboratory settings. Its metal package with through-hole mounting enables easy integration on printed circuit boards.
The compact form factor of 20.2mm length, 10.7mm width, and 5.08mm height allows use in space-constrained designs. The product adheres to RoHS standards, guaranteeing it meets environmental compliance for safer disposal and user safety.
Industry-standard 14-pin PDIP through-hole metal package. High frequency stability of ±50 ppm for accurate timing applications. Compatible with both HCMOS and TTL output logic levels. Max supply voltage of 5V suitable for common digital systems.
Wide operating temperature range from -40°C to +85°C for robust industrial use. Compact dimensions for easy integration into various systems. RoHS compliant, environmentally friendly manufacturing processes.
This oscillator is ideal for use in electronics manufacturing, industrial control systems, communication devices, lab equipment, and automated machinery requiring precise timing signals. Its reliable performance ensures improved operational consistency and efficiency in various technical fields.
Explore more precision oscillators and electronic components in the Oscillator category on EnvMart to find suitable parts for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 4.9152MHz, providing stable timing signals for various applications.
This clock oscillator has a maximum supply voltage of 5V, making it compatible with standard digital circuits.
It operates within a temperature range of -40°C to 85°C, suitable for reliable performance in industrial environments.
The oscillator is packaged in a 14-pin Dual-In-Line Package (PDIP) for through-hole mounting, facilitating easy integration into circuit boards.
It features output levels that are compatible with both HCMOS and TTL logic, allowing for versatile applications in electronic circuits.
The dimensions of this oscillator are 20.2mm in length, 10.7mm in width, and 5.08mm in height.
Yes, it meets RoHS compliance standards, ensuring environmentally safe manufacturing processes.
This model is designed for precise clock generation in electronics manufacturing, industrial control systems, communication devices, and lab equipment.
The frequency stability of this clock oscillator is ±50 ppm, ensuring accurate timing for various applications.
The MERCURY 5H14ET-4.9152 is manufactured in Taiwan, Province Of China, adhering to quality standards.
This oscillator belongs to the H14 series, which includes various models designed for similar applications.
It uses a through-hole mounting type, making it suitable for easy installation on printed circuit boards.
