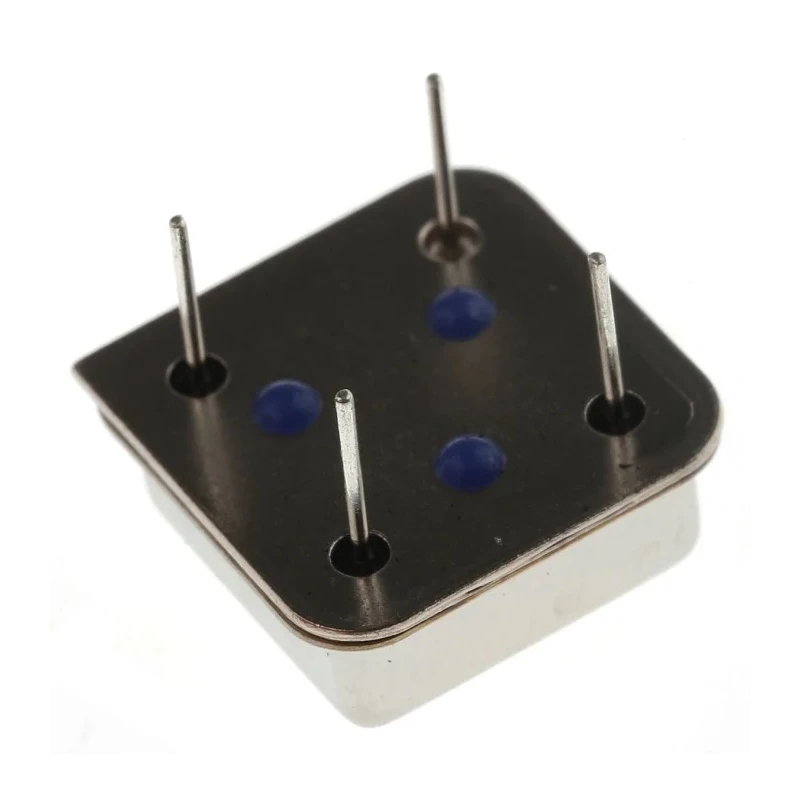

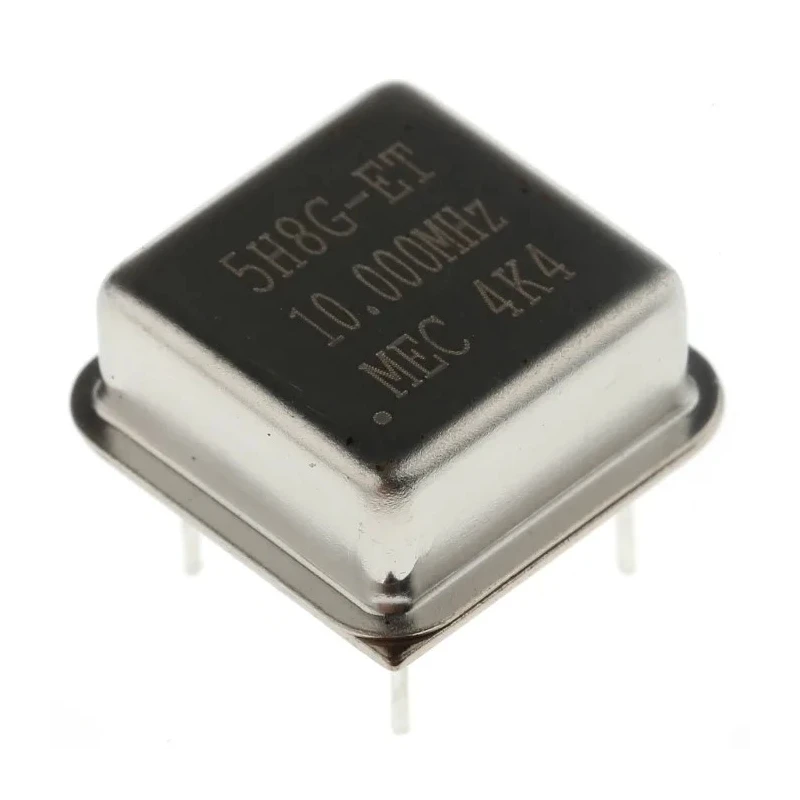

MERCURY 10MHz Clock Oscillator ±50 ppm HCMOS TTL 8-Pin PDIP 5H8ET-10.000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 12.8mm |
| Model | 5H8ET-10.000 |
| Width | 12.8mm |
| Mount Type | Through Hole |
| Series | H8 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 10MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | HCMOS, TTL |
| QANTEK, 10MHz XO Oscillator, ±50 ppm HCMOS, 8-Pin PDIPBrand | QANTEK |
Key Features
- Operates at a frequency of 10MHz with high stability.
- Provides HCMOS and TTL compatible output levels.
- Packaged in a through-hole 8-pin dual-in-line PDIP metal case.
- Supports operating temperatures from -40°C to 85°C for industrial applications.
- Maximum supply voltage rating of 5 V for standard digital circuits.
- Compact dimensions of 12.8mm length, 12.8mm width, and 5.08mm height.
- RoHS compliant and manufactured to industry-standard H8 series specifications.
- Suitable for use in industrial, electronic, and measurement systems requiring precise timing signals.
Product Description
MERCURY 5H8ET-10.000 Clock Oscillator 10MHz is a precision crystal oscillator designed to provide stable and accurate clock signals for electronic systems. Featuring a frequency stability of ±50 ppm, it ensures reliable timing performance for demanding industrial and commercial applications.
The oscillator uses HCMOS and TTL output logic levels, making it compatible with a wide variety of digital circuits and microcontrollers. It is packaged in an industry-standard 8-pin PDIP (Plastic Dual Inline Package) metal case optimized for through-hole PCB mounting, enabling robust mechanical and electrical connections.
Operating over a temperature range from -40°C to 85°C, the device suits harsh environments in automotive electronics, industrial automation, and telecommunications systems. The maximum supply voltage of 5 V aligns with typical digital system requirements.
Its compact dimensions of 12.8mm by 12.8mm by 5.08mm facilitate integration into space-constrained circuit board designs. The product is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
MERCURY H8 series clock Oscillators are widely used in electronic instrumentation, timing control systems, and embedded electronics to deliver precise frequency references critical for system stability and accuracy.
Operates at a frequency of 10MHz with high stability. Provides HCMOS and TTL compatible output levels. Packaged in a through-hole 8-pin dual-in-line PDIP metal case. Supports operating temperatures from -40°C to 85°C for industrial applications.
Maximum supply voltage rating of 5 V for standard digital circuits. Compact dimensions of 12.8mm length, 12.8mm width, and 5.08mm height. RoHS compliant and manufactured to industry-standard H8 series specifications. Suitable for use in industrial, electronic, and measurement systems requiring precise timing signals.
Explore our extensive range of electronic components for industrial and laboratory applications through EnvMart's Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 10MHz, providing stable and accurate clock signals for electronic systems.
It provides HCMOS and TTL compatible output levels, making it suitable for a wide variety of digital circuits and microcontrollers.
The maximum supply voltage rating for this oscillator is 5V, aligning with typical requirements for standard digital circuits.
This model supports an operating temperature range from -40°C to 85°C, making it suitable for harsh environments.
The compact dimensions of this unit are 12.8mm in length, 12.8mm in width, and 5.08mm in height.
It is packaged in an 8-pin dual-in-line PDIP (Plastic Dual Inline Package) metal case, optimized for through-hole PCB mounting.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is suitable for use in industrial, electronic, and measurement systems that require precise timing signals.
The frequency stability of this model is ±50 ppm, ensuring reliable timing performance for demanding applications.
This oscillator features 8 pins, allowing for easy integration into various electronic circuits.
This model belongs to the H8 series of clock oscillators, designed for precision and stability in timing applications.
The country of origin for this oscillator is Taiwan, where it is manufactured to industry standards.
