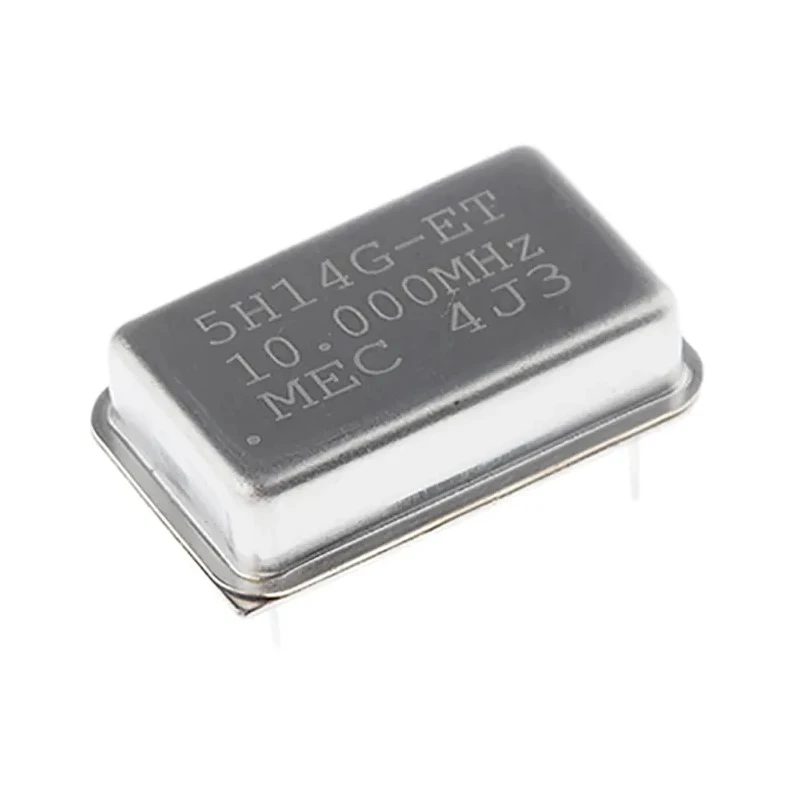

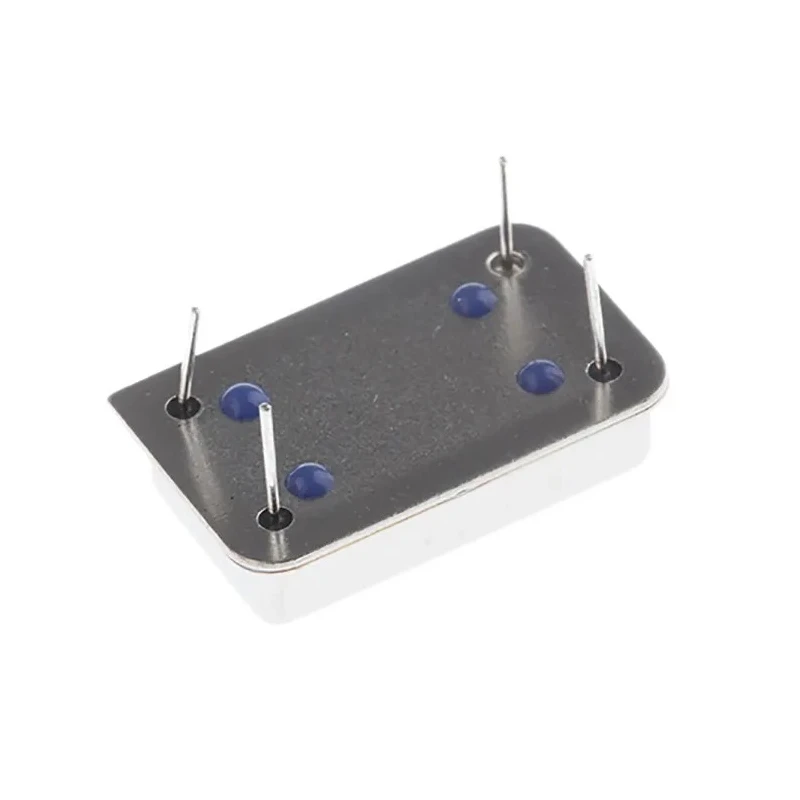

MERCURY 10MHz Clock Oscillator ±50 ppm TTL, HCMOS Output, 14-Pin PDIP Package 5H14ET-10.000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | MERCURY |
| Height | 5.08mm |
| Length | 20.2mm |
| Model | 5H14ET-10.000 |
| Width | 10.7mm |
| Mount Type | Through Hole |
| Series | H14 |
| Maximum Operating Temperature | 85°C |
| Output Frequency | 10MHz |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5V |
| Oscillator Type | Clock |
| Output Level | TTL, HCMOS |
Key Features
- Industry-standard 14-pin Dual-in-Line Package ensures easy PCB through-hole mounting.
- Oscillator operates at a frequency of 10MHz with a precision frequency stability of ±50 ppm.
- Designed to operate over a temperature range of -40°C to 85°C for robust industrial performance.
- Supports maximum supply voltage of 5V compatible with TTL and HCMOS logic levels.
- Compact dimensions of 20.2mm length, 10.7mm width, and 5.08mm height for flexible integration.
- Fully RoHS compliant ensuring environmental and health safety standards.
- Manufactured in Taiwan, Province of China.
Product Description
MERCURY 5H14ET-10.000 is a high-precision 10MHz clock oscillator designed for generating stable timing signals in a wide array of electronic devices. Featuring a ±50 ppm frequency stability, this oscillator ensures reliable and consistent output suitable for demanding industrial, commercial, and laboratory applications.
The device is housed in an industry-standard 14-pin PDIP (Plastic Dual In-line Package) which allows straightforward through-hole PCB mounting. Its compact form factor with dimensions of 20.2mm length, 10.7mm width, and 5.08mm height maximizes design flexibility for integrated circuits and embedded systems.
Operating at a supply voltage up to 5V, the oscillator supports output levels compatible with TTL and HCMOS logic families, enabling easy interfacing with digital circuits. It functions reliably across a wide operating temperature range from -40°C to 85°C, making it suitable for harsh industrial environments.
This product complies fully with RoHS environmental directives, ensuring it is free from hazardous substances. It is manufactured in Taiwan, Province of China, reflecting high-quality production standards.
Industry-standard 14-pin through-hole PDIP packaging for easy PCB mounting. Output frequency of 10MHz with tight frequency stability of ±50 ppm. Operates over industrial temperature range from -40°C to 85°C. Compatible with TTL and HCMOS output logic levels at 5V maximum supply voltage.
Compact dimensions of 20.2mm x 10.7mm x 5.08mm. RoHS compliant ensuring compliance with environmental standards. Manufactured in Taiwan, Province of China.
This clock oscillator is ideal for applications in industrial automation, electronic instrumentation, telecommunications equipment, and embedded digital systems. Its robust design and precise output ensure consistent performance in timing-critical operations.
Explore the extensive range of Oscillators and electronic components available on EnvMart to find the perfect fit for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output frequency of this model is 10MHz, providing stable timing signals for various applications.
This oscillator features a frequency stability of ±50 ppm, ensuring reliable performance in timing applications.
It operates effectively over a temperature range of -40°C to 85°C, suitable for harsh industrial environments.
The oscillator is housed in a 14-pin PDIP (Plastic Dual In-line Package), allowing for easy through-hole PCB mounting.
The dimensions of this model are 20.2mm in length, 10.7mm in width, and 5.08mm in height.
The maximum supply voltage for this unit is 5V, compatible with TTL and HCMOS logic levels.
It supports output levels compatible with TTL and HCMOS logic families, facilitating easy interfacing with digital circuits.
Yes, this oscillator is fully RoHS compliant, ensuring it meets environmental and health safety standards.
This model is suitable for applications in industrial automation, electronic instrumentation, telecommunications, and embedded digital systems.
The oscillator has a pin count of 14, which is standard for its package type.
It is manufactured in Taiwan, Province of China, reflecting high-quality production standards.
This unit is classified as a clock oscillator, designed for generating stable timing signals.
