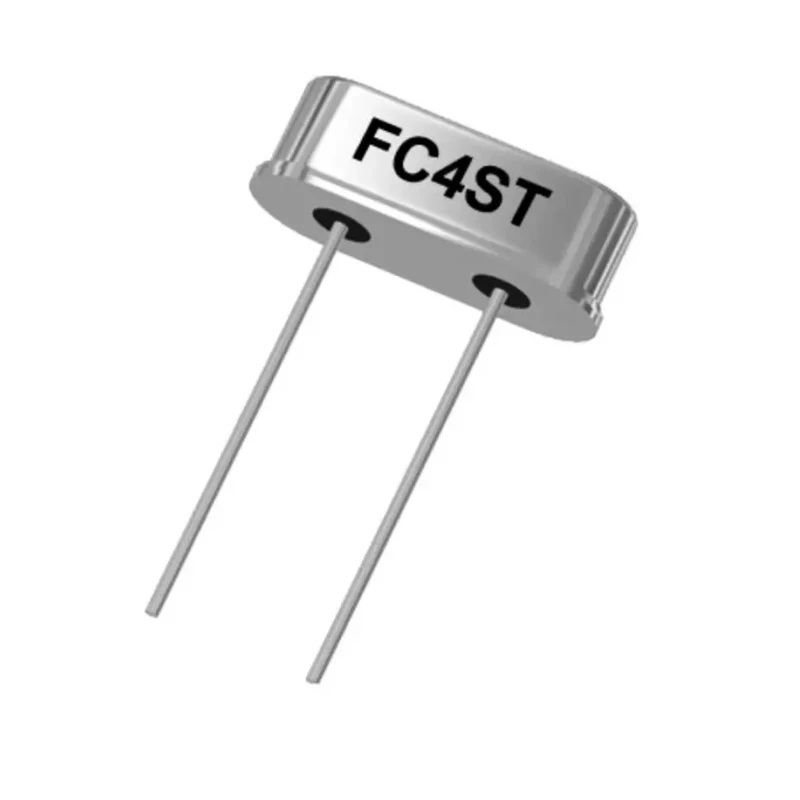

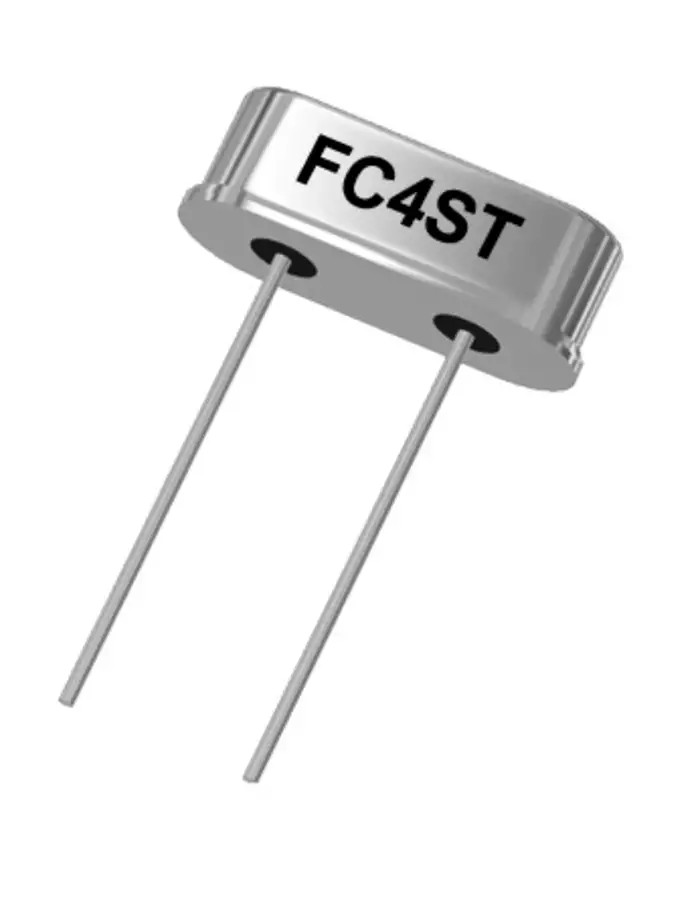

Abracon 18.432 MHz ±30 ppm HC-49 2-Pin Through Hole Crystal FC4STCBMF18.432
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3.6mm |
| Length | 11.35mm |
| Model | FC4STCBMF18.432 |
| Packaging | Tape & Reel |
| Width | 4.64mm |
| Mount Type | Through Hole |
| Series | FC4ST |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 18.432MHz |
| Load Capacitance | 20pF |
Key Features
- This through-hole crystal operates at a standard frequency of 18.432 MHz.
- It features a frequency tolerance of ±30 ppm and frequency stability of ±50 ppm.
- The crystal has a load capacitance of 20 pF and shunt capacitance of approximately 7 pF.
- Package Type is HC-49 with dimensions of length 11.35 mm, width 4.64 mm, and height 3.6 mm.
- Operating temperature ranges from -20°C to +70°C, ensuring robust performance.
- Complies with RoHS standards and has a solder termination finish with Sn, Ag 3.0%, and Cu 0.5%.
Product Description
Abracon FC4STCBMF18.432 is a precision 18.432 MHz crystal oscillator designed for through-hole mounting applications. The HC-49 package offers reliable mechanical stability with a 2-pin configuration, measuring 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height. This crystal operates with a frequency tolerance of ±30 ppm and frequency stability down to ±50 ppm, making it suitable for timing and frequency control in various electronic circuits.
The crystal boasts a load capacitance of 20 pF and a shunt capacitance of approximately 7 pF, enhancing its electrical resonance qualities. Its operating temperature range of -20°C to 70°C ensures dependable performance across typical industrial and commercial environments. The termination finish includes a robust combination of tin (Sn), silver (Ag 3.0%), and copper (Cu 0.5%), optimizing solderability and long-term reliability.
Compliant with RoHS standards, the Abracon FC4STCBMF18.432 crystal is ideal for use in electronic components, power and connectors, passive components, crystal units, oscillators, and resonators applications. Its through-hole mounting style makes it compatible with standard PCB layouts, supporting applications in industrial electronics, instrumentation, communication devices, and control systems.
This crystal operates at 18.432 MHz frequency suited for precise timing applications. Frequency tolerance is guaranteed within ±30 ppm for accuracy. Durable HC-49 package with 2-pin through-hole mount. Temperature operating range from -20°C to 70°C for versatility in environments.
RoHS compliant ensuring environmentally friendly manufacturing. Load capacitance of 20 pF enhances frequency stability and resonance. Termination finish of Sn, Ag 3.0%, and Cu 0.5% for quality solder joints.
This crystal unit is a reliable component choice for industrial, laboratory, telecommunications, and consumer electronics that require stable frequency characteristics. Explore more Crystal Units and electronic components at EnvMart for your design and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Abracon FC4STCBMF18.432 operates at a standard frequency of 18.432 MHz.
This crystal has a frequency tolerance of ±30 ppm.
The load capacitance for this crystal unit is 20 pF.
The dimensions of the HC-49 package are 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height.
The operating temperature range for this model is from -20°C to +70°C.
This crystal unit is designed for through-hole mounting.
The shunt capacitance is approximately 7 pF.
The termination finish includes tin (Sn), silver (Ag 3.0%), and copper (Cu 0.5%).
Yes, the Abracon FC4STCBMF18.432 complies with RoHS standards.
This model features a pin count of 2.
This crystal is suitable for various applications in electronic components, power connectors, oscillators, and resonators.
The country of origin for this crystal unit is India.
