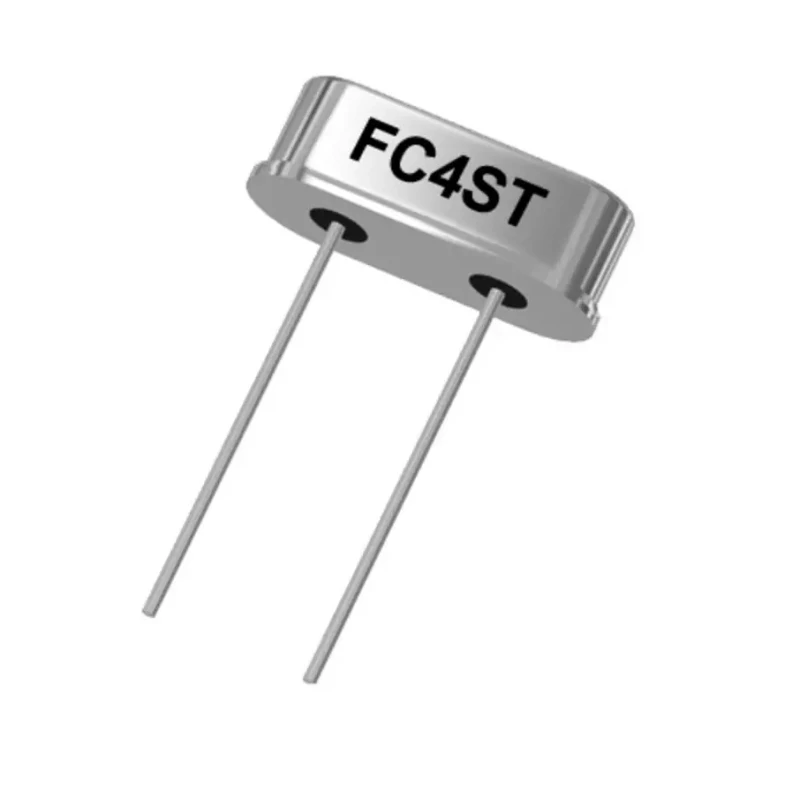

Abracon 16 MHz Crystal ±30 ppm HC-49 Through Hole 2-Pin 11.35 mm Length FC4STCBAF16.0

Abracon FC4STCBAF16.0 16 MHz Crystal is a precision HC-49 two-pin through-hole crystal oscillator with ±30 ppm frequency tolerance, designed for reliable frequency generation in diverse electronic applications.

This crystal offers a compact form factor, measuring 11.35 mm in length, 4.64 mm in width, and 3.6 mm in height, fitting standard through-hole PCB mounting styles. It supports a broad operating temperature range from -20°C to +70°C, making it suitable for use in various industrial, consumer electronics, and commercial devices.

The FC4ST series utilizes resistance weld seal technology with termination finishes including tin, silver plating (Ag 3.0 µm), and copper (Cu 0.5 µm), ensuring robust electrical and mechanical connections. With a shunt capacitance of 7 pF and series load capacitance configuration, it provides stable oscillation with minimal frequency deviation.

The product is compliant with RoHS environmental standards, ensuring reduced hazardous substances content, making it eco-friendly for integration into modern electronics. Packaging is conducted in tape and reel format, facilitating efficient pick-and-place automated assembly.

The crystal operates at a standard frequency of 16 MHz for stable oscillation. It has a frequency tolerance of ±30 ppm ensuring precise timing control. The HC-49 package dimensions are 11.35 mm length, 4.64 mm width, and 3.6 mm height.

The crystal supports operating temperatures from -20°C to +70°C, suitable for a wide range of environments. It is RoHS compliant, meeting environmental standards for hazardous substances. This crystal unit features resistance weld seal with termination finishes including Sn, Ag3.0, and Cu0.5.

Shunt capacitance is 7 pF, and the load capacitance is configured as series. Packaging is tape and reel, optimized for automated assembly processes. Designed for use in electronic equipment requiring precise frequency generation and control.

This crystal is ideal for industrial electronics, telecommunications equipment, instrumentation, and other applications demanding accurate frequency reference. Discover more crystal unit options in our Electronics Components category and find components from trusted brands like Abracon at EnvMart.
