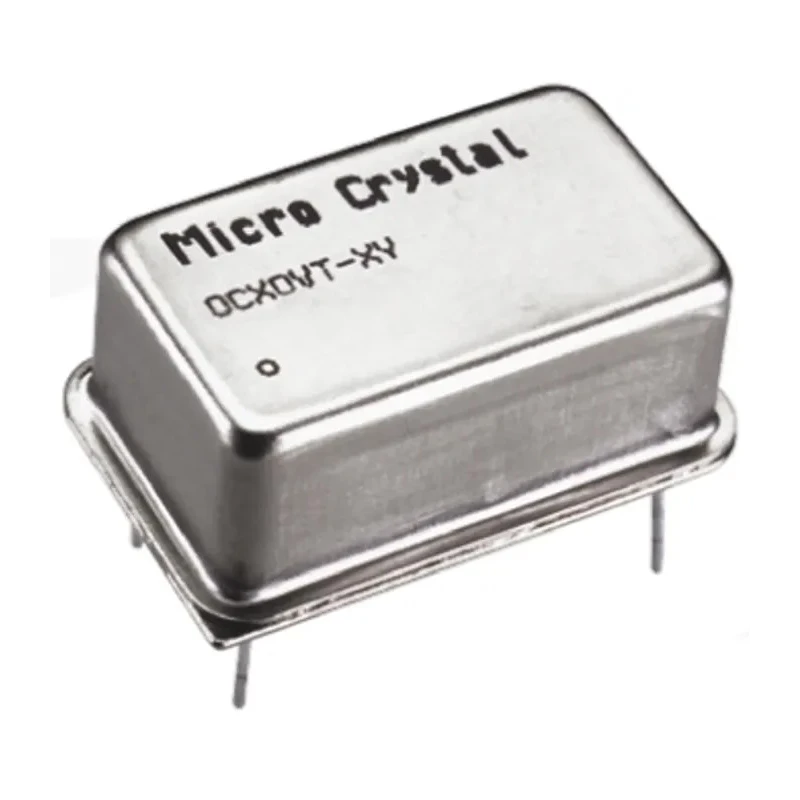

Micro Crystal 10MHz Oscillator PDIP ±0.2 ppm 14-Pin HCMOS Output OCXOV-AV5-10.000

Micro Crystal OCXOV-AV5-10.000 is a high-precision 10MHz oscillator featuring a PDIP 14-pin package and HCMOS output, designed for electronic components and circuits requiring accurate frequency control.

This oscillator uses an oven-controlled quartz crystal technology. The internal temperature sensor, heating element, and oven-controlled circuitry maintain a constant temperature inside the oscillator enclosure. This construction greatly minimizes the frequency variation induced by external ambient temperature changes, providing an exceptional frequency stability of ±0.2 ppm.

The product supports a wide operating temperature range from 0°C up to 60°C and supply voltages from 3.3V to 12V, making it suitable for industrial, laboratory, communication, and instrumentation electronics applications.

Physical dimensions are compact with a length of 20.14mm, width of 12.52mm, and height of 7.8mm, facilitating easy integration into through-hole mount designs. The oscillator is engineered with 15pF load capacitance and delivers a stable HCMOS output level compatible with standard digital logic circuits.

Assembled in Switzerland, this oscillator meets stringent quality standards but does not carry specific approvals or automotive standards. It is ideal for use in precision timing devices, frequency synthesis, and signal processing applications where high frequency accuracy and stability are crucial.

Provides a stable output frequency of 10MHz with ±0.2 ppm frequency stability. Features a 14-pin PDIP package with through-hole mount type. Supplies HCMOS level output compatible with digital circuits. Operates over 0°C to 60°C with supply voltage between 3.3V and 12V.

Compact dimensions for space-constrained applications. Oven-controlled crystal technology maintains frequency accuracy. Manufactured in Switzerland ensuring product quality and reliability.

This Micro Crystal oscillator belongs to the DIL 14 series of OCXO Oscillators, designed for demanding electronic components and power connector applications. It is well suited for industrial electronics, communication devices, instrumentation, and laboratory equipment requiring precise timing references.
