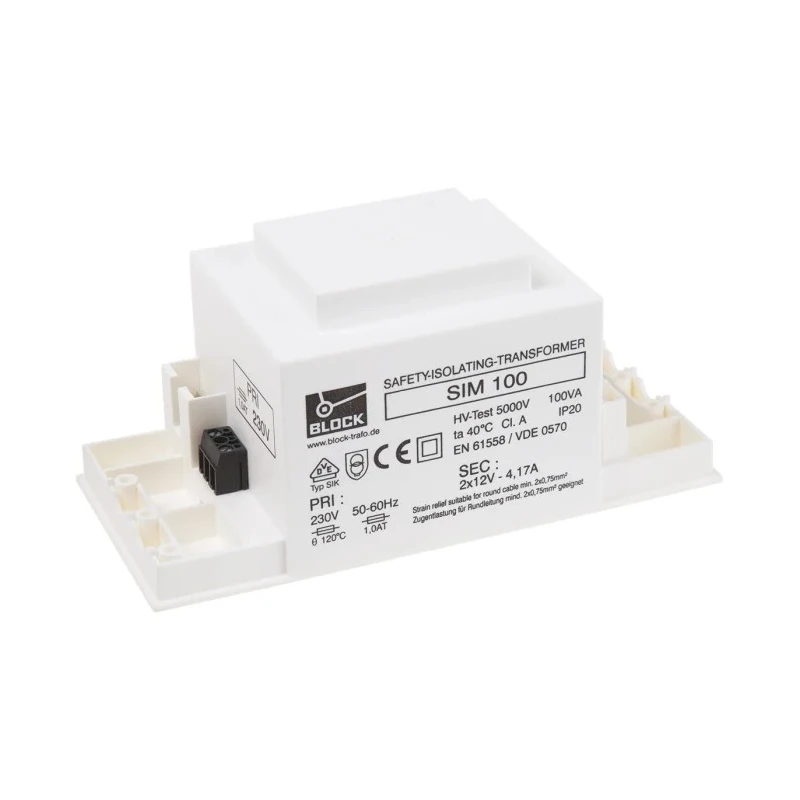

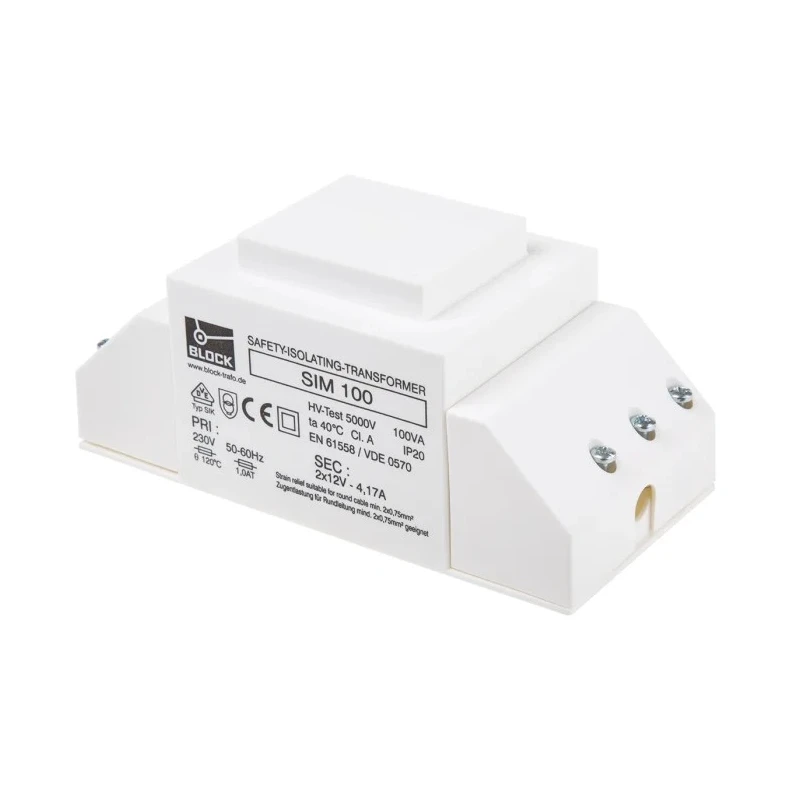

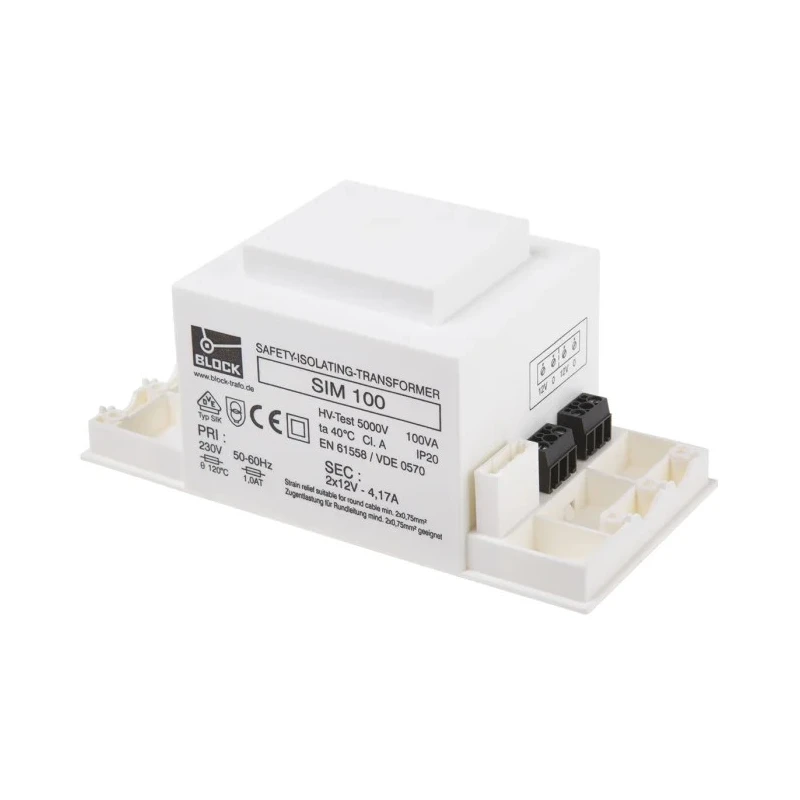

Block 2 Output 100 VA Chassis Mount Transformer 230 V ac Primary, 2 x 12 V ac Secondary, cUL 506, VDE, EN 61558 SIM 100

Free Delivery in India | Lowest Global Shipping Charges

Block 2 Output 100 VA Chassis Mount Transformer 230 V ac Primary, 2 x 12 V ac Secondary, cUL 506, VDE, EN 61558 SIM 100

Name: Block 2 Output 100 VA Chassis Mount Transformer 230 V ac Primary, 2 x 12 V ac Secondary, cUL 506, VDE, EN 61558 SIM 100
Brand: Block
SKU: 95567
Price: 122.17 USD
Availability: InStock



Category Chassis Mounting Transformers Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Length	166mm
Model	SIM 100
Depth	77mm
Gross Weight	2kg
Width	166mm
Construction	Class 2
Maximum Operating Temperature	40°C
Number of outputs	2
Standards/Approvals	cUL 506, VDE, VDE 0570, EN 61558, UL 506
Primary Voltage	230 V ac
Secondary Voltage	2 x 12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
Protection Index	IP20
Insulation Category	Class B (Typical)
Max ambient temp	+40°C

Key Features

The transformer features dual secondary outputs for series or parallel connection.
It offers a power rating of 100 VA with high efficiency typically at 88%.
Encapsulated in a sturdy plastic housing, it supports a maximum ambient temperature of 40°C.
The unit is short-circuit proof and includes thermal overload and primary fuse protection.
Approved to cUL 506, VDE, VDE 0570, EN 61558 and UL 506 standards ensuring safety and reliability.
Compact dimensions of 166mm length, 166mm width, and 77mm depth allow easy chassis mounting.
Operating frequency ranges from 50 Hz to 60 Hz, suitable for single phase 230 V ac input.
Provides IP20 protection index and insulation category Class B with Class 2 construction.

Product Description

Block SIM 100 is a high-quality 2 Output 100 VA Chassis Mount Transformer designed for safe and efficient power supply applications. Featuring a 230 V ac primary voltage and dual 12 V ac secondary outputs, this transformer is engineered for versatility with options to connect the outputs in series or parallel. The encapsulated plastic housing and compact size make it ideal for easy chassis installation within electronic and electrical equipment.

Constructed to meet stringent standards including cUL 506, VDE, EN 61558, and UL 506, the SIM 100 ensures compliance with safety and performance regulations. It is short-circuit proof and incorporates thermal overload and primary fuse protection to safeguard connected systems.

With a maximum ambient operating temperature of 40°C, a high efficiency of approximately 88%, and IP20 protection, this transformer suits industrial, commercial, and laboratory power supply requirements. The insulation category Class B and Class 2 construction offer reliable electrical isolation and durability.

The transformer's precise dimensions - 166mm length, 166mm width, and 77mm depth - and weight of 2 kg allow convenient installation and maintenance in various setups. Operating frequency between 50 Hz and 60 Hz supports standard single-phase power sources.

The transformer has two secondary outputs configurable in series or parallel connections. Its plastic encapsulated housing provides up to 300 VA power handling capacity. Thermal overload and integrated primary fuse ensure enhanced safety.

Compliance with multiple international safety standards guarantees operational reliability. Compact design and chassis mounting facilitate installation in electrical enclosures. Made in Germany, reflecting quality manufacturing processes.

Suitable for use in industrial electronics, power supplies, and control panels.

For a reliable chassis mount transformer offering excellent efficiency and robust protection features, the Block SIM 100 is a preferred choice. Explore more transformers and electronic components available to support your industrial and commercial power supply needs on EnvMart.
