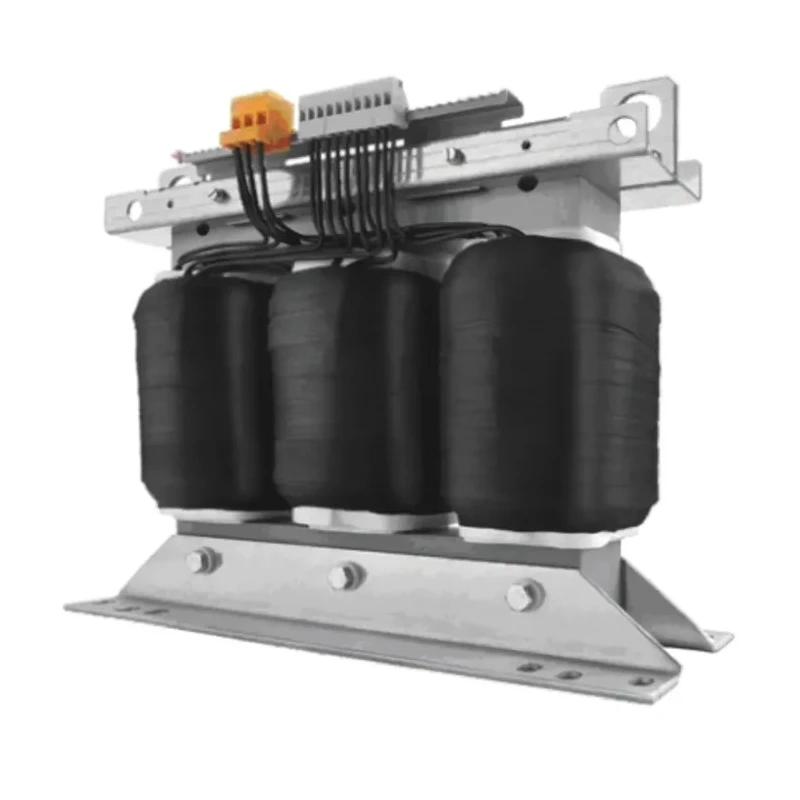

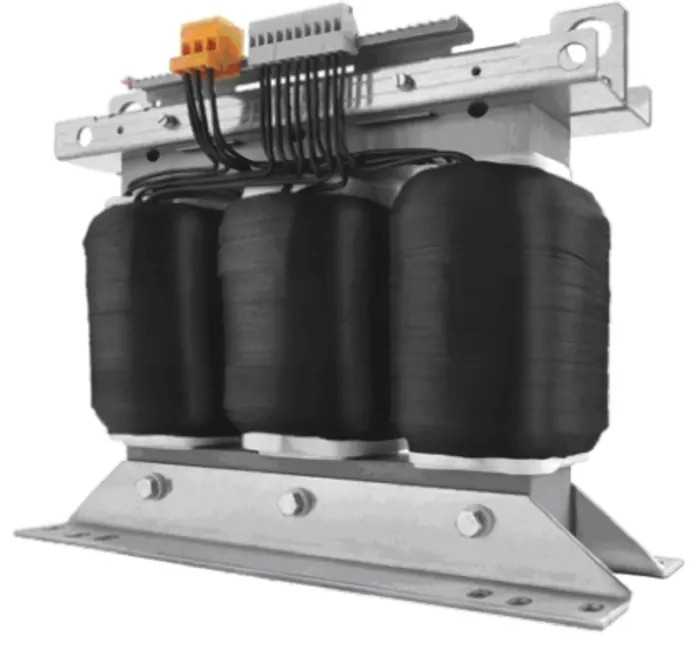

Block 20 kVA Chassis Mount Transformer 3 x 400 V ac, 50Hz/60Hz, cURus TT3 20-4-4
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Block |
| Length | 550mm |
| Model | TT3 20-4-4 |
| Depth | 297mm |
| Gross Weight | 180kg |
| Width | 550mm |
| Series | TT3 |
| Maximum Operating Temperature | 50°C |
| Standards/Approvals | cURus |
| Primary Voltage | 3 x 400 V ac |
| Secondary Voltage | 3 x 400 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| 16kVA 3 Output Chassis Mounting Transformer, 380V ac, 400V ac, 420V acBrand | Block |
Key Features
- Constructed with laminated steel for low heat loss and high efficiency.
- Equipped with mounting holes and integrated lifting eyes for easy installation and handling.
- Features screw terminal connections for secure electrical isolation.
- Designed to operate up to a maximum temperature of 50°C for reliability.
- Meets IEC 61558-2-4 and DIN EN 61558-2-4 standards with cURus approvals.
- Robust vacuum impregnation process enhances durability and performance.
- Weighs 180 kg, ensuring sturdy construction suitable for industrial use.
Product Description
Block TT3 20-4-4 chassis mount transformer is a high-efficiency, 20 kVA transformer designed for three-phase 3 x 400 V AC input and output voltages, suitable for industrial and commercial electrical applications requiring safe electrical isolation and stable power supply.
This model is built with laminated steel and uses the BLOCKIMPEX vacuum impregnation technique to minimize heat loss and maximize operational efficiency, allowing it to operate safely at temperatures up to 50°C.
Equipped with easy-to-install mounting holes and integrated lifting eyes, the chassis mount transformer ensures convenient handling and installation to support various power systems. Screw terminal connections provide reliable electrical isolation.
The transformer adheres to IEC 61558-2-4 and DIN EN 61558-2-4 standards and holds cURus approvals (UL 1561 and CSA 22.2), ensuring compliance with international safety and quality guidelines.
20 kVA power rating suitable for medium power industrial applications. Primary and secondary voltage: 3 x 400 V AC, including ±5% tappings for flexibility. Dimensions: 550 mm length, 550 mm width, 297 mm depth. Weight: 180 kg for stable and robust installation.
Maximum operating temperature: 50°C, suited for typical industrial ambient conditions. Operating frequency range: 50Hz to 60Hz for global compatibility. Manufactured in Germany, this transformer supports industrial, manufacturing, and power distribution applications where reliable voltage conversion and isolation are critical.
Discover more high-quality chassis mounting Transformers at EnvMart for your power supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 20 kVA, making it suitable for medium power industrial applications.
The transformer operates with a primary and secondary voltage of 3 x 400 V AC.
It is designed to operate safely at a maximum temperature of 50°C.
The dimensions are 550 mm in length, 550 mm in width, and 297 mm in depth.
It operates within a frequency range of 50Hz to 60Hz, allowing for global compatibility.
It meets IEC 61558-2-4 and DIN EN 61558-2-4 standards and holds cURus approvals.
It is equipped with mounting holes and integrated lifting eyes for easy installation and handling.
It features screw terminal connections that provide secure electrical isolation.
The transformer weighs 180 kg, ensuring a sturdy construction suitable for industrial use.
This transformer is manufactured in Germany.
It utilizes the BLOCKIMPEX vacuum impregnation process to minimize heat loss and maximize operational efficiency.
