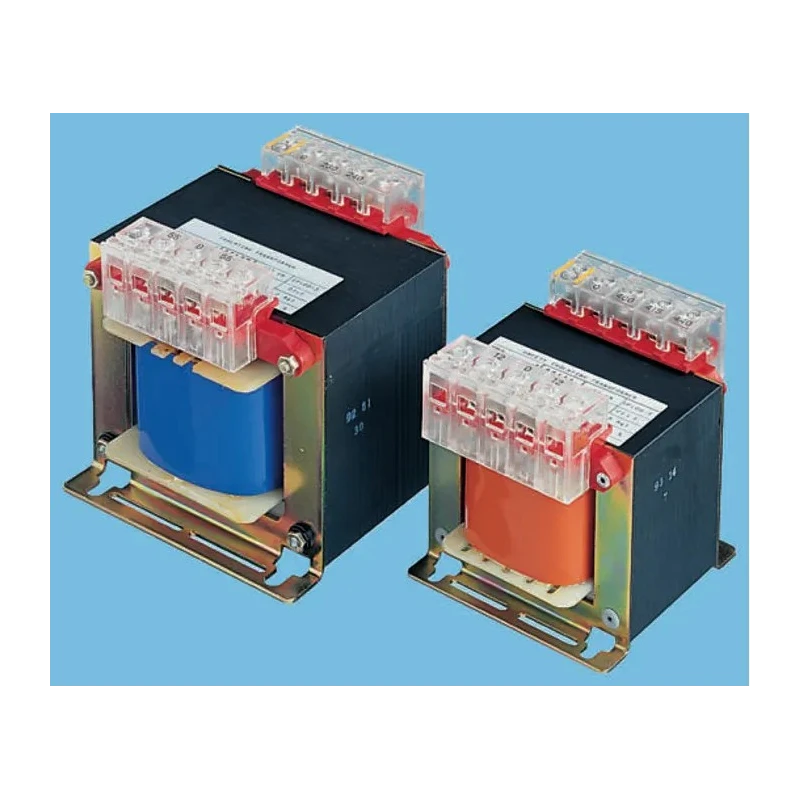

Legrand 2 Output 630 VA Chassis Mount Transformer 230 to 400 V Primary, 12 to 24 V Secondary 0 428 47

Legrand 0 428 47 chassis mount transformer delivers 630 VA power capacity with dual outputs ranging from 12 to 24 V secondary voltage and a primary voltage between 230 and 400 V. This compact transformer is designed specifically for control panel applications where space optimization and reliable voltage transformation are critical.

Featuring an insulated winding type, the transformer ensures electrical isolation and safety for sensitive electronic components. It supports an operating frequency range from 50 Hz to 60 Hz, making it suitable for various industrial power networks.

The construction includes a chassis mount design with physical dimensions measuring 126 mm in length, 141 mm in width, and 126 mm in depth. It weighs 8 kilograms, providing a sturdy and robust profile ideal for fixed installations. Fixing holes of 11 mm diameter allow secure mounting onto panels or other frameworks.

Certified under multiple international standards such as IEC/EN 61558-2-2, IEC/EN 61558-2-4, IEC/EN 61558-2-6, EN 61131-2, EN 60204-1, EN 60439-1, UL506, and CSA C22-2-N°66, this Legrand transformer guarantees safety, reliability, and compliance with regulatory requirements for industrial and commercial environments.

The unit is optimized for control panel power supply transformation needs, offering dual output voltages to cater to different equipment requirements. The 35°C maximum operating temperature rating ensures operational stability under standard industrial conditions.

Manufactured in France, this transformer embodies rigorous quality and manufacturing standards. It is suitable for applications in industrial manufacturing, automation, power supply units, HVAC systems, and electrical distribution setups where reliable voltage conversion is essential.

Dual output with 12 to 24 V secondary voltage capability. Compact chassis mount transformer with secure fixing. Insulated winding type for enhanced electrical safety. Wide operating frequency range of 50 to 60 Hz. Certified by international safety standards ensuring compliance.

Robust 8 kg build for stable and durable installations. Designed for control panel and industrial power applications. Maximum rated temperature of 35°C for consistent operation. Manufactured in France guaranteeing quality craftsmanship.

Complies with IEC and UL requirements for global acceptance. Explore more Transformers and electrical components available at EnvMart for your industrial and commercial needs.
