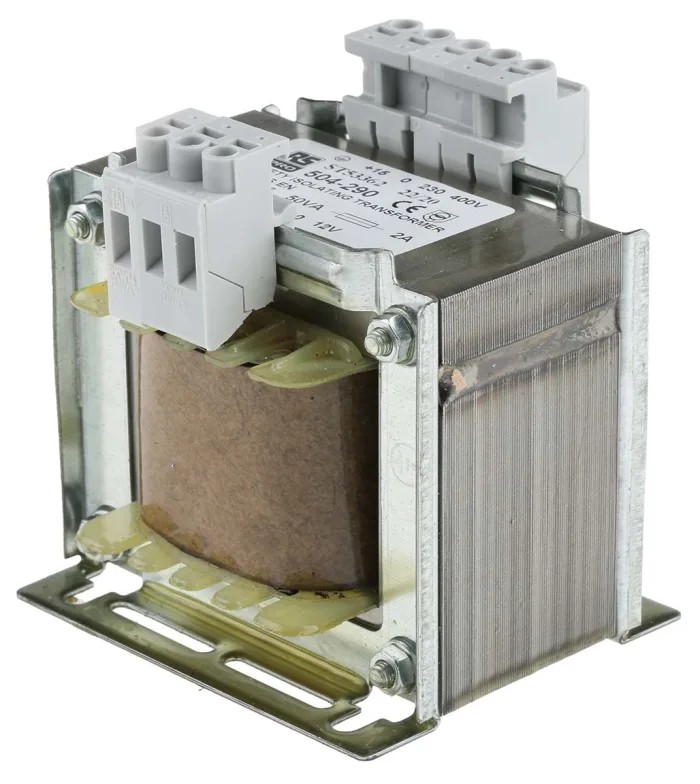

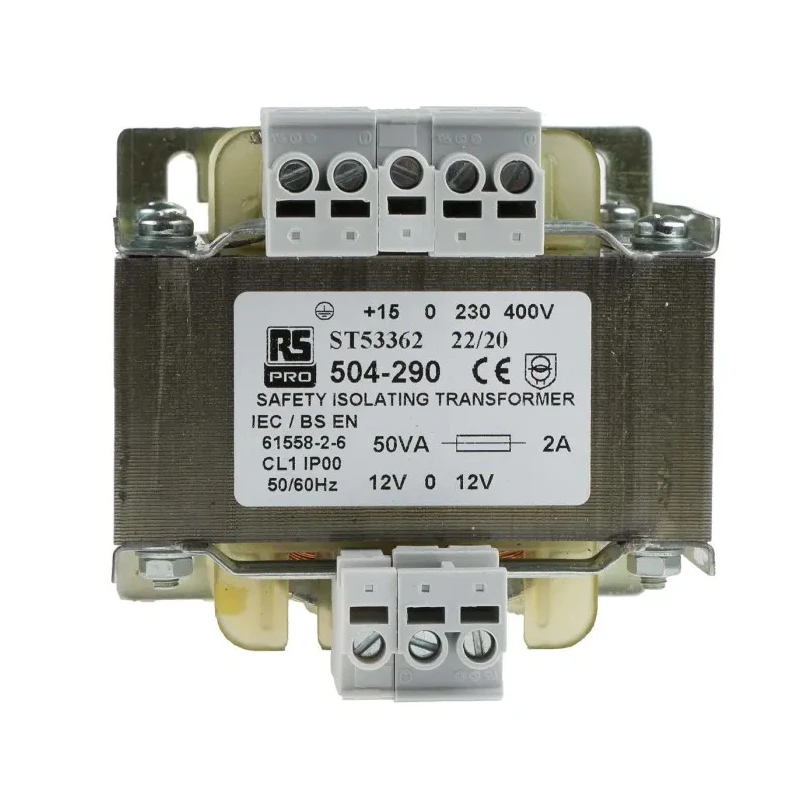

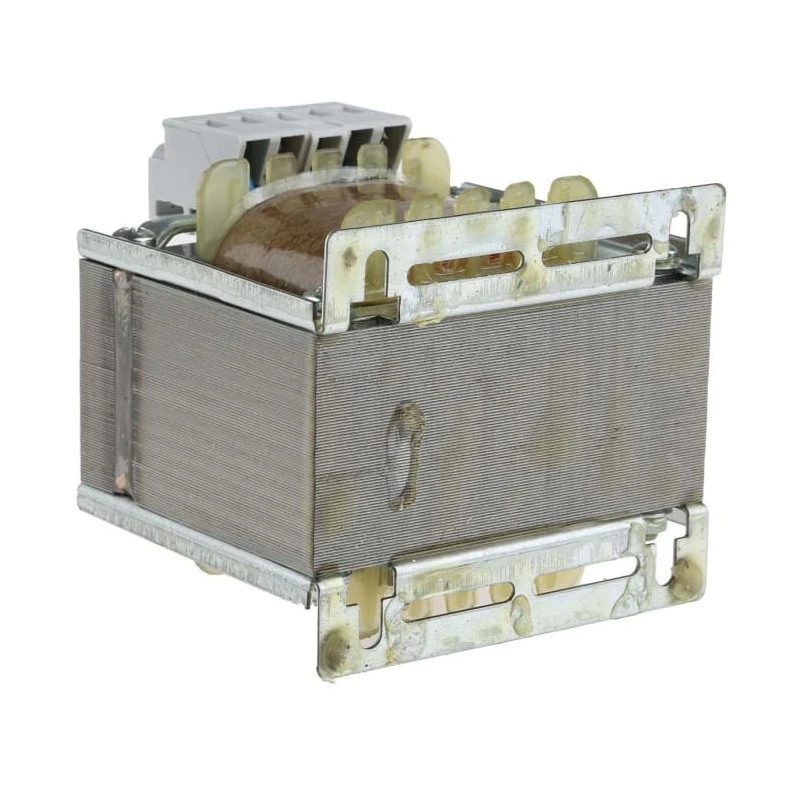

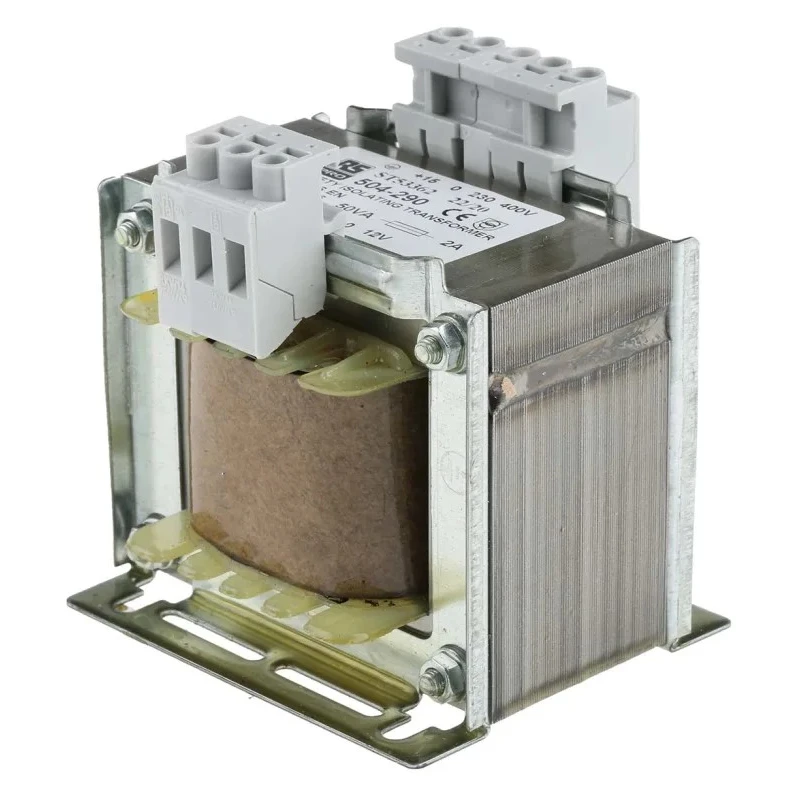

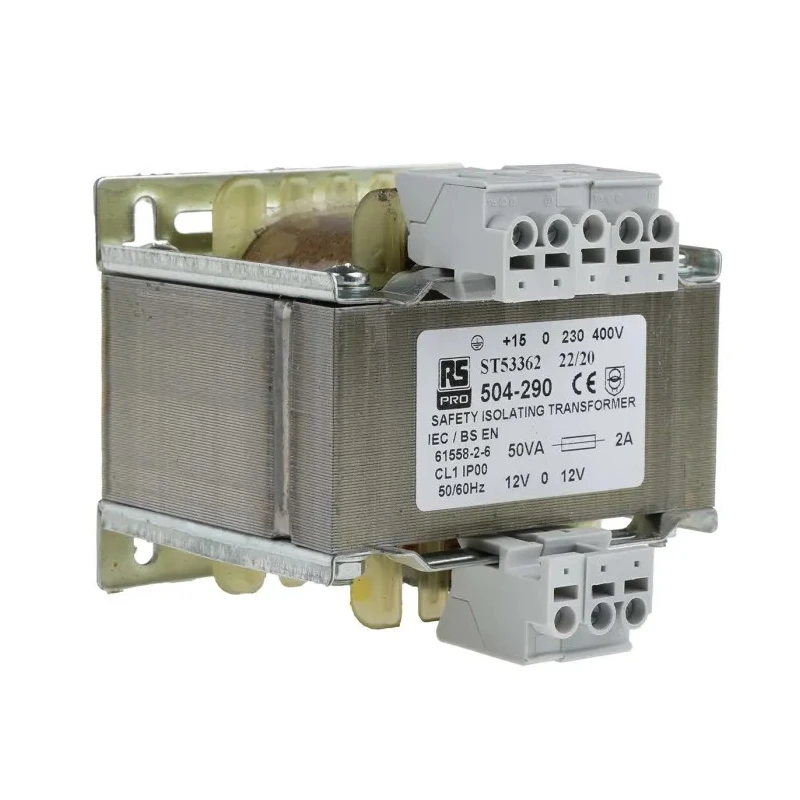

RS PRO 50 VA 1 Output Isolation Transformer, Primary +15-0-230-400V AC, Secondary 12-0-12V AC, IEC61558-2-6 504-290
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 84mm |
| Model | 504-290 |
| Depth | 91mm |
| Gross Weight | 1.9kg |
| Width | 84mm |
| Maximum Operating Temperature | 130°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Standards/Approvals | IEC61558-2-6 |
| Fixing Hole Diameter | 4.5mm |
| Primary Voltage | + 15 - 0 - 230 - 400V ac |
| Secondary Voltage | 12 - 0 - 12V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
Key Features
- Galvanic isolation protects connected devices by preventing DC passage between windings.
- Designed for flexible input with dual standard primary winding and +15 V tap.
- Earth terminal and center tapped secondary windings enhance safety and reliability.
- Varnish impregnation ensures protection against humidity and rust.
- Fully shrouded cage clamp terminals with clear voltage markings enable easy installation.
- Low noise laminations contribute to exceptional transformer performance.
- Rated for operation between -30°C and 130°C with frequency range of 50 to 60 Hz.
- Compact dimensions of 84mm length, 84mm width, and 91mm depth facilitate chassis mounting.
Product Description
RS PRO 504-290 is a high-quality 50 VA single output isolation transformer designed for chassis mounting applications. Featuring a primary voltage configuration of +15-0-230-400V AC and a secondary voltage of ±12-0-12V AC, it ensures galvanic isolation to safeguard connected devices by preventing DC current flow between windings. This transformer complies with IEC61558-2-6 standards, guaranteeing safety and performance.
Constructed with varnish impregnated laminations, it offers excellent protection against humidity and rust, maintaining long-term durability. The dual standard primary winding with a +15 V tap provides input flexibility for various equipment setups. The earth terminal and center tapped secondary windings enhance operational safety.
Installation is simplified with fully shrouded cage clamp terminals clearly marked with voltage identifiers. The transformer operates efficiently within a temperature range of -30°C to 130°C and frequency range of 50 to 60 Hz. Its compact dimensions of 84mm length, 84mm width, and 91mm depth make it ideal for chassis mounting in diverse industrial and medical environments.
This isolation transformer is suitable for applications demanding reliable galvanic separation, such as medical instrumentation, power device testing, and general control circuits that require low noise and high safety standards.
Galvanic isolation prevents DC current passing between primary and secondary circuits. Dual standard primary winding with +15 V tap provides input voltage flexibility. Center tapped secondary windings and earth terminal ensure enhanced safety.
Varnish impregnation protects against humidity and corrosion. Fully shrouded cage clamp terminals with clear voltage markings assist in installation. Complies with IEC61558-2-6 safety and performance standards. Operational temperature range from -30°C to 130°C with frequency between 50 and 60 Hz.
Compact chassis mount design with dimensions 84x84x91 mm. Applications include medical devices, testing equipment, and control circuits.
RS PRO products are tested extensively to meet industry standards, providing reliable and efficient solutions for professional use. Explore the full range of Transformers at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this model is +15-0-230-400V AC.
The secondary voltage output is ±12-0-12V AC.
It has compact dimensions of 84mm in length, 84mm in width, and 91mm in depth.
The maximum operating temperature is 130°C.
It operates efficiently within a frequency range of 50 to 60 Hz.
Yes, it complies with IEC61558-2-6 safety and performance standards.
It features an earth terminal and center tapped secondary windings for enhanced safety.
Varnish impregnation protects the transformer against humidity and rust, ensuring long-term durability.
The gross weight of this transformer is 1.9 kg.
It has fully shrouded cage clamp terminals with clear voltage markings for easy installation.
It is suitable for applications such as medical instrumentation, power device testing, and general control circuits.
The minimum operating temperature is -30°C.
