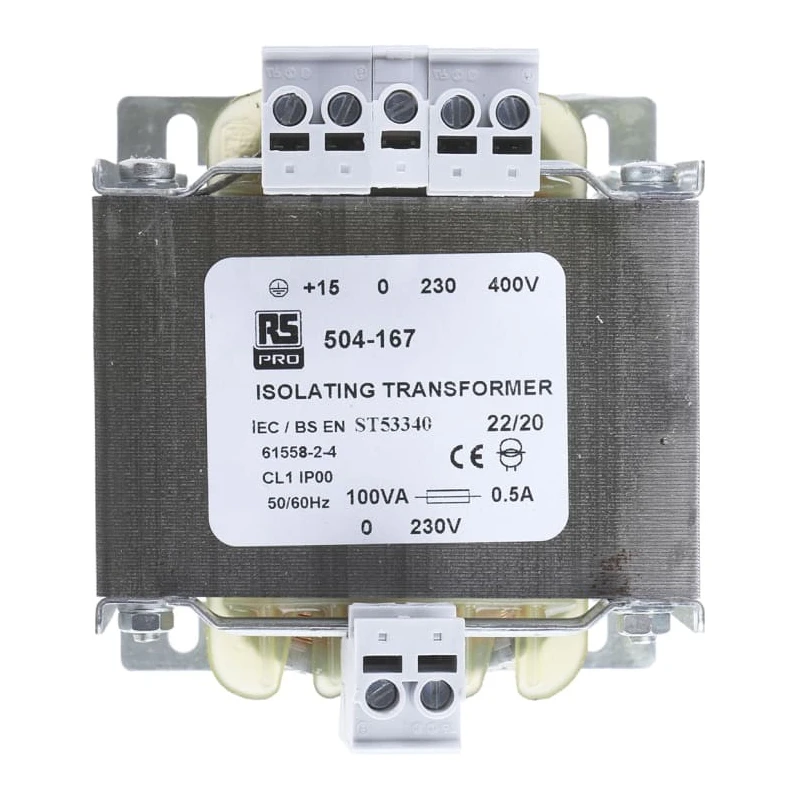

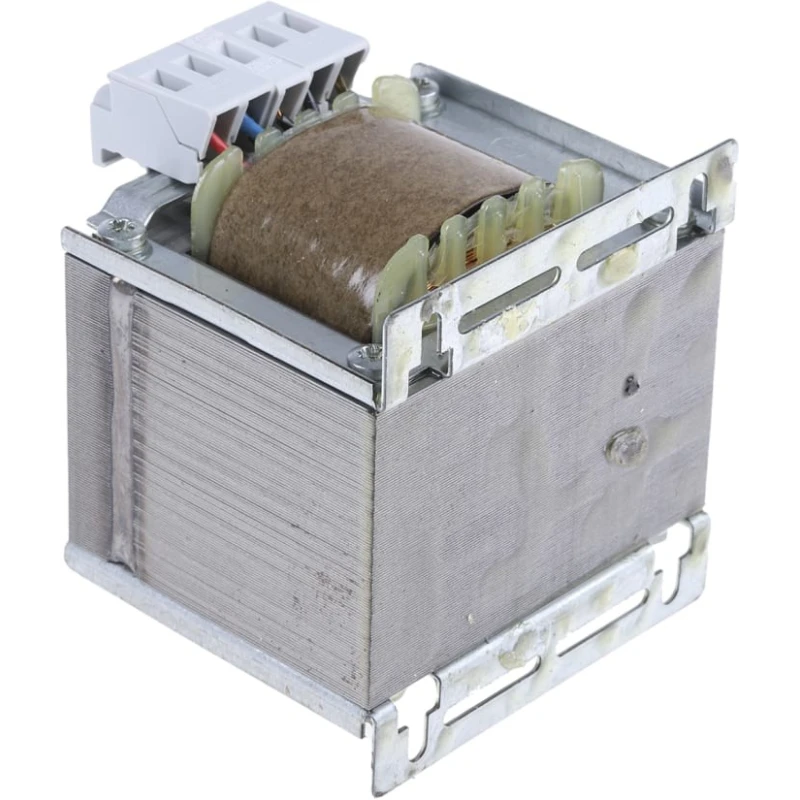

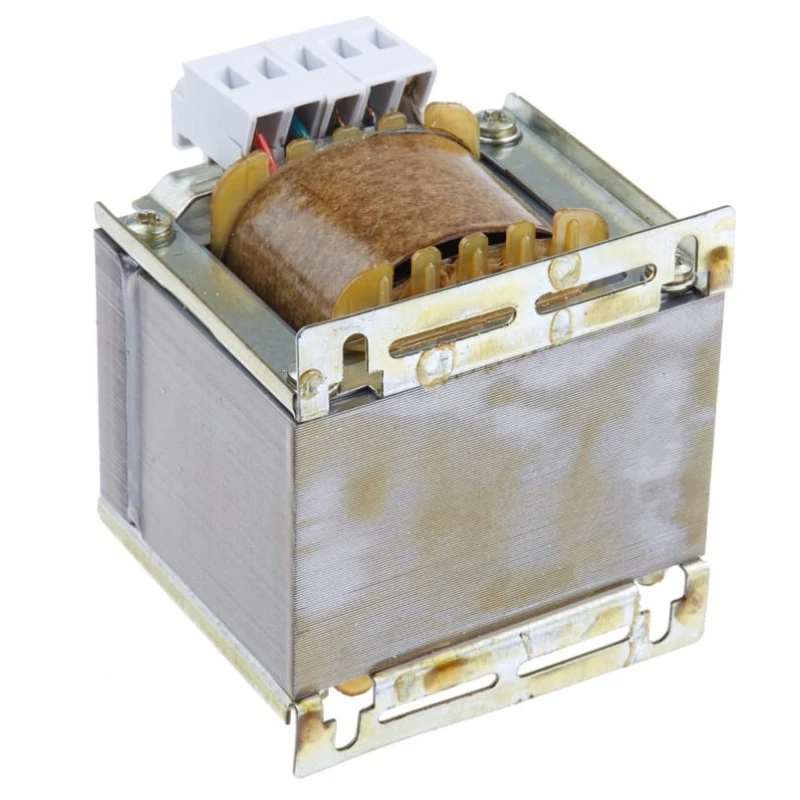

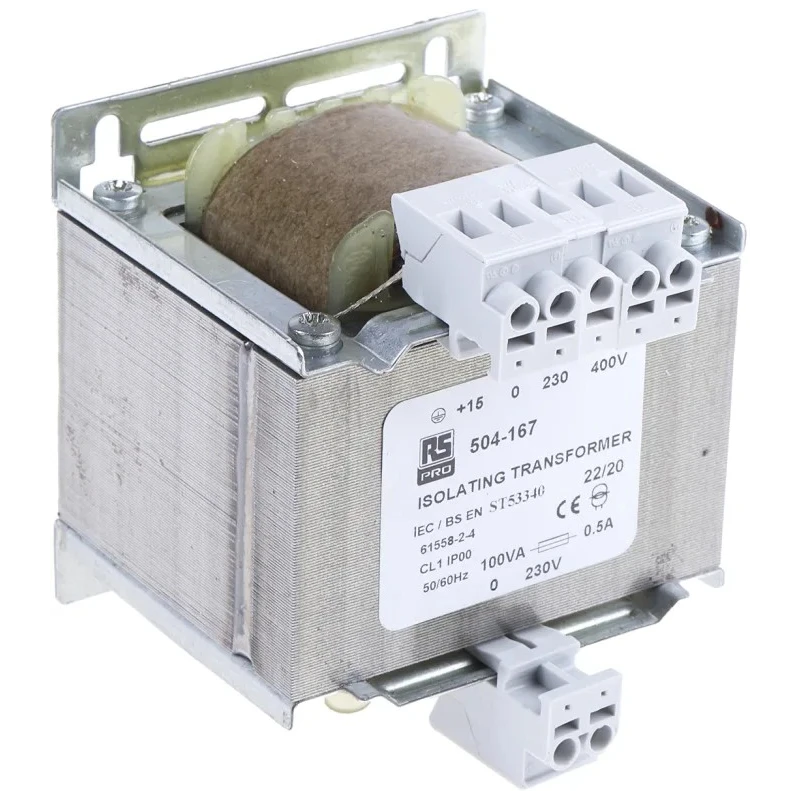

RS PRO Isolation Transformer 1 Output 100 VA, Primary Voltage +15-0-230-400 V AC, Secondary Voltage 0-230 V AC 504-167

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Isolation Transformer 1 Output 100 VA, Primary Voltage +15-0-230-400 V AC, Secondary Voltage 0-230 V AC 504-167

Name: RS PRO Isolation Transformer 1 Output 100 VA, Primary Voltage +15-0-230-400 V AC, Secondary Voltage 0-230 V AC 504-167
Brand: RS PRO
SKU: 122350
Price: 171.65 USD
Availability: InStock



Category Transformers Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	84mm
Model	504-167
Depth	91mm
Gross Weight	2.5kg
Width	97mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Standards/Approvals	IEC61558-2-4
Fixing Hole Diameter	4.5mm
Primary Voltage	+ 15 - 0 - 230 - 400V ac
Secondary Voltage	0 - 230V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
RS PRO 1 Output 200 VA Isolation Transformer, 0 - 230V ac, IEC61558-2-4Brand	RS PRO

Key Features

Ensures galvanic isolation between input and output for safety.
Constructed with varnish impregnation for humidity and rust protection.
Equipped with earth terminal and dual secondary center tapped outputs.
Rated for operating temperature from -30°C to 130°C.
Complies with IEC61558-2-4 safety and electrical standards.
Compact chassis mounting design with fixing hole diameter of 4.5 mm.
Reliable for medical, testing, and control circuit applications.
Provides high efficiency with low regulation and low noise.

Product Description

RS PRO model 504-167 is a 1 output isolation transformer rated at 100 VA, designed for industrial and laboratory applications requiring secure galvanic isolation between the AC mains and connected equipment. The primary voltage supports dual standard inputs of +15-0-230 and 400 V AC, while delivering a stable 0-230 V AC on the secondary output. This transformer conforms to IEC61558-2-4 standards, guaranteeing compliance with safety and operational requirements.

The transformer is ideal for applications such as medical equipment isolation, testing power devices, and control circuit protection. Its construction includes varnish impregnation providing excellent resistance to humidity and rust, ensuring longevity in demanding environments. The transformer features a compact chassis mounting design with fixing holes of 4.5 mm diameter for easy installation.

Additional technical benefits include a dual secondary that is center tapped with an earth terminal connection, assuring electrical safety and noise reduction. It operates reliably within a temperature range of -30°C to 130°C and frequencies from 50 Hz to 60 Hz.

Galvanic isolation between primary and secondary circuits prevents DC flow across windings. High-quality insulation and construction minimize noise transmission. Varnish impregnation enhances protection against humidity and corrosion.

Convenient fixing design with mounting holes for chassis installation. Dual standard primary voltage offers flexibility in power input sources. Robust performance with low voltage regulation and high efficiency. Clear voltage markings on shrouded cage clamp terminals facilitate safe wiring.

Suitable for use in medical, industrial, and test instrumentation applications. Manufactured in Poland with consistent quality standards.

This RS PRO isolation transformer provides critical safety and reliability for electrical isolation requirements in industrial, laboratory, and medical contexts. Browse the Electronics & Electricals > Transformers & Transformer Parts > Chassis Mounting Transformers category for additional related products.
