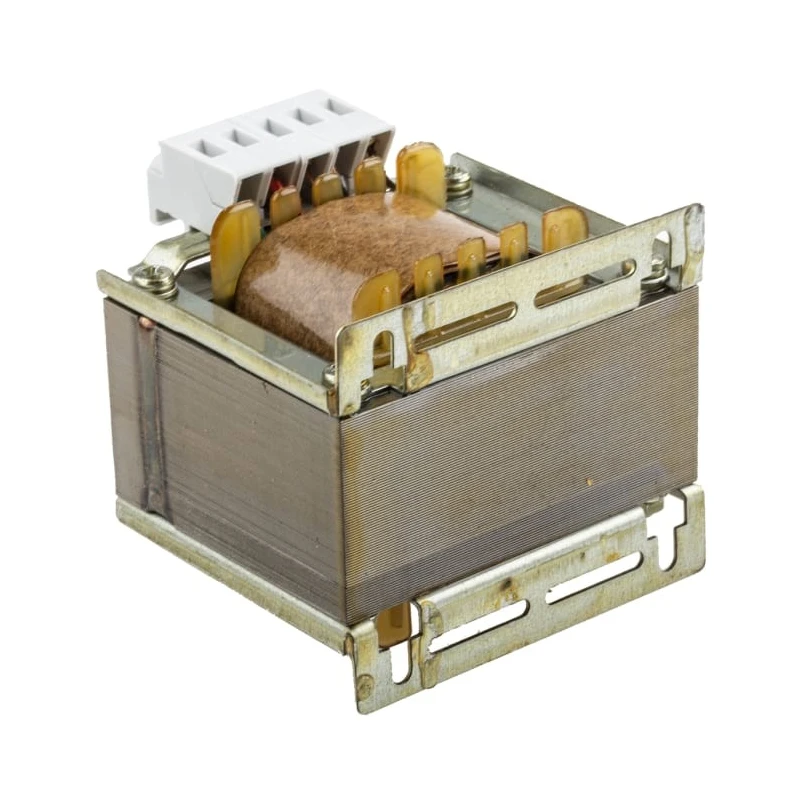

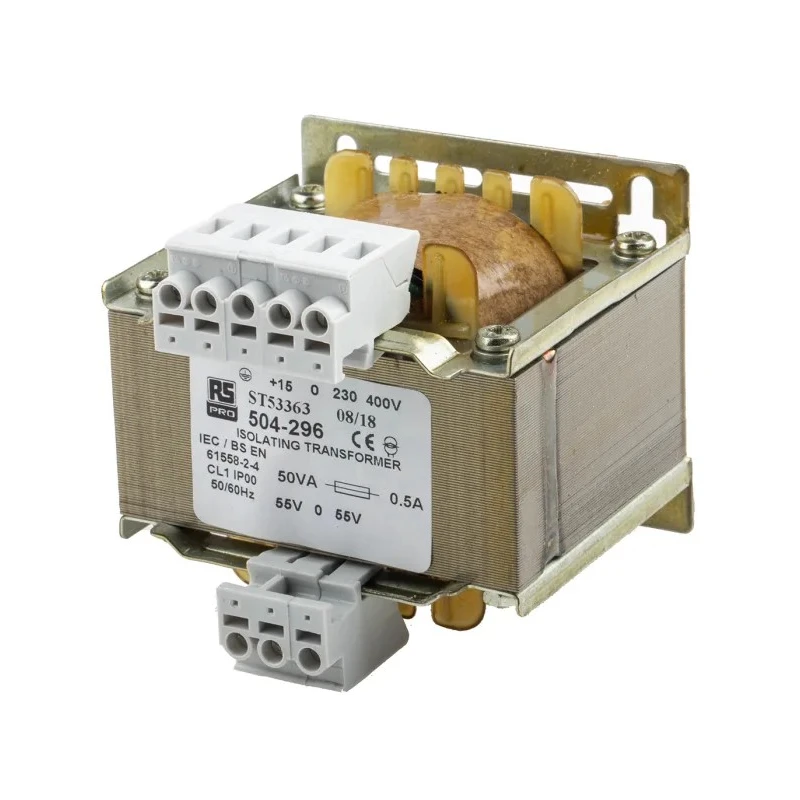

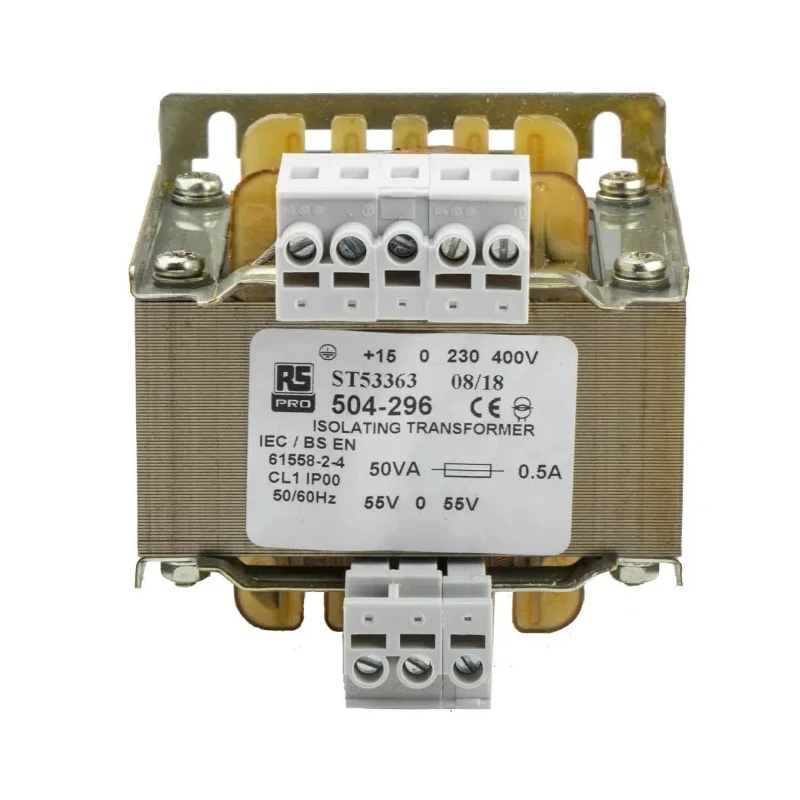

RS PRO Single Phase Chassis Mount 1 Output 50 VA Isolation Transformer 55 - 0 - 55V AC IEC61558-2-4 504-296

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Single Phase Chassis Mount 1 Output 50 VA Isolation Transformer 55 - 0 - 55V AC IEC61558-2-4 504-296

Name: RS PRO Single Phase Chassis Mount 1 Output 50 VA Isolation Transformer 55 - 0 - 55V AC IEC61558-2-4 504-296
Brand: RS PRO
SKU: 122361
Price: 126.11 USD
Availability: InStock



Category Transformers Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	84mm
Model	504-296
Depth	91mm
Gross Weight	1.9kg
Width	84mm
Maximum Operating Temperature	130°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Standards/Approvals	IEC61558-2-4
Fixing Hole Diameter	4.5mm
Primary Voltage	+ 15 - 0 - 230 - 400V ac
Secondary Voltage	55 - 0 - 55V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Provides electrical isolation with a high efficiency, low regulation design.
Features a primary winding of 0-230/400V AC (+15V tap) and a secondary output of 55-0-55V AC.
Includes fully shrouded screw terminal connections and an earth terminal for safety.
Constructed with low noise laminations and fully varnish impregnated for durability.
Rated for operation from -30°C to 130°C with a frequency range of 50 to 60 Hz.
Compact chassis mount frame measuring 84mm x 84mm x 91mm (LxWxD).
Certified to IEC/BS/EN 61558-1 and IEC/BS/EN 61558-2-4 standards for safety and quality.

Product Description

RS PRO 504-296 is a high-quality, single phase chassis mount isolation transformer with a power rating of 50 VA and secondary voltage of 55-0-55V AC, compliant with IEC61558-2-4 standards. This transformer is designed for control circuits and general purpose applications in industrial, laboratory, and commercial environments requiring electrical isolation and stable voltage output.

The transformer features a primary voltage configuration of +15 - 0 - 230 - 400V AC with a centre tapped secondary output providing a dual 55V AC supply. It is built with fully shrouded screw terminals, low noise laminations, and full varnish impregnation to ensure durability and long-term reliability under demanding operating conditions ranging from -30°C to 130°C.

With a compact chassis frame mount design, fixing hole diameter of 4.5mm, and dimensions of 84mm (length) x 84mm (width) x 91mm (depth), it can be effectively mounted in electrical enclosures and control panels. The transformer is suitable for multiple industrial applications including medical devices, testing equipment, and power device isolation.

Electrical isolation with low regulation for efficient operation. Primary winding supports multi-voltage input options for versatility. Centre tapped dual secondary for balanced output. Fully shrouded terminals enhance safety.

Low noise laminations reduce electromagnetic interference. Extensively tested for electrical and flash standards compliance. Varnish impregnated for protection against moisture and dust.

This RS PRO transformer offers a dependable solution in critical industrial and laboratory power supply applications. It aligns with various international standards ensuring quality and safety. Available with assured quality from RS PRO, a trusted brand in professional electronic components.
