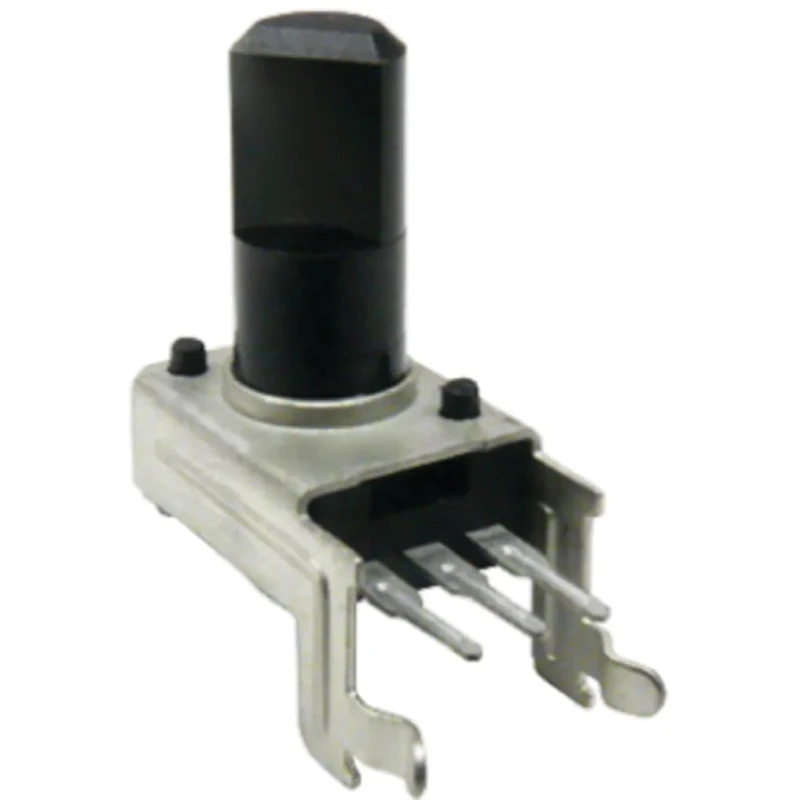

Bourns 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft PEC12R-2225F-N0024

Bourns PEC12R-2225F-N0024 is a 24 pulses per revolution mechanical rotary encoder with an incremental encoder reading and digital square wave output signals. It features a 6 mm flat shaft and 15 mm shaft length, designed for through hole mounting and surface mount termination style for PCB installation.

This encoder series PEC12R offers a compact 12 mm diameter design suitable for multiple industrial and electronic applications including audio, musical instruments, consumer electronics, and communication equipment. It operates up to a maximum speed of 100 rpm with a current rating of 10 mA, ensuring reliable and precise rotational position feedback.

The product adheres to RoHS standards indicating environmentally conscious manufacturing. Its not indexed output supports various control systems requiring incremental feedback. Incremental encoder with 24 ppr digital square wave output.

Through hole mount type with surface mount termination. Maximum operating speed of 100 rpm. Flat shaft style with 6 mm diameter and 15 mm length. Complies with RoHS environmental standards. 10 mA current rating for efficient power consumption.

Suitable for audio-visual and communications equipment. Compact 12 mm encoder size for space saving. Non-indexed output suitable for many applications. Made in China with quality manufacturing.

Applications include level control, tuning, and timer settings in audio-visual equipment, consumer electric appliances, radios, musical instruments, and communication devices. This mechanical rotary encoder is engineered for high reliability and compactness, making it ideal for industrial, commercial, and laboratory equipment.
