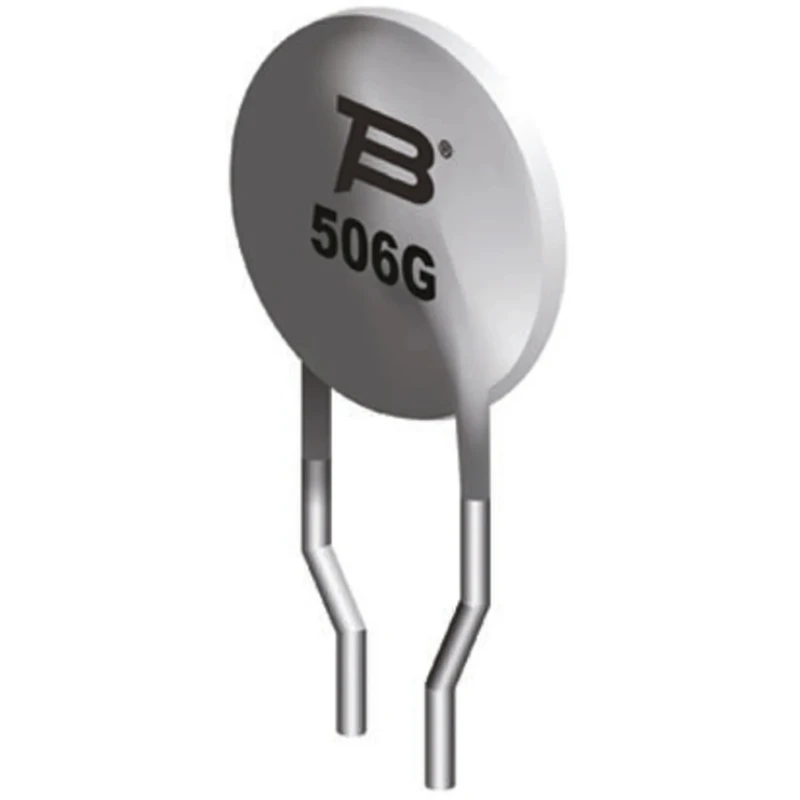

Bourns 0.05 A Resettable Fuse, 220V Radial Leaded CMF-RL50A-0

Free Delivery in India | Lowest Global Shipping Charges

Bourns 0.05 A Resettable Fuse, 220V Radial Leaded CMF-RL50A-0

Name: Bourns 0.05 A Resettable Fuse, 220V Radial Leaded CMF-RL50A-0
Brand: BOURNS
SKU: 351548
Price: 0.75 USD
Availability: InStock



Category Resettable Fuses Brand BOURNS Condition New

Specifications

Country of Origin	China
Voltage	220V
Brand	Bourns
Height	13mm
Length	7.5mm
Model	CMF-RL50A-0
Width	5.6mm
Series	CMF-RL
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-40°C
Trip Current	100mA
Standards/Approvals	RoHS, TUV Approved, UL, CSA
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	692-6771PBrand: BournsManufacturers Part No.: CMF-RL50A-0
Lead Diameter	0.6mm
Time to Trip	0.1s
Hold Current	0.05A
Minimum Resistance	40Ω
Maximum Resistance	60Ω
Lead Orientation	Radial

Key Features

The fuse features a radial lead orientation for easy PCB mounting.
It operates at 220 volts with a hold current of 0.05 amperes.
The trip current is 100 mA with a fast trip time of 0.1 seconds.
Compact dimensions include length of 7.5 mm, height of 13 mm, and width of 5.6 mm.
Operating temperature range spans from -40°C to 60°C ensuring wide environmental suitability.
Minimum resistance ranges from 40 ohms to a maximum of 60 ohms.
Complies with RoHS, TUV, UL, and CSA certifications for safety and reliability.
Lead diameter measures 0.6 mm, enhancing secure electrical connections.

Product Description

Bourns CMF-RL50A-0 Resettable Fuse is a compact, radial leaded protection device rated at 0.05 amperes and 220 volts. It offers rapid switch from a low resistance state to a high resistance to protect circuits against overcurrent.

This resettable fuse features automatic resetting capability, allowing it to operate maintenance-free for thousands of cycles. It is designed to provide secondary overcurrent protection in customer premise equipment, central offices, access equipment, and various electronic devices.

The device dimensions measure 7.5 mm in length, 13 mm in height, and 5.6 mm in width, with a 0.6 mm lead diameter for secure PCB mounting. Its electrical characteristics include a trip current of 100 mA and a hold current of 0.05 A with a rapid trip time of 0.1 seconds, ensuring quick response to fault conditions.

The fuse functions reliably across a broad temperature range from -40°C to 60°C and has a resistance range of 40 to 60 ohms. It is RoHS compliant and approved by TUV, UL, and CSA standards.

Main applications include protection for security systems, power supplies, transformers, automotive, medical equipment, instrumentation, control systems, computers, and telecommunication devices.

The fuse features a radial lead orientation for easy PCB mounting. Automatic resetting capability eliminates the need for replacement after faults. Compact size supports space-constrained electronic designs. Certified by RoHS, TUV, UL, and CSA for assured quality and safety.

Wide operating temperature range for varied industrial environments. Ideal for use in electronic and communication equipment as secondary overcurrent protection. Rapid trip time contributes to circuit safety and longevity.

Maintenance free and cost-effective over fuse holders requiring replacement. Lead diameter of 0.6 mm ensures robust electrical connections.

Choose Bourns Resettable Fuses for reliable, automatic circuit protection in a wide range of industrial, electronic, HVAC, and telecommunication applications. Explore more options in the Circuit Breakers & Fuse category at EnvMart for comprehensive protection solutions.
