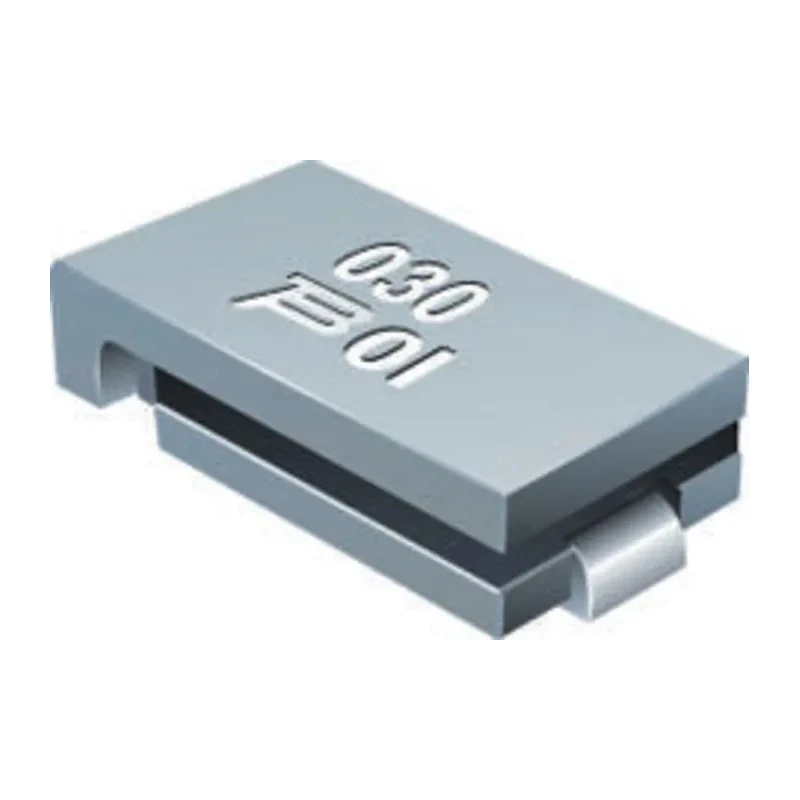

Bourns 2.5 A Resettable Fuse, 15V, Surface Mount, Tin Plated Brass Terminals MF-SM250-2

Bourns MF-SM250-2 is a high-quality 2.5 A resettable fuse rated at 15V, designed specifically for the protection of electrical and electronic circuits. As a surface mount technology component, it incorporates tin plated brass terminals ensuring excellent electrical connectivity and durability.

This resettable fuse automatically transitions from a low resistance state to a high resistance state to prevent damage during overcurrent or short circuit conditions, then resets once the fault condition clears. It operates reliably within a temperature range of -40°C to 85°C and dissipates up to 1.9 watts of power.

The product dimensions are compact, measuring 9.5 mm in length, 6.71 mm in width, and 3 mm in height, allowing integration in space-constrained electronic assemblies. Its trip current is rated at 5 A, with a hold current of 2.5 A, and it trips within 25 seconds to protect sensitive components.

Bourns MF-SM250-2 complies with RoHS directives, ensuring compliance with environmental and safety standards. It is packaged on reels according to the EIA 481-2 standard, facilitating efficient use in automated manufacturing lines.

Applications for this resettable fuse include use in security systems, power supplies and transformers, automotive and medical devices, instrumentation and control systems, computers and peripherals, as well as audio visual and telecommunications equipment.

This resettable fuse provides automatic reset and protection against excessive current. Features tin plated brass terminals to ensure reliable electrical connections. Compact surface mount design with dimensions: 9.5mm length, 6.71mm width, 3mm height.

Maintains low resistance of 0.024Ω minimum and maximum resistance of 85mΩ. Operates within a wide temperature range from -40°C to 85°C with 1.9W power dissipation. Trip current rated at 5A, hold current of 2.5A, trips within 25 seconds during faults.

RoHS compliant to ensure safety and environmental standards. Packaged on reels per EIA 481-2 standard to support assembly automation. Suitable for a wide variety of industrial, automotive, medical, and telecommunication applications.
