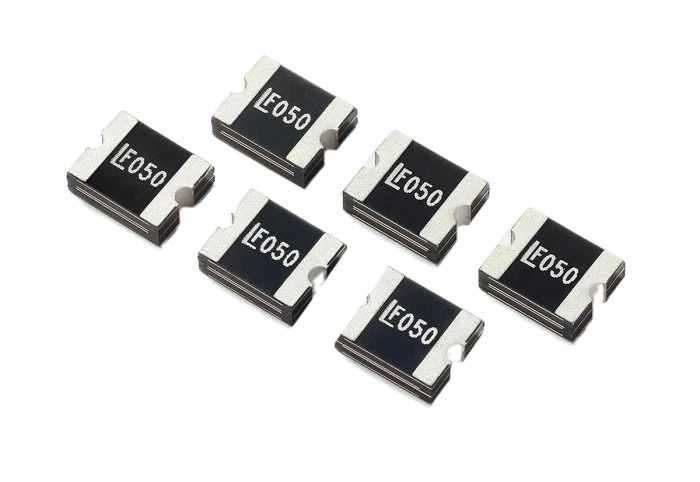

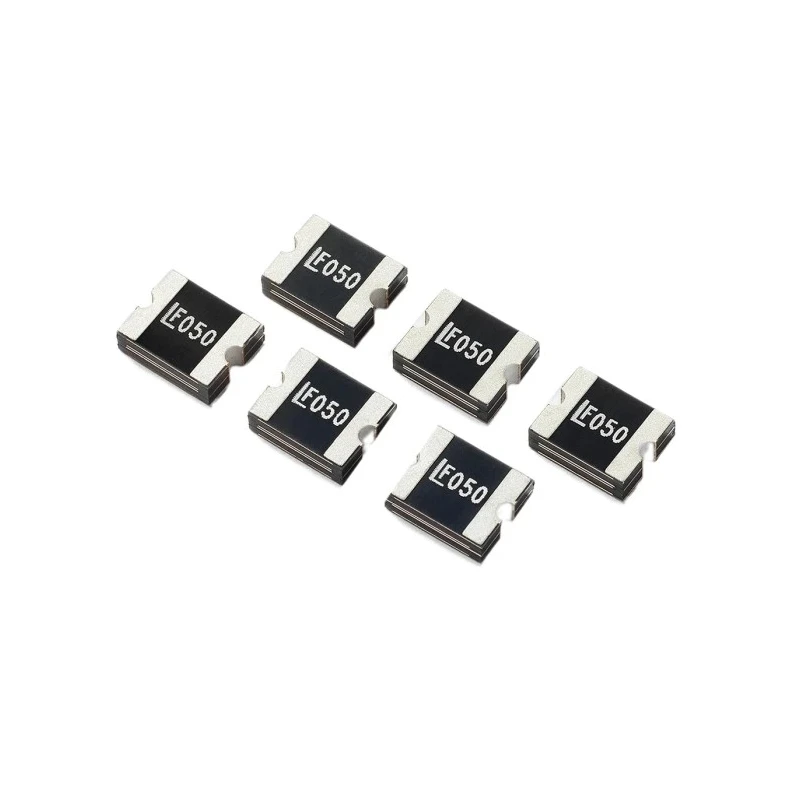

Littelfuse Resettable Fuse 0.55 A Hold Current, 1.1 A Trip Current, 60V DC, Fast Speed, Surface Mount 2016L050MR

Free Delivery in India | Lowest Global Shipping Charges

Littelfuse Resettable Fuse 0.55 A Hold Current, 1.1 A Trip Current, 60V DC, Fast Speed, Surface Mount 2016L050MR

Name: Littelfuse Resettable Fuse 0.55 A Hold Current, 1.1 A Trip Current, 60V DC, Fast Speed, Surface Mount 2016L050MR
Brand: LITTELFUSE
SKU: 385921
Price: 0.54 USD
Availability: InStock



Category Resettable Fuses Brand LITTELFUSE Condition New

Specifications

Country of Origin	India
Voltage	60V dc
Brand	Littelfuse
Height	2mm
Length	5.44mm
Model	2016L050MR
Width	4.43mm
Series	2016L
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Package Size	0.20 x 0.16 in
Trip Current	1.1A
Power Dissipation	1.4W
Terminal Material	Solder Plated Copper
Standards/Approvals	MIL-STD-883, ANSI/J-STD-002, MIL-STD-202, RoHS
Time to Trip	5s
Hold Current	0.55A
Minimum Resistance	0.2Ω
Maximum Resistance	1Ω

Key Features

Provides fast-acting resettable fuse protection for low voltage circuits.
Compact surface mount design measuring 5.44 mm length, 4.43 mm width, and 2 mm height.
Solder plated copper terminals ensure secure and reliable connections.
Operates safely across a temperature range of -40°C to 85°C.
Power dissipation rated at 1.4 W, suitable for telecom and automotive electronics.
Meets standards including MIL-STD-883, ANSI/J-STD-002, MIL-STD-202, and RoHS compliance.
Package size of 0.20 x 0.16 inches optimized for automated assembly.
Ideal for protection of high-value ICs in portable and industrial applications.

Product Description

Littelfuse 2016L050MR Resettable Fuse is engineered to provide dependable overcurrent protection for low voltage DC applications rated at 60 volts. It features a hold current of 0.55 A and a trip current of 1.1 A with a fast trip time of 5 seconds, ensuring rapid response to current surges.

The fuse's compact surface mount package measures 5.44 mm in length, 4.43 mm in width, and 2 mm in height, making it well-suited for space-constrained circuit boards. Its solder plated copper terminals provide excellent electrical connectivity and mechanical durability.

Designed to operate reliably in harsh environments, this fuse withstands temperatures ranging from -40°C to 85°C. Its power dissipation capacity is 1.4 W, which supports efficient heat dissipation during operation.

Standards and certifications include MIL-STD-883, ANSI/J-STD-002, MIL-STD-202, and RoHS compliance, underscoring its quality and environmental safety.

Typical industrial usages include protection of semiconductor devices and critical electronics in telecom equipment, automotive control systems, powered ethernet ports, medical devices, and portable electronic equipment. The surface mount format supports efficient mass production through automated assembly lines.

Fast-acting resettable circuit protection for low voltage DC applications. Compact dimensions suitable for tight PCB layouts. Temperature rating supports a wide range of environments. Complies with major military and industrial standards.

Ideal for telecom, automotive, medical, and portable electronics. Surface mount technology enables high-volume automated manufacturing. Reliable solder plated copper terminals for stable operation. Power dissipation rating ensures effective thermal management.

Choose Littelfuse 2016L050MR for robust protection of sensitive electronic circuits in demanding industrial and commercial environments. Explore related products and more in the Circuit Breakers & Fuse category at EnvMart.
