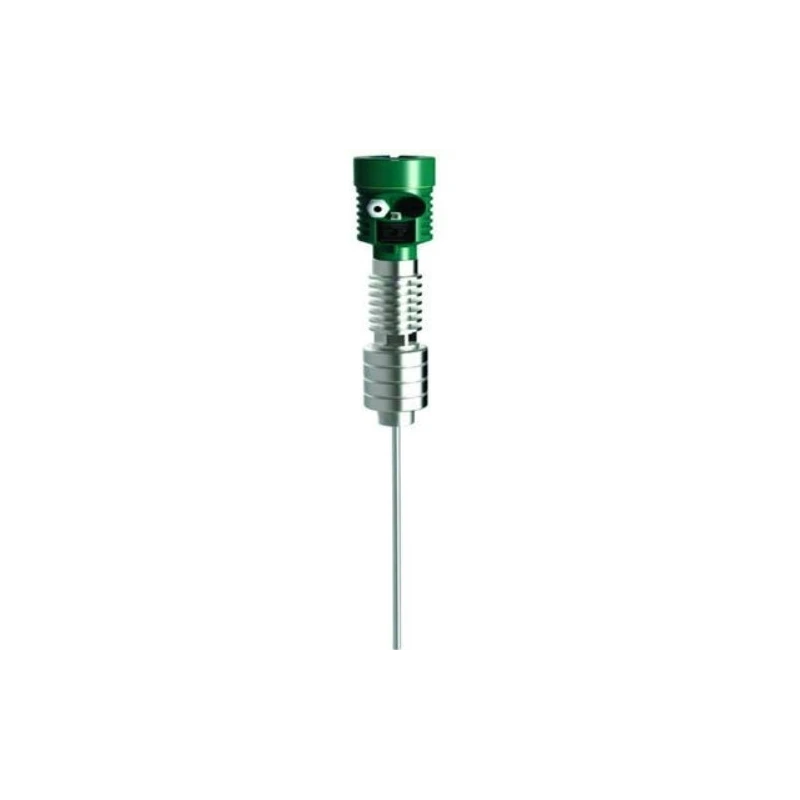

Radar Level Transmitter R-RLT-1BSP- 420-HT-FLP
Specifications
| Repeatability | +-2 MM |
|---|---|
| Accuracy | +-3 MM |
| Measuring range | 6 ML |
| Frequency | -0.1 to +2.0 MPa |
| Brand | Mahalaxmi Instruments |
| Applications | Industrial |
| Operating Temperature Range | -40C to 250C |
| MOC | SS 316 |
| Output signal | 4-20 mA |
| Model | R-RLT-1BSP- 420-HT-FLP |
| Signal Output | 4-20 mA |
| Temperature | -40C to 400C |
| Explosion proof | Ex in IIC T6 Gb |
| Process Temperature | -0.1- 4 MPal |
| Process connection | Thread| Flange |
| Echo Sampling | 55 times/s |
| Responding time | Greater than 0.2 s |
| Enclosure protection grade | IP67 |
| Auxiliary Supply | 24 VDC |
Key Features
- Bulk Quantities Available
Product Description
R-RLT-1 Inch BSP- 420-HT-FLP Radar Level TransmitterWe are offering R-RLT-1 Inch BSP- 420-HT-FLP Radar Level Transmitter to our client.Working Principle:Guided wave radar transmitter works on the principle of time and travel (TDR). Radar wave travels at the velocity of light. The flying time is converted into level signal via the electronic components. The probe emits high-frequency wave pulse which travels along a cable probe or a rod probe. When the wave pulse reaches the medium surface, it will be reflected and received by the receiver, and then the distance signal will be converted into level signals.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this radar level transmitter is 6 ML.
It has an accuracy of ±3 MM.
The output signal is 4-20 mA.
The operating temperature range is from -40°C to 250°C.
The material of construction (MOC) is SS 316.
It has an enclosure protection grade of IP67.
It works on the principle of time and travel (TDR), where radar waves travel at the velocity of light and are reflected from the medium surface to determine the level signal.
It is rated as Ex in IIC T6 Gb for explosion proof applications.
The frequency range is from -0.1 to +2.0 MPa.
The responding time is greater than 0.2 seconds.
It is intended for industrial applications.
It supports both thread and flange process connections.
