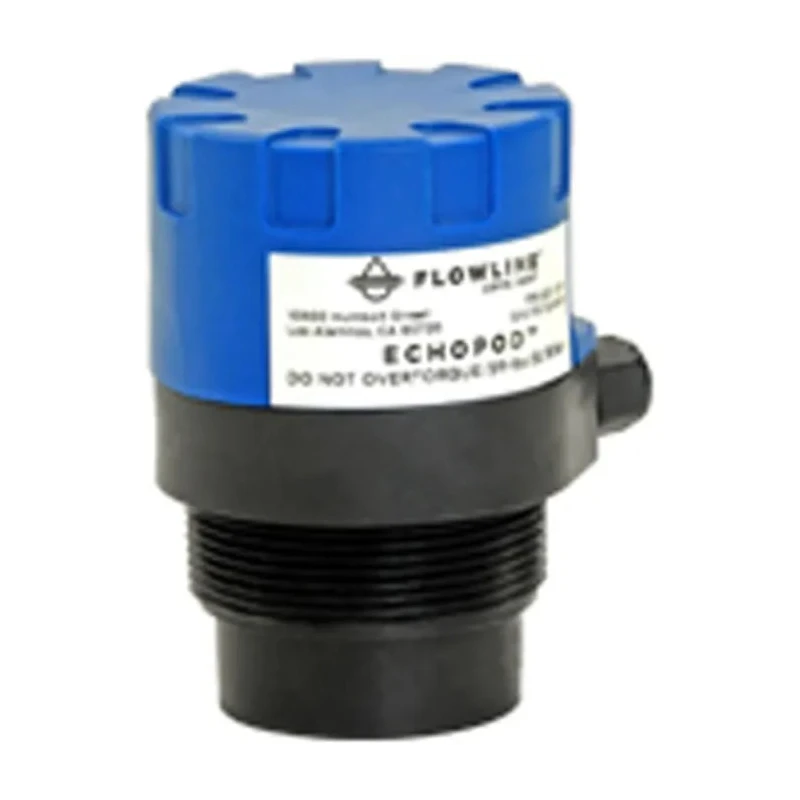

Flowline Reflective Ultrasonic Multi-Function Liquid Level Transmitter Horizontal Mount Polypropylene Housing UG03

Free Delivery in India | Lowest Global Shipping Charges

Flowline Reflective Ultrasonic Multi-Function Liquid Level Transmitter Horizontal Mount Polypropylene Housing UG03

Name: Flowline Reflective Ultrasonic Multi-Function Liquid Level Transmitter Horizontal Mount Polypropylene Housing UG03
Brand: FLOWLINE
SKU: 208612
Price: 1052.04 USD
Availability: InStock



Category Level Transmitter Brand FLOWLINE Condition New

Specifications

Country of Origin	United States
Brand	Flowline
Model	UG03
Cable Length	1.2m
Mount Type	Horizontal, Vertical
Housing Material	Polypropylene
Series	UG03
Maximum Operating Temperature	80°C
Maximum Pressure	2bar
Minimum Operating Temperature	-40°C
Maximum Current	20mA
Device Type	Reflective Ultrasonic Multi-Function Liquid Level Transmitter
Interface Type	USB
Maximum dc Voltage	28V dc
Standards/Approvals	CE, CSA, cUS, UL 61010-1

Key Features

Reflective ultrasonic technology enables non-contact liquid level sensing.
Compact design with narrow 2-inch beam width for limited space installations.
Corrosion-resistant polypropylene housing with PVDF transducer enhances durability.
Programmable four relays for alarms and level control functions.
Wide operating temperature range from -40°C to 80°C with automatic temperature compensation.
Maximum pressure capability of 2 bar and operates up to 28 V DC voltage.
Includes a 1.2-meter cable for flexible installation.
Compatible with Flowline WebCal software for configuration and calibration.

Product Description

Flowline UG03 Reflective Ultrasonic Multi-Function Liquid Level Transmitter, model UG03, is engineered for precise and continuous liquid level measurement in various industrial settings. It supports both horizontal and vertical mounting configurations to fit diverse installation needs.

The device features a durable polypropylene housing paired with a corrosion-resistant PVDF transducer, ensuring long-term reliability even in challenging environments. Employing reflective ultrasonic technology, it offers non-contact sensing with a narrow beam width of 2 inches (5 cm), ideal for tanks and vessels where space is limited.

Configured via USB interface and Flowline WebCal software, the transmitter provides a 4 mA to 20 mA analog signal output alongside four configurable programmable relays. Each relay can be assigned alarm, automatic fill, or empty functions to support automation and process control.

Operating over a temperature range of -40°C to 80°C with automatic temperature compensation, and a maximum pressure rating of 2 bar, this transmitter ensures accurate level readings under varying conditions. The 1.2-meter cable length offers flexibility in installation position.

Typical use cases include industrial process monitoring, laboratory liquid level measurement, HVAC system management, and water treatment applications where precise liquid level control is critical.

Reflective ultrasonic sensing technology enables efficient non-contact level measurement. Compact and corrosion-resistant construction extends service life and reliability. Flexible mounting options accommodate diverse tank designs and orientations.

Programmable relays enhance automation capability with customizable control logic. Wide operating temperature and pressure range for versatile industrial applications.

This product supports critical liquid level sensing requirements for automation and control industries. Explore related sensors and level measurement solutions in our Level Transmitter category.
