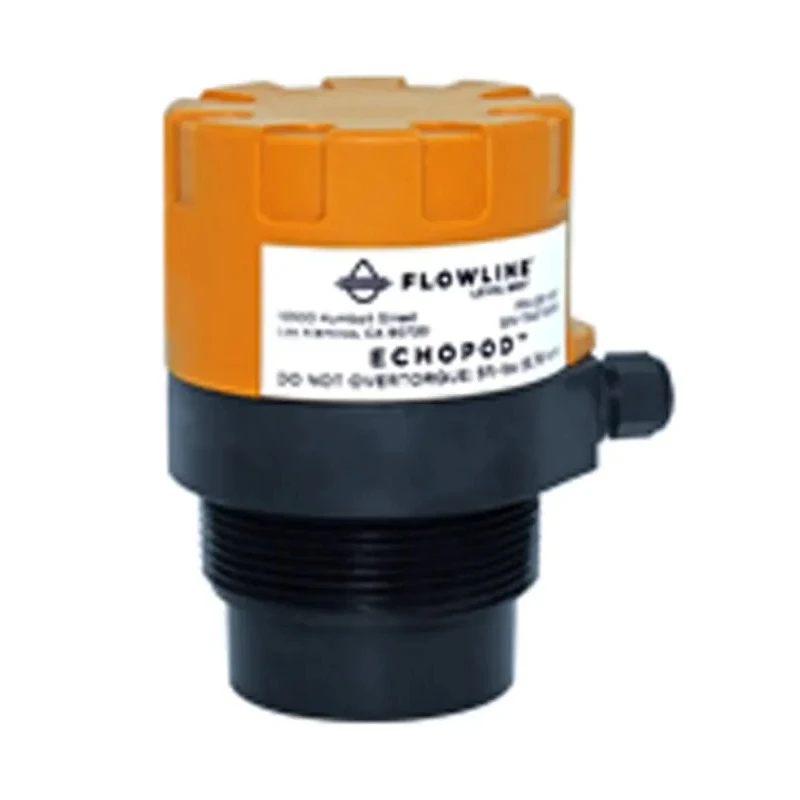

Flowline Reflective Ultrasonic Liquid Level Transmitter USB Interface Polypropylene Housing US01

Free Delivery in India | Lowest Global Shipping Charges

Flowline Reflective Ultrasonic Liquid Level Transmitter USB Interface Polypropylene Housing US01

Name: Flowline Reflective Ultrasonic Liquid Level Transmitter USB Interface Polypropylene Housing US01
Brand: FLOWLINE
SKU: 145962
Price: 1131.85 USD
Availability: InStock



Category Level Transmitter Brand FLOWLINE Condition New

Specifications

Country of Origin	United States
Brand	Flowline
Model	US01
Cable Length	1.2m
Mount Type	Horizontal, Vertical
Housing Material	Polypropylene
Series	US01
Maximum Operating Temperature	80°C
Maximum Pressure	2bar
Minimum Operating Temperature	-40°C
Maximum Current	20mA
Device Type	Reflective Ultrasonic Liquid Level Transmitter
Interface Type	USB
Maximum dc Voltage	28V dc
Standards/Approvals	CE, CSA, cUS

Key Features

Uses Reflective Technology to reliably measure liquid levels even in condensing environments.
Narrow 2 inch (5 cm) beam width suitable for limited space applications.
Short 1.5 inch (3.8 cm) dead band increases usable tank capacity.
PVDF transducer and corrosion-resistant polypropylene enclosure ensure durability.
Supports fail-safe diagnostics with configurable output signals.
Compact IP68 rated Type 6P enclosure ideal for small tanks.
Automatic temperature compensation from -40°C to 80°C enhances accuracy.
USB interface allows easy configuration via WebCal software.

Product Description

Flowline US01 Reflective Ultrasonic Liquid Level Transmitter is engineered for precise and continuous liquid level measurement up to 3 meters in horizontal or vertical tank installations. Housed in durable polypropylene with a PVDF transducer, this transmitter offers reliable performance even in corrosive environments.

The device utilizes proprietary Reflective Technology to maintain signal integrity in condensing and challenging conditions, ensuring accurate level measurement. With a focused 2 inch (5 cm) beam width and a minimal 1.5 inch (3.8 cm) dead band, it maximizes tank filling capacity while fitting into limited-space setups.

Configuration and calibration are simplified through a USB interface and Flowline's WebCal software, providing flexibility and ease of use for industrial automation and process control systems.

Additional features include fail-safe diagnostics options, automatic temperature compensation covering a range from -40°C to 80°C, and a robust Type 6P (IP68) compact enclosure suitable for small tanks and harsh environments.

This transmitter operates safely within a maximum DC voltage of 28V and a maximum current of 20mA, capable of handling pressures up to 2 bar.

Typical applications include measurement of liquid levels in day tanks, IBCs, drums, cooling towers, skids, process tanks, and waste sumps in industrial, manufacturing, water treatment, and HVAC sectors.

Uses Reflective Technology to reliably measure liquid levels even in condensing environments. Narrow 2 inch (5 cm) beam width suitable for limited space applications. Short 1.5 inch (3.8 cm) dead band increases usable tank capacity.

PVDF transducer and corrosion-resistant polypropylene enclosure ensure durability. Supports fail-safe diagnostics with configurable output signals. Compact IP68 rated Type 6P enclosure ideal for small tanks. Automatic temperature compensation from -40°C to 80°C enhances accuracy.

USB interface allows easy configuration via WebCal software. Operates with maximum DC voltage of 28V and current of 20mA. Suitable for industrial, water treatment, process tank, and waste sump applications. Explore more high-quality Level Transmitters and industrial measurement instruments at EnvMart for reliable process control solutions.
