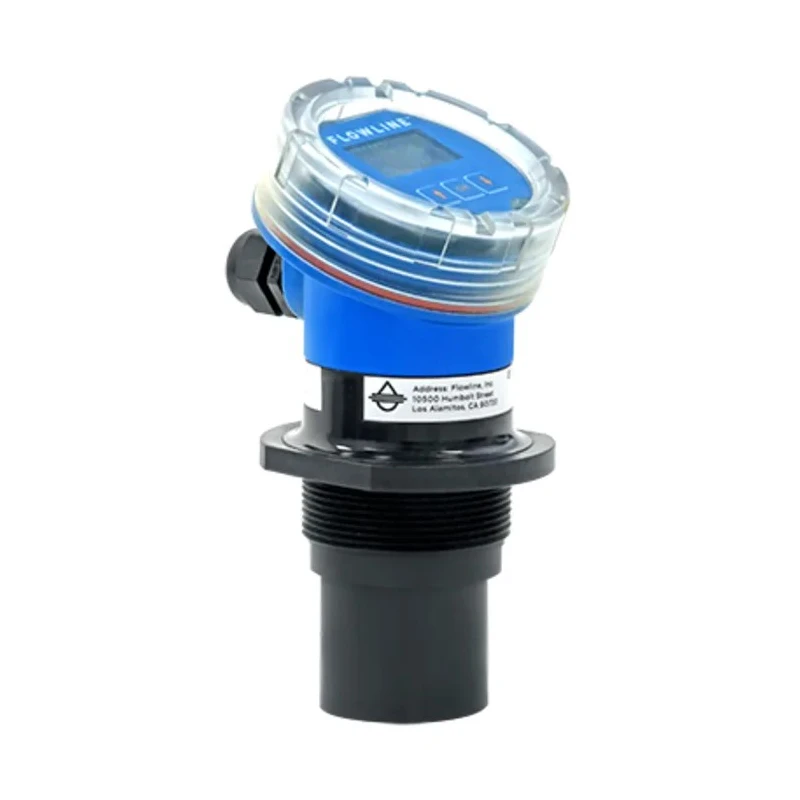

Flowline Reflective Ultrasonic Liquid Level Transmitter Vertical Horizontal Housing USB Interface UG06

Free Delivery in India | Lowest Global Shipping Charges

Flowline Reflective Ultrasonic Liquid Level Transmitter Vertical Horizontal Housing USB Interface UG06

Name: Flowline Reflective Ultrasonic Liquid Level Transmitter Vertical Horizontal Housing USB Interface UG06
Brand: FLOWLINE
SKU: 208614
Price: 1371.28 USD
Availability: InStock



Category Level Transmitter Brand FLOWLINE Condition New

Specifications

Country of Origin	United States
Brand	Flowline
Model	UG06
Mount Type	Vertical, Horizontal
Housing Material	Polycarbonate, Polypropylene
Series	UG06
Maximum Operating Temperature	80°C
Maximum Pressure	2bar
Minimum Operating Temperature	-40°C
Maximum Current	20mA
Device Type	Reflective Ultrasonic Liquid Level Transmitter
Interface Type	USB
Maximum dc Voltage	28V dc
Standards/Approvals	CE, CSA, cUS

Key Features

Reflective technology ensures accurate measurement even in condensing environments.
Constructed with corrosion-resistant polycarbonate and polypropylene housing for durability.
Operates within a wide temperature range from -40°C to 80°C.
Features a USB interface for easy configuration and data communication.
Capable of handling maximum pressure up to 2 bar for varied liquid applications.
Equipped with an LCD display showing level in inches, meters, or percent span for versatile monitoring.
Offers fail-safe diagnostics with selectable signal failure outputs for enhanced safety.
Compact beam width of 3 inches suits installations with limited space.

Product Description

Flowline UG06 Reflective Ultrasonic Liquid Level Transmitter is a versatile device designed for continuous liquid level measurement in industrial and commercial applications.

This level transmitter supports both vertical and horizontal mountings, making it adaptable for diverse installation requirements. The housing is constructed from durable polycarbonate and polypropylene materials, offering resistance to corrosion and harsh environments. Operating temperature ranges from -40°C to 80°C, enabling use in extreme conditions.

The device incorporates a USB interface facilitating straightforward configuration and diagnostics via Flowline's WebCal software or an integral push-button display module. The compact 3-inch beam width allows installation in confined spaces without sacrificing measurement accuracy. It delivers a configurable 4 mA to 20 mA analogue output signal, catering to various control systems.

Additional features include an LCD for live display of level readings in inches, meters, or percent span, as well as fail-safe diagnostics with selectable signal fail-safe outputs to maintain system safety. Automatic temperature compensation further enhances measurement precision despite thermal fluctuations.

The UG06 series is CE, CSA, and cUS certified but does not have hazardous area certification. It is rated for a maximum pressure of 2 bar and maximum DC voltage of 28V with a maximum current of 20 mA, supporting a broad spectrum of liquid level sensing applications.

Reflective technology for reliable operation in condensation-prone environments. Corrosion-resistant housing materials (polycarbonate, polypropylene) with IP68 rating. Configurable analogue output via push button or WebCal software.

LCD display for level indication in various units. Narrow beam suitable for spatially constrained areas. Fail-safe diagnostics to ensure operational reliability. Wide operating temperature range from -40°C to 80°C. USB interface for efficient communication and setup.

Certified by CE, CSA, and cUS standards. Designed for industrial, laboratory, HVAC, manufacturing, and water treatment levels measurement. Explore EnvMart's comprehensive range of Level Transmitters and industrial sensors for precision monitoring and automation solutions.
