PR Electronics 2-wire Programmable Level Transmitter Potentiometer Input 35V dc 44mm Diameter 5343A

Free Delivery in India | Lowest Global Shipping Charges

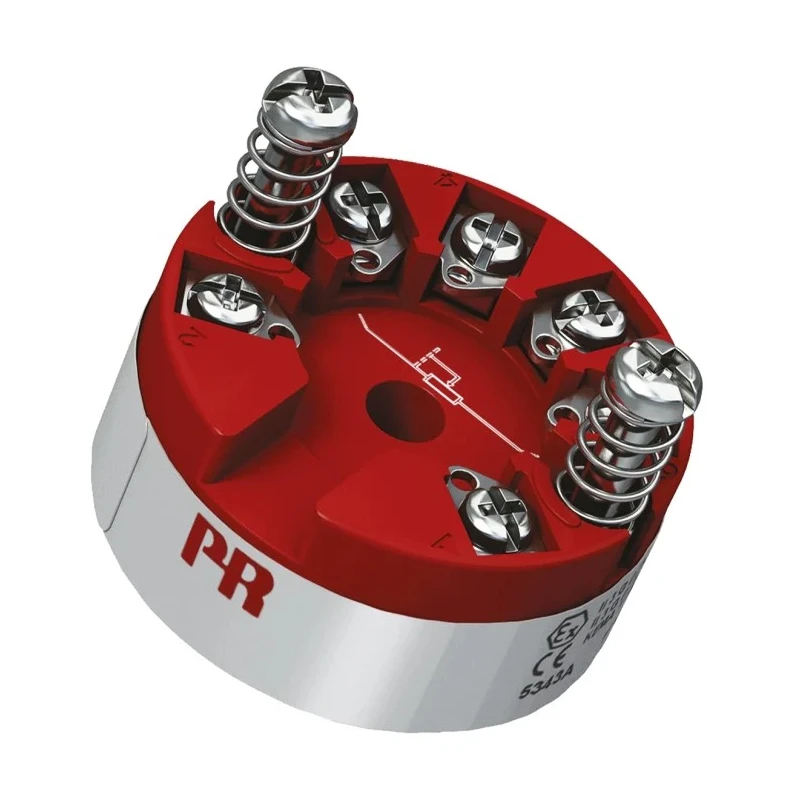

PR Electronics 2-wire Programmable Level Transmitter Potentiometer Input 35V dc 44mm Diameter 5343A

Name: PR Electronics 2-wire Programmable Level Transmitter Potentiometer Input 35V dc 44mm Diameter 5343A
Brand: PR Electronics
SKU: 251740
Price: 193.86 USD
Availability: InStock



Category Level Transmitter Brand PR Electronics Condition New

Specifications

Country of Origin	Denmark
Diameter	44mm
Brand	PR Electronics
Model	5343A
Depth	20.2mm
Output type	Current
Series	5343A
Input Type	Potentiometer
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Hazardous Area Certification	ATEX, Ex
Maximum Supply Voltage	35V dc

Key Features

Equipped with potentiometer or ohmic sensor input for accurate level detection.
Output signal is current based for reliable process control integration.
Compact 44mm diameter sensor head with 20.2mm depth for easy mounting.
Operates reliably within temperature range of -40°C to 85°C for industrial applications.
Certified for hazardous areas with ATEX and Ex approvals ensuring safety in explosive environments.
Programmable sensor error value and user-defined linearization enhance measurement accuracy.
Features a unique process calibration function for tailored level monitoring.
Protected against polarity reversal to ensure durability and prevent damage.

Product Description

PR Electronics 5343A is a high-precision 2-wire programmable level transmitter with a potentiometer input suitable for accurate liquid level measurement in diverse industrial and process control environments. It accepts potentiometer signals from reed switch chains commonly used for tank level detection.

The transmitter operates with a maximum supply voltage of 35V dc and has a compact sensor head 44mm in diameter and 20.2mm in depth, allowing for flexible mounting options and use in confined spaces.

Designed to function reliably in environments ranging from -40°C to 85°C, it is suitable for rigorous industrial conditions. Its robustness is enhanced by certifications for hazardous areas including ATEX, Ex, IECEx, INMETRO, and marine standards, ensuring safe operation in potentially explosive atmospheres.

This model features programmable sensor error values and a user-selectable linearization function to adapt to specific process needs, providing enhanced measurement accuracy. The unique process calibration capability enables precise adjustments for individual applications.

For easy installation, the transmitter provides DIN form B sensor head mounting and protected circuitry against polarity reversal to extend equipment life and reduce maintenance.

The device is manufactured in Denmark under strict quality standards, supporting performance and durability demands of industrial users in sectors such as water treatment, chemical processing, manufacturing, and marine operations.

Equipped with potentiometer or ohmic input for accurate sensing. Current output signal compatible with various control systems. Compact 44mm diameter sensor head for flexible installation. Wide operating temperature range from -40°C to 85°C.

Certified safe for use in hazardous areas (ATEX, Ex, IECEx, INMETRO). Programmable functions including sensor error and linearization for precision. Feature rich with unique process calibration for tailored applications.

Polarity reversal protection for durability. DIN form B mounting for standardized installation. Manufactured in Denmark ensuring high quality. Explore the full range of PR Electronics Level Transmitters and measuring instruments on EnvMart for advanced industrial automation and process control solutions.
