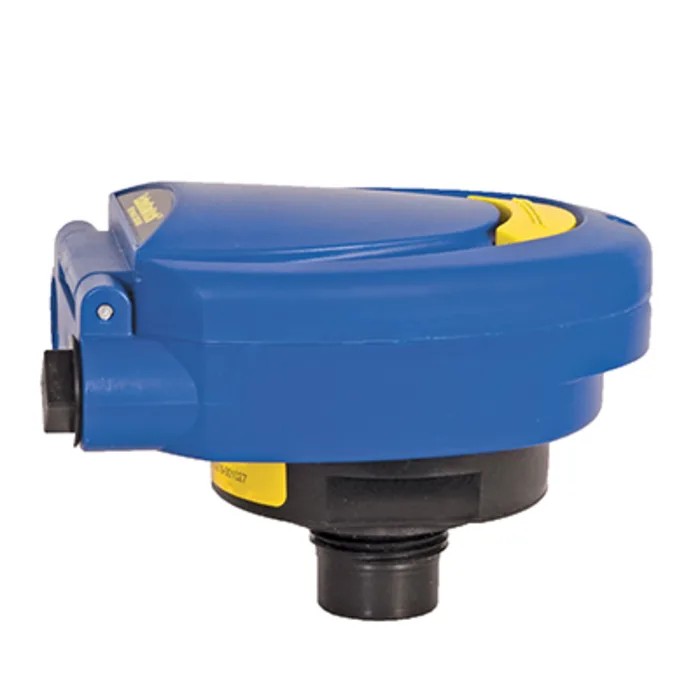

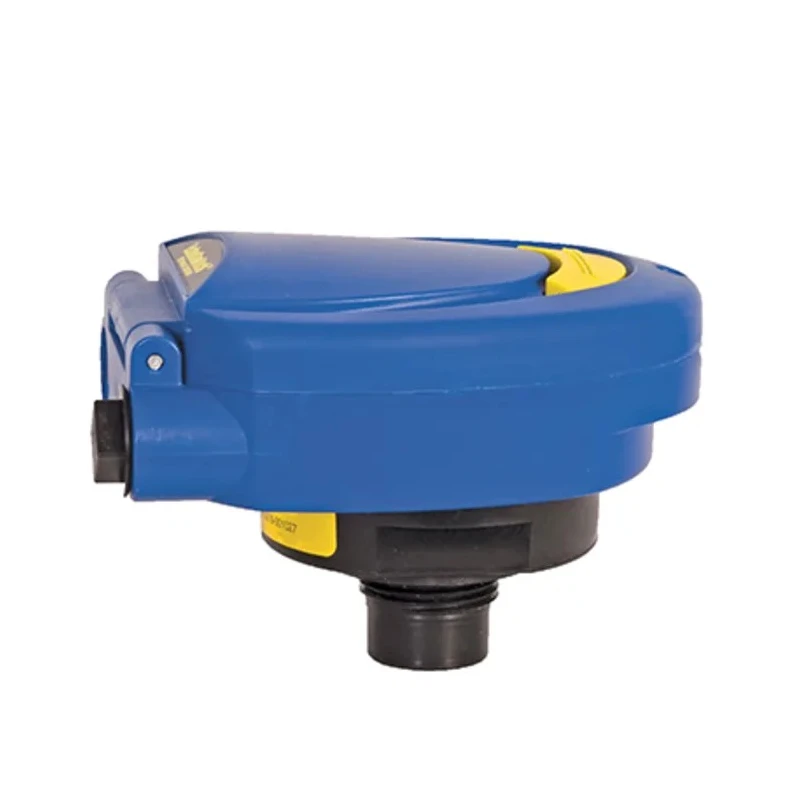

Flowline EchoSonic Series Ultrasonic Level Transmitter Vertical Mount Polycarbonate Housing Fluorelastomer Gasket LU27-01
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | LU27-01 |
| Cable Length | 3m |
| Mount Type | Vertical |
| Housing Material | Polycarbonate |
| Series | EchoSonic |
| Maximum Operating Temperature | 60°C |
| Maximum Pressure | 2bar |
| Minimum Operating Temperature | -35°C |
| Interfaces | USB communication adapter available (RS Stock No 889-1570) |
| Maximum Current | 20mA |
| Device Type | Ultrasonic Level Transmitter |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | cFMus |
| Gasket Material | Fluorelastomer |
Key Features
- Offers robust and reliable level sensing within a 6P enclosure with cable interface.
- Compatible with corrosive liquids due to PVDF transducer and polycarbonate enclosure.
- Operates at temperatures from -35°C to 60°C ensuring wide-range applicability.
- Outputs a 4-20mA signal suitable for integration with control systems.
- Includes 3 meter cable length for flexible installation.
- Maximum operating pressure is 2 bar for suitable process compatibility.
- Supports USB communication adapter for simple setup and configuration.
- Comes with cFMus certification for industrial safety standards.
Product Description
Flowline LU27-01 EchoSonic Series Ultrasonic Level Transmitter is a new, industrial-grade ultrasonic level sensor designed for vertical mounting. It features a polycarbonate housing with a fluorelastomer gasket, enabling use in corrosive liquids and harsh conditions up to 60°C operating temperature. The device emits a 4-20mA output signal, providing precise continuous level measurement with reliable performance.
This robust level transmitter is housed in a 6P enclosure and includes a 3-meter cable for easy connection, supporting integration into HVAC, water treatment, manufacturing, and other automation systems. The PVDF transducer element combined with the polycarbonate enclosure ensures durability and chemical resistance.
The transmitter supports cFMus industrial safety certification and is compatible with Flowline's free WebCal software to simplify device calibration. An optional USB communication adapter facilitates plug and play setup, enhancing user convenience.
Operating pressures up to 2 bar make this sensor suitable for a variety of liquid level monitoring applications in laboratories, industrial processes, and commercial environments. Robust design within a corrosion-resistant polycarbonate housing.
Vertical mounting for precise level measurement. Wide temperature range: -35°C to 60°C. 4-20mA output signal for easy integration. Compatible with corrosive liquids due to fluorelastomer gasket. Includes a 3m long cable for flexible installation.
cFMus approved for industrial safety compliance. Optional USB adapter available for straightforward calibration. Suitable for industrial, laboratory, HVAC, and water treatment applications.
Set includes the Flowline EchoSonic LU27-01 ultrasonic Level Transmitter with polycarbonate housing and fluorelastomer gasket. This product is ideal for precise, reliable liquid level sensing in vertical installations.
