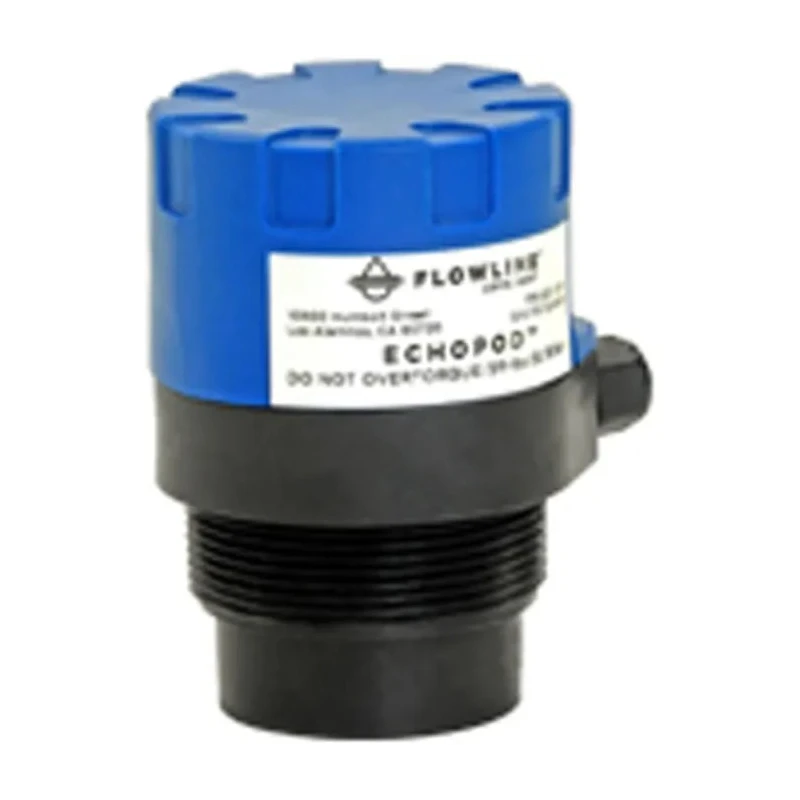

Flowline Reflective Ultrasonic Multi-Function Liquid Level Transmitter Vertical Mount Polypropylene Housing UG01
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | UG01 |
| Cable Length | 1.2m |
| Mount Type | Vertical |
| Housing Material | Polypropylene |
| Series | UG01 |
| Maximum Operating Temperature | 80°C |
| Maximum Pressure | 2bar |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 20mA |
| Device Type | Reflective Ultrasonic Multi-Function Liquid Level Transmitter |
| Interface Type | USB |
| Maximum dc Voltage | 28V dc |
| Standards/Approvals | CE, CSA, cUS |
Key Features
- Continuous level measurement up to 3 meters ensures precise monitoring.
- 4 mA to 20 mA analog signal output with configurable four relay outputs.
- Reflective technology enables accurate readings even in condensing environments.
- Construction includes corrosion-resistant PVDF transducer and compact polypropylene enclosure.
- Automatic temperature compensation from -40°C to 80°C ensures functionality in diverse conditions.
- Short dead band of 3.8 cm maximizes tank filling capacity.
- Programmable relays support alarms, automatic fill, or empty functions.
- USB interface allows configuration via Flowline WebCal software.
Product Description
Flowline UG01 Reflective Ultrasonic Multi-Function Liquid Level Transmitter UG01 offers advanced vertical mounting level sensing solutions with a durable polypropylene housing designed for industrial and commercial applications. This transmitter delivers continuous liquid level measurement up to 3 meters with highly reliable reflective ultrasonic technology that performs well even in environments prone to condensation.
The device features a corrosion-resistant PVDF transducer and a compact polypropylene enclosure which enhances longevity and operational stability. It provides a 4 mA to 20 mA analog signal output and includes four programmable relays configurable through Flowline's WebCal software for customizable alarm and control logic to suit various tank filling and emptying systems.
With a narrow 5 cm beam width and short 3.8 cm dead band, this level transmitter maximizes tank capacity utilization. It supports automatic temperature compensation across a wide range from -40°C to 80°C, allowing dependable operation even in temperature extremes. The USB interface enables easy configuration and calibration.
Rated for a maximum operating pressure of 2 bar and operating on a maximum DC voltage of 28V with 20mA maximum current, this device complies with CE, CSA, and cUS standards but lacks hazardous area certification. It is manufactured in the United States, ensuring high quality and reliability.
This level transmitter is ideal for industrial, water treatment, agricultural, laboratory, and HVAC applications requiring precise, non-contact liquid level measurement with robust performance in challenging environments.
Continuous level measurement up to 3 meters ensures precise monitoring. 4 mA to 20 mA analog signal output with configurable four relay outputs. Reflective technology enables accurate readings even in condensing environments.
Construction includes corrosion-resistant PVDF transducer and compact polypropylene enclosure. Automatic temperature compensation from -40°C to 80°C ensures functionality in diverse conditions. Short dead band of 3.8 cm maximizes tank filling capacity.
Programmable relays support alarms, automatic fill, or empty functions. USB interface allows configuration via Flowline WebCal software. Rated maximum pressure of 2 bar with maximum DC voltage of 28V and current of 20mA.
Explore a wide range of industrial measuring instruments and Level Transmitters at EnvMart for reliable and accurate process control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides continuous liquid level measurement up to 3 meters.
It offers a 4 mA to 20 mA analog signal output along with four configurable relay outputs.
The operating temperature range is from -40°C to 80°C, allowing it to function in diverse environmental conditions.
It features a corrosion-resistant PVDF transducer and a compact polypropylene enclosure.
Reflective technology enables accurate readings even in environments prone to condensation.
The dead band is short at 3.8 cm, which maximizes tank filling capacity.
It is rated for a maximum operating pressure of 2 bar.
It uses a USB interface for configuration via Flowline's WebCal software.
The maximum DC voltage is 28V and the maximum current is 20mA.
It complies with CE, CSA, and cUS standards, but does not have hazardous area certification.
This unit is designed for vertical mounting.
It is suitable for industrial, water treatment, agricultural, laboratory, and HVAC applications requiring precise liquid level measurement.
