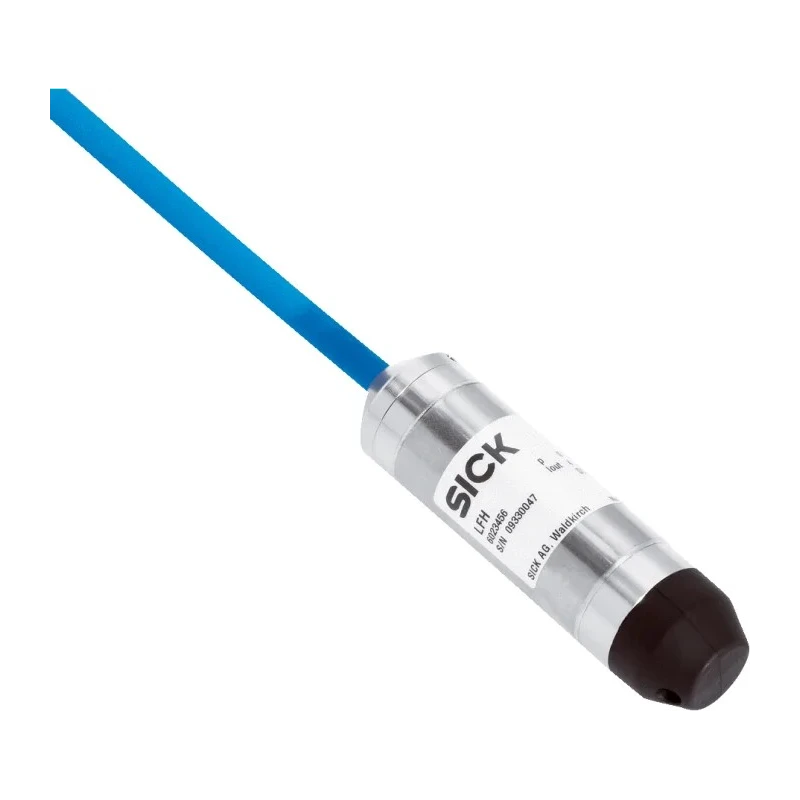

SICK LFH Series Pressure Level Transmitter Cable Stainless Steel Housing LFH-SB1X0G1AS15SZ0

SICK LFH-SB1X0G1AS15SZ0 Pressure Level Transmitter Cable with stainless steel housing is designed for continuous and precise liquid level measurement in industrial applications. Its rugged construction and high-grade materials enable operation under difficult conditions where other measurement technologies may fail.

The transmitter uses hydrostatic pressure created by the liquid column above the probe for level indication and is permanently connected through a 15-meter PUR cable. An optional FEP cable is available for aggressive media.

The stainless steel membrane and hermetically sealed housing with a PA protective cap deliver reliability and protection against environmental factors. The unit operates effectively within a temperature range of -10°C to 50°C and withstands a maximum pressure of 1 bar. It also supports maximum DC voltage of 30V and a maximum current of 25mA.

Additional features include optional integrated Pt100 temperature sensor and surge protection for enhanced operational safety. Installation is simplified requiring no drilling into vessel walls, facilitating removal for cleaning purposes.

The CE certification underscores the compliance to relevant European quality and safety standards. Being manufactured in Germany, this transmitter offers assured quality for industrial, laboratory, HVAC, water treatment, manufacturing, and commercial level measurement applications.

The transmitter features a robust stainless steel housing ensuring durability. The product includes a 15-meter PUR cable, with an option for FEP cable for aggressive media. It supports a maximum pressure of 1 bar suitable for hydrostatic level measurement.

Operates reliably between -10°C and 50°C temperature range. Equipped with a stainless steel membrane and hermetically sealed housing with PA protective cap. The product includes CE certification ensuring compliance with quality standards.

The transmitter can optionally include integrated Pt100 temperature measurement. Offers surge protection as an optional feature for electrical safety. Designed to be submerged with no wall drilling required for installation.

Manufactured in Germany with high-grade materials assuring ruggedness and reliability.

For professionals seeking reliable level measurement, SICK LFH series provides multiple cable lengths and configuration options tailored to diverse industrial needs. Explore additional SICK level sensors and transmitters to suit specific requirements in the EnvMart catalog.
