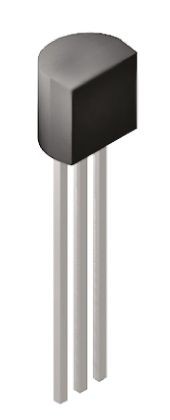

Microchip Voltage Supervisor Microcontroller Reset Circuit 1V Minimum Supply Voltage 5.5V Maximum Supply MCP100-475DI/TO

Free Delivery in India | Lowest Global Shipping Charges

Microchip Voltage Supervisor Microcontroller Reset Circuit 1V Minimum Supply Voltage 5.5V Maximum Supply MCP100-475DI/TO

Name: Microchip Voltage Supervisor Microcontroller Reset Circuit 1V Minimum Supply Voltage 5.5V Maximum Supply MCP100-475DI/TO
Brand: Microchip
SKU: 181930
Price: 0.45 USD
Availability: InStock



Category Voltage Supervisor Brand Microchip Condition New

Specifications

Country of Origin	India
Voltage	Supervisors Microchip 1 Voltage Supervisor 3-Pin 1 V TO-92, MCP100-475DI/TO RS S
Brand	Microchip
Height	4.62mm
Length	4.71mm
Model	MCP100-475DI/TO
Width	3.62mm
Mount Type	Through Hole
Series	MCP100
Maximum Operating Temperature	85°C
Package Type	TO-92
Sub Type	Microcontroller Reset Circuit
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1V
Number of Supervisors	1
Output Driver	Active Low, Push Pull
Reset Threshold Voltage	1V
Monitored Voltage	4.62V

Key Features

This device operates over a temperature range from -40°C to 85°C.
It features an active low, push-pull output driver for reliable reset signaling.
The supervisor includes a single supervisory circuit with no watchdog timer or manual reset.
Designed for through hole mounting in a TO-92 package with a pin count of 3.
The device supports a minimum supply voltage of 1V and a maximum supply voltage of 5.5V.
The physical dimensions are compact with length 4.71mm, width 3.62mm, and height 4.62mm.
The MCP100 series provides microcontroller supervisory and reset functionality for efficient power management.

Product Description

Microchip MCP100-475DI/TO is a voltage supervisor and microcontroller reset circuit in a compact 3-pin TO-92 package, designed to monitor supply voltages from 1V to 5.5V for embedded system applications.

This device ensures reliable system reset and supervision in a range of industrial, electronic, and power management environments. The active low, push-pull output driver facilitates robust reset signaling without the need for a watchdog timer or manual reset function. Its operating temperature range from -40°C to 85°C makes it suitable for extended industrial use.

The MCP100-475DI/TO is ideal for applications that require precise reset threshold voltage at 1V and monitored voltage at 4.62V. This product’s physical dimensions (4.71mm length, 3.62mm width, and 4.62mm height) and through-hole TO-92 package enable easy PCB mounting and integration.

Key features include a single supervisor circuit for microcontroller reset purposes, enhancing system reliability by detecting power failures and preventing erroneous operation. This device operates over a temperature range from -40°C to 85°C.

It features an active low, push-pull output driver for reliable reset signaling. The supervisor includes a single supervisory circuit with no watchdog timer or manual reset. Designed for through hole mounting in a TO-92 package with a pin count of 3.

The device supports a minimum supply voltage of 1V and a maximum supply voltage of 5.5V. The physical dimensions are compact with length 4.71mm, width 3.62mm, and height 4.62mm. The MCP100 series provides microcontroller supervisory and reset functionality for efficient power management.

This voltage supervisor is well-suited for various industrial electronics, embedded control systems, and power management circuits. It facilitates system stability and protection, crucial for commercial and manufacturing applications.
