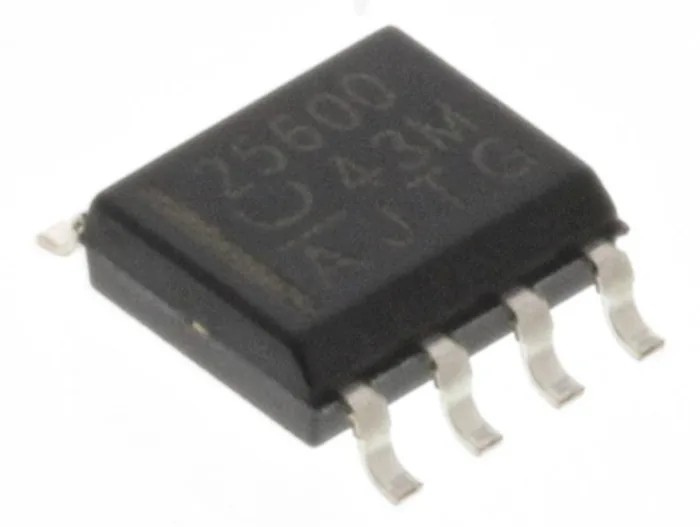

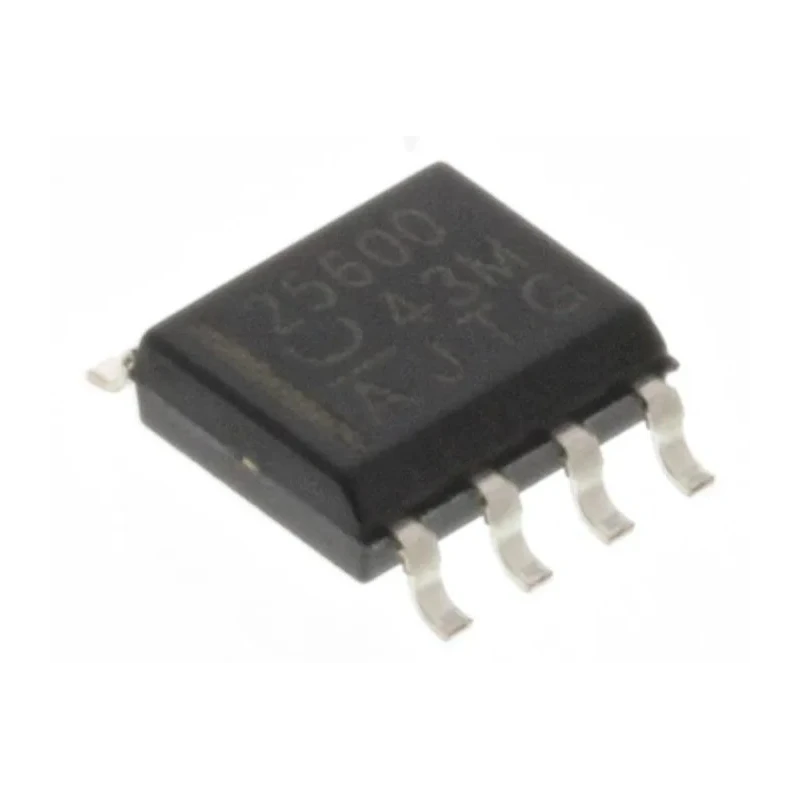

Texas Instruments DC-DC LLC Controller 2-Channel 8-Pin SOIC Surface Mount 11.5-18V Operating Voltage UCC25600D
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.75mm |
| Length | 6.19mm |
| Model | UCC25600D |
| Mount Type | Surface |
| Series | UCC25600 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Sub Type | LLC Controller |
| Minimum Operating Temperature | -40°C |
| Switching Frequency | 400kHz |
| Maximum Input Voltage | 18V |
| Minimum Input Voltage | 11.5V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 709-2668PBrand: Texas InstrumentsManufacturers Part No.: UCC25600D |
| Pin Count | 8 |
| Current Conversion Type | DC-DC |
Key Features
- This controller operates with an input voltage range from 11.5V to 18V.
- It features a switching frequency of 400kHz ensuring precise power conversion.
- Designed for mounting on surfaces with a compact SOIC package type for efficient PCB integration.
- Operating temperature range from -40°C up to 125°C supports demanding industrial environments.
- The product is supplied in a tube packaging ready for machine insertion enhancing production efficiency.
- Minimum pin count of 8 supports advanced control while maintaining a small footprint.
- The device conforms to no particular automotive or other specialized standards but offers robust industrial reliability.
Product Description
Texas Instruments UCC25600D is a DC-DC LLC Controller featuring 2-channel control within an 8-pin SOIC package form factor. It is specifically engineered for power management applications requiring high efficiency and compact footprint. The device supports a wide input voltage range of 11.5V to 18V enabling it to adapt to varying power supply conditions.
Its switching frequency is rated at 400kHz to allow stable and precise voltage regulation in complex mixed-signal environments. Designed for surface mount technology, this component fits directly onto printed circuit boards (PCBs) ensuring ease of automated assembly and maximum space utilization.
The operating temperature range from -40°C to 125°C meets rigorous industrial, electronic components, and power management IC standards, making it suitable for demanding applications in industrial machines, electronics production, and embedded systems.
This voltage controller is part of the UCC25600 series from Texas Instruments, widely recognized for reliability and performance in voltage regulation tasks. The device comes packaged in tubes, optimized for insertion into machinery to streamline production processes and enhance manufacturing efficiency.
This controller operates with an input voltage range from 11.5V to 18V. It features a switching frequency of 400kHz ensuring precise power conversion. Designed for mounting on surfaces with a compact SOIC package type for efficient PCB integration.
Operating temperature range from -40°C up to 125°C supports demanding industrial environments. The product is supplied in a tube packaging ready for machine insertion enhancing production efficiency. Minimum pin count of 8 supports advanced control while maintaining a small footprint.
The device conforms to no particular automotive or other specialized standards but offers robust industrial reliability. Length dimension is 6.19mm and height is 1.75mm, facilitating space-constrained designs. Ideal for use in industrial electronic devices, power supplies, control systems, and embedded power management solutions requiring reliable voltage regulation and compact design.
Explore more products from Texas Instruments and Voltage Controllers to meet diverse industrial and laboratory power management needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The UCC25600D operates with an input voltage range from 11.5V to 18V.
It features a switching frequency of 400kHz, ensuring precise power conversion.
This model has a length of 6.19mm and a height of 1.75mm, making it suitable for space-constrained designs.
The operating temperature range is from -40°C to 125°C, suitable for demanding industrial environments.
It has a minimum pin count of 8, supporting advanced control while maintaining a small footprint.
This device is packaged in an 8-pin SOIC format, designed for surface mount technology.
It performs DC-DC current conversion, making it suitable for various power management applications.
The device does not conform to any particular automotive or specialized standards but offers robust industrial reliability.
The UCC25600D is manufactured in India.
It is ideal for use in industrial electronic devices, power supplies, control systems, and embedded power management solutions.
The product is supplied in tube packaging, ready for machine insertion to enhance production efficiency.
This controller is part of the UCC25600 series from Texas Instruments, recognized for reliability in voltage regulation tasks.
