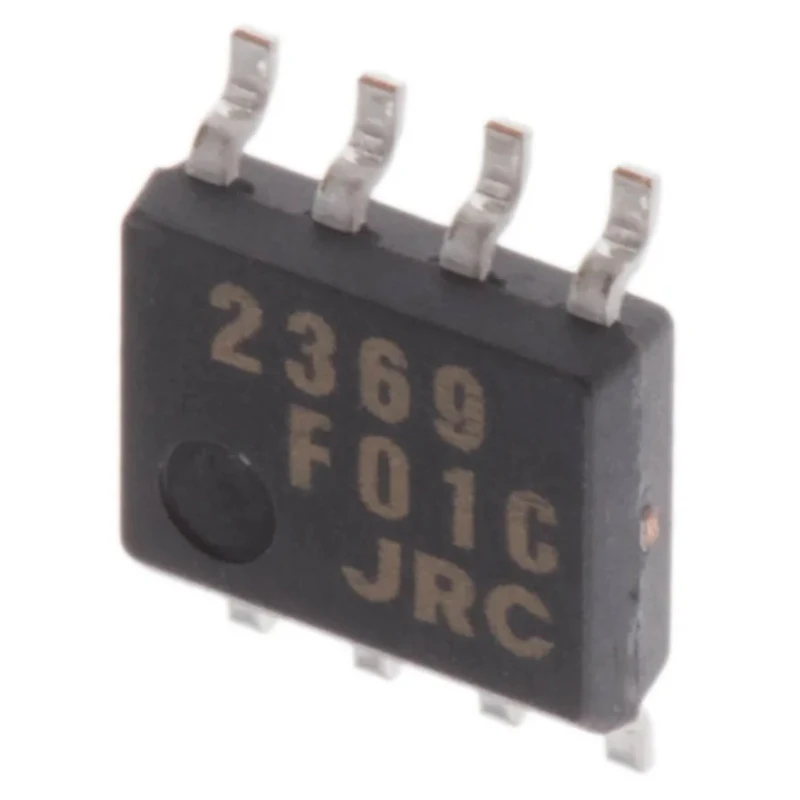

Nisshinbo Micro Devices NJM2369E DC-DC Flyback Controller 5-Channel 8-Pin Surface Mount EMP Package NJM2369E

Nisshinbo Micro Devices NJM2369E is a DC-DC Flyback Controller designed for precise voltage regulation in various power management circuits. This device includes five channels incorporated into an 8-pin EMP surface mount package that facilitates efficient assembly in compact electronic assemblies.

The controller supports DC-DC current conversion with an output current capacity of 10 mA. It ensures reliable operation over a wide temperature range from -40°C to 85°C, making it suitable for industrial, consumer electronics, and embedded system applications.

The product supports input voltage ranging from a minimum of 3.6 V to a maximum of 32 V, and it has a maximum duty cycle of 85%, optimizing efficiency in flyback switching regulator circuits.

The compact surface mount EMP package with 8 pins enables integration into high-density circuit boards while maintaining durability and electrical performance. Although it lacks automotive certifications, it suits a broad range of electronic applications including power supplies, embedded devices, and electronic control modules.

Key features:. DC-DC current conversion for efficient power management. Surface mount EMP package design with 8 pins. Operating temperature range -40°C to 85°C for versatile usage environments. Input voltage range between 3.6 V and 32 V allows flexible application.

Maximum duty cycle of 85% ensures efficient switching performance.

This controller is engineered to meet industrial and consumer electronics standards for stable voltage control. Its design supports manufacturing efficiency and compact electronic assemblies. Ideal use cases include industrial electronic controllers, power management ICs, and embedded system power solutions.
