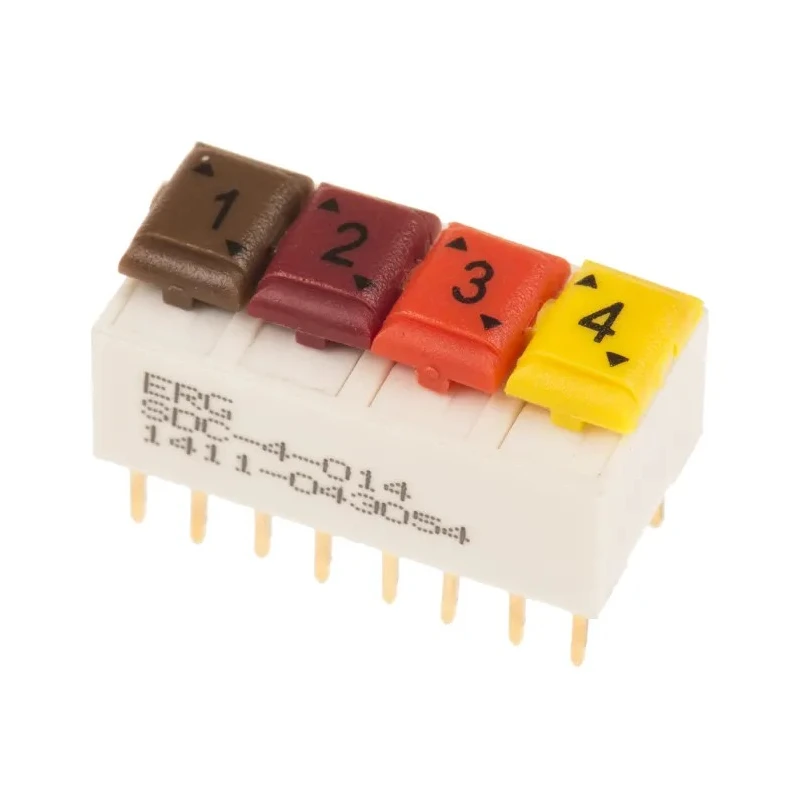

ERG Slide Rotary Coded DIP Switch Through Hole, Slide Actuator, Mount Type Through Hole, 5A @ 100Vac SDC 04 014 STD

The ERG SDC 04 014 STD is a high-quality rotary coded DIP switch designed for through hole mounting in printed circuit boards, featuring a slide actuator mechanism for precise circuit control and selection. It supports changeover (SPDT) operation, incorporating a break-before-make contact arrangement, which is important in applications where reliable switching and electrical isolation are required.

Engineered for dry circuit switching, this DIP switch offers a robust non-switching rating of 5A at 100Vac, making it suitable for demanding industrial and commercial environments. The switch's low contact resistance of 10 milliohm ensures efficient electrical connectivity and reduces signal losses, which is vital for sensitive electronic circuits.

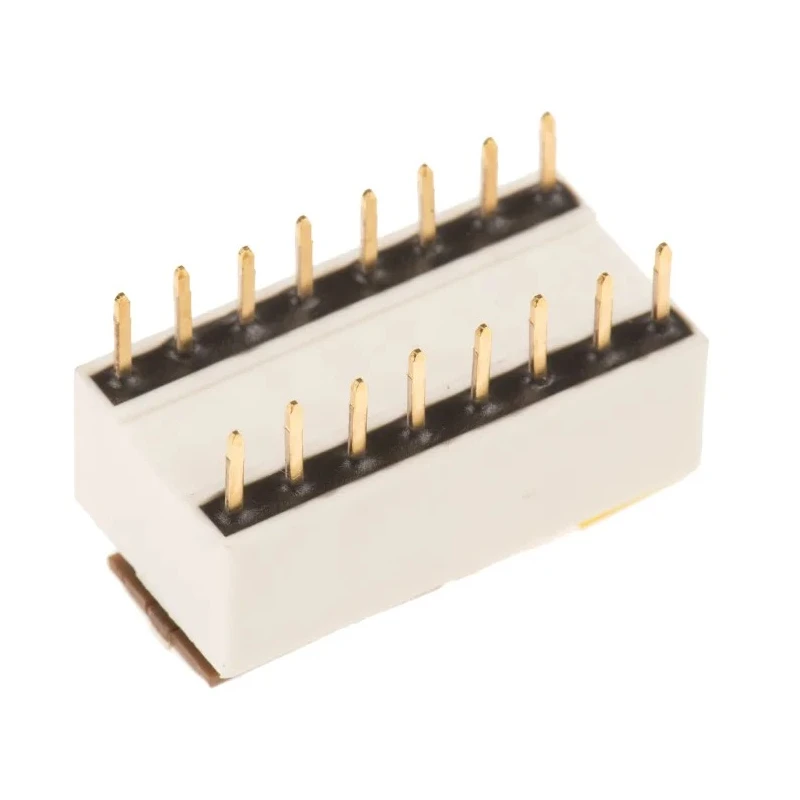

Its compact DIP form and through hole mounting enable straightforward integration into PCBs, while the slide actuator provides a tangible, dependable interface for manual circuit configuration. This makes it ideal for instrumentation, automation systems, and custom-built electronic control panels where specific coding or selection functions are needed.

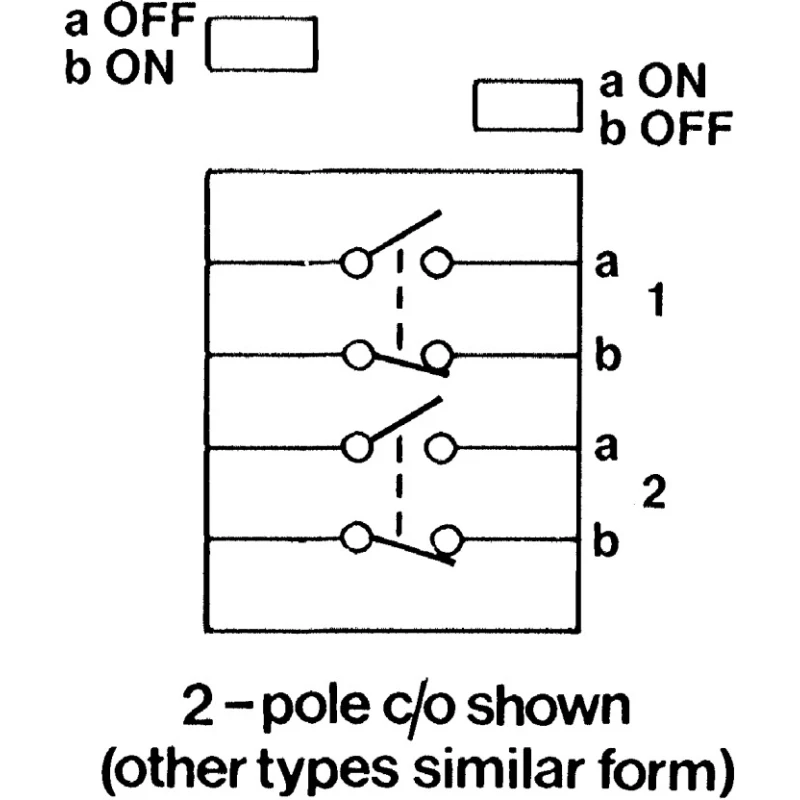

The ERG rotary coded DIP switch is available in a choice of configurations, offering lateral operation and selectable coding options on the board. The break-before-make contacts - where pairs of pins along one side must be commoned for changeover action - further enhance versatility and safety in circuit design.

Typical applications include industrial electronics, laboratory equipment, automation control units, commercial hardware interfaces, and other settings where dependable switching and circuit coding are important. Its construction and technical performance also allow for integration into manufacturing test setups, programmable systems, and precision electronic assemblies.
