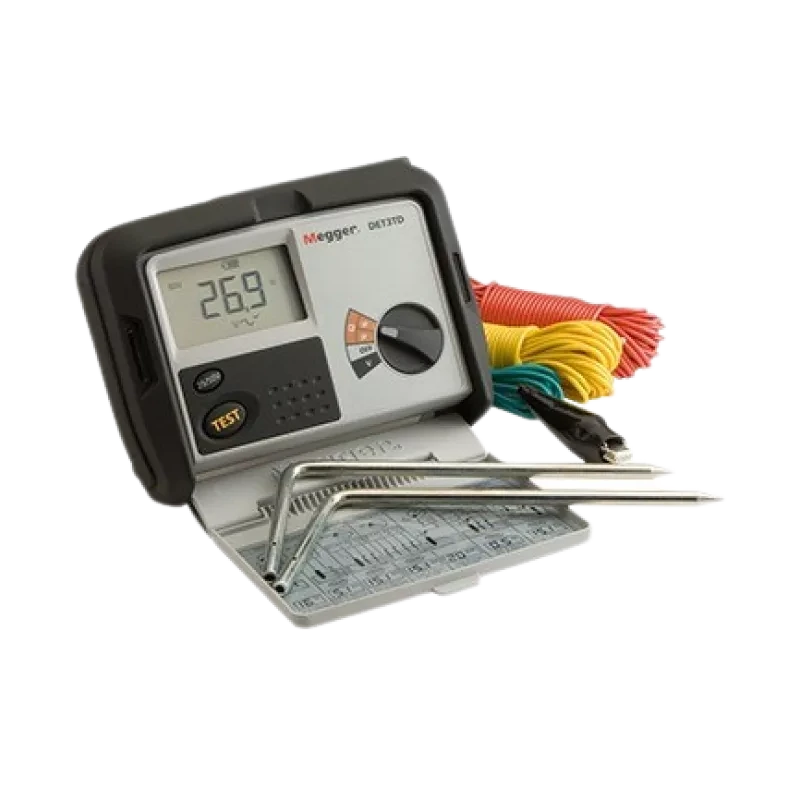

Megger Digital Earth Resistance Tester DET3TD
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Megger DET3TD Digital earth resistance tester |
| Resistance Range | 0.01 to 2000 Ω autoranging |
| Display | LCD |
| Brand | Megger |
| Operating Temperature | –15 °C to +55 °C (5 °F to 131 °F) |
| Battery Life | ~3 hours or ~700 consecutive tests |
| Storage Temperature | –40 °C to +70 °C (–40 °F to 158 °F) |
| Battery type | 8 × 1.5 V AA cells |
| Humidity | 95% RH non-condensing at 40 °C (104 °F) |
| Model | DET3TD |
| Weight | ~1 kg (2.2 lb) |
| Ingress Protection | IP54 |
| Resistance Accuracy | 2P measurements 2% ±3 digits/ 3P measurements 2% ±3 digits/ ART measurements 5% ±3 digits |
| Test Current | 450 mA or 4.5 mA |
| Safety Rating | EN 61010-1 CAT IV 100 V |
| Test Frequency | 128 Hz |
| Test voltage | 25 V or 50 V (user-selectable/ factory setting 50 V) |
| Maximum Probe Resistance (Rp/ Rc) | 100 kΩ at 50 V output | reduced to 50 kΩ at 25 V | reduced to 5 kΩ at 0.01 Ω resolution on 18 Ω range |
| Earth Voltage Range | 0 to 100 V AC |
| Earth Voltage Accuracy | ±2% ±2 V |
| 2-Wire / 3-Wire Test | Yes |
| Ground Current Range | 0.5 mA to 19.9 A (with current clamp) |
| Ground Current Accuracy | 5% ±3 digits |
| Noise Rejection | 40 V pk–pk |
| Automatic Checks | Noise/ P-spike/ and C-spike checks |
| EMC Compliance | Meets the requirements of EN61326-1-1998 for use in heavy industrial areas |
| Dimensions (H × W × D) | 203 × 148 × 78 mm (8 × 5.7 × 3.2 in) |
Key Features
- Clear warnings for faster testing
- One-touch, easy operation
- Selectable test voltage options
- IP54 rugged outdoor design
- Large, easy-to-read LCD
- 40 V noise rejection accuracy
- Includes test kits and certificates
Product Description
The Megger MIT515 is a 5 kV insulation resistance tester built for precision, reliability, and convenience in demanding industrial and utility applications. It performs IR, PI, and DAR tests with resistance measurement capability up to 10 TΩ, providing deep insight into insulation quality. Its dual-layer protective case, IP65 protection (case closed), and rapid-charge battery make it ideal for outdoor use. The large backlit LCD, intuitive rotary controls, and advanced filtering ensure accurate readings even in noisy environments. Compact yet powerful, it offers CAT IV 600 V safety compliance, ensuring operator protection during high-voltage tests. The MIT515 is the preferred choice for professionals performing regular insulation monitoring, diagnostics, and commissioning of critical electrical systems.
Available on EnvMart, these Earth Resistance Testers are designed for precise ground resistance and soil resistivity measurements. Megger Earth Resistance Testers offer high accuracy, robust performance, and reliability for electrical and industrial applications.
