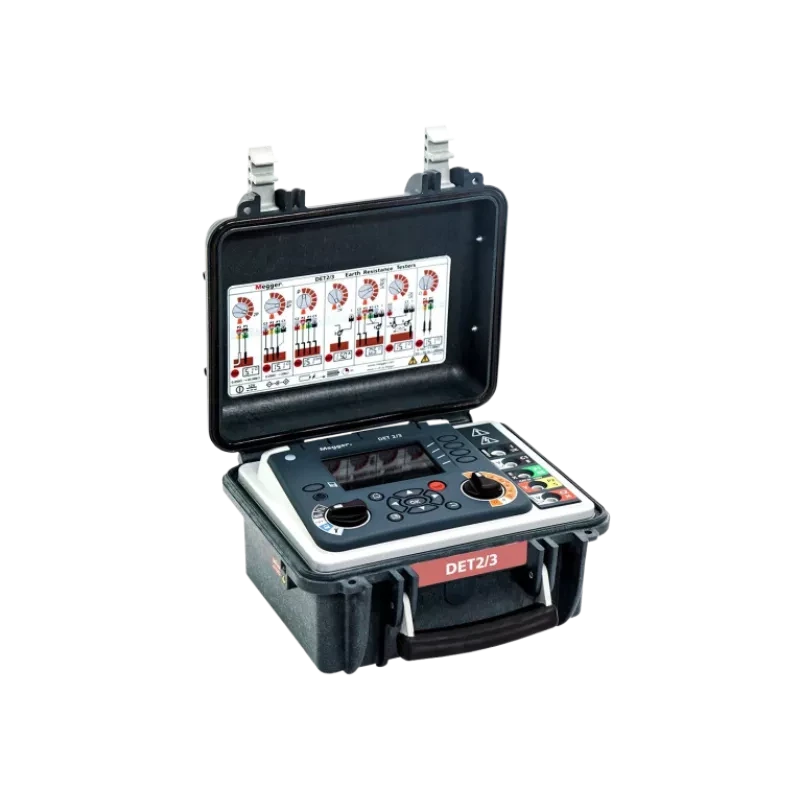

Megger Advanced Earth (Ground) Tester DET2/3
Specifications
| Country of Origin | India |
|---|---|
| Package Contents | Megger DET2/3 Advanced Earth (Ground) Tester / Accessories bag |
| Brand | Megger |
| Power Supply | Internal Li-ion battery / External 12–18 V/ 65 W DC |
| Operating Temperature | -10°C to 40°C |
| Battery Life | Up to 10 hours of use |
| Storage Temperature | -20°C to 60°C |
| Humidity | Max 90% RH at 40°C |
| Altitude | Up to 2000 m above sea level |
| Model | DET2/3 |
| IP Rating | IP54 (lid open)/ IP65 (lid closed) |
| Test Modes | 2P/ 3P/ 4P/ ART (Selective)/ Stakeless (Clamp) |
| Weight | 4.5 kg (9.9 lb) |
| Charging Time | Fast charge to 50% | 3 hours to full charge |
| Safety Standard | Meets IEC 61010 |
| Temperature Coefficient | Less than ±0.1% per °C |
| Data Storage | On board 500 record storage downloadable as *.txt |
| Test Current | Max. 50 mA |
| Dimensions (L × W × H) | 315 × 285 × 181 mm (12.4 × 11.2 × 7.1 in) |
| PC Connectivity | USB 2.0 |
| Leakage Current Range | 0.00 A to 2.00 A |
| Leakage Current Accuracy | ±5% (±3 digits) |
| Test Standards | BS 7430/ BS 62305/ BS EN 50122/ IEEE Standard 81 |
| Resistance Measurement Range | 0.001 Ω to 20.00 kΩ (auto range) |
| EMC Standard | Meets IEC 61326 |
| Measurement Types | 2/ 3/ and 4 pole resistance measurements |
| Display (Main) | Four-digit display |
| Accuracy at 23°C | ±0.5% of reading ±2 digits |
| 3P Accuracy | ±10 mΩ |
| 2P Accuracy | ±20 mΩ |
| Operational Uncertainty | ±2% of reading ±2 digits (spike resistance Less than 100 Ω/ readings Greater than 10 mΩ) | ±5% of reading ±2 digits ±10 mΩ (readings Greater than 50 mΩ) |
| Test Frequency (2P/ 3P/ 4P) | 10 Hz to 200 Hz (0.5 Hz steps) |
| Test Frequency (Dual Clamp/ART) | 70 Hz to 200 Hz (0.5 Hz steps) |
| Max. Output Voltage | Less than 50 V rms |
| Max. Interference Handling | Up to 50 V peak-to-peak |
| ART Resistance Measurement Range | 0.01 Ω to 10.00 kΩ (Auto range) |
| ART Accuracy | ±5% of reading ±3 digits at 23°C ±2°C |
| Stakeless Measurement Range | 0.01 Ω to 200 Ω |
| Stakeless Accuracy | ±7% ±3 digits @ 128 Hz |
| Continuity Range | 0.01 Ω to 1 kΩ (3 digits) |
| Continuity Accuracy | ±3% (±2 digits) |
| Continuity Test Current | 12 V/ 205 mA |
| Lead Null Compensation | Up to 10 Ω |
| Main Display | 5.25-inch QWVGA/ daylight-viewable/ backlit colour |
| Measurement Rating | CAT IV 300 V |
| Output Rating | 50 V/ 50 mA AC (switching DC) |
| Ambient Temp (Charging) | 0°C to 40°C |
| USB Type A | For USB drive data download |
| USB Type B | For PC connection |
| Secondary Display Parameters | Noise/ voltage/ and current |
| Resistivity Calculations | Wenner- PE equal to 2πaRW | Schlumberger- PE equal to πb(b+a)R/a |
| Auxiliary Inputs | MCC1010/ MVC1010 |
| RoHS Compliance | Yes |
Key Features
- Microprocessor-controlled system with error detection
- Large color display showing complete test data
- Adjustable test frequency, voltage, and filtering
- 0.5 Hz frequency resolution for noise elimination
- Auto frequency selection for lowest noise testing
Product Description
The Megger MIT1025 is a top-tier 10 kV insulation resistance tester built for advanced high-voltage testing, diagnostics, and maintenance across power systems, transformers, and heavy electrical machinery. Supporting IR, PI, DAR, DD, SV, and Ramp tests with a resistance range up to 20 TΩ, it offers unmatched flexibility and performance. The onboard memory with USB data export simplifies record keeping, while the built-in real-time clock provides timestamped test data for accurate documentation. Its rugged, dual-case construction, IP65 rating, and CAT IV 600 V safety certification ensure durability and reliability in all conditions. Whether for laboratory diagnostics or field inspection, the MIT1025 provides fast, stable, and precise readings that help detect insulation degradation before failure occurs.
Available on EnvMart, these Earth Resistance Testers are designed for precise ground resistance and soil resistivity measurements. Megger Earth Resistance Testers offer high accuracy, robust performance, and reliability for electrical and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Megger DET2/3 Advanced Earth Tester has a resistance measurement range of 0.001 Ω to 20.00 kΩ with auto-ranging capability.
The Megger DET2/3 supports several test modes including 2P, 3P, 4P, ART (Selective), and Stakeless (Clamp).
The maximum output voltage of the Megger DET2/3 is less than 50 V rms.
The operating temperature range for the Megger DET2/3 is from -10°C to 40°C.
The Megger DET2/3 offers a battery life of up to 10 hours of use on a full charge.
The dimensions of the Megger DET2/3 are 315 mm in length, 285 mm in width, and 181 mm in height.
The Megger DET2/3 can operate in environments with a maximum humidity of 90% RH at 40°C.
The Megger DET2/3 meets the IEC 61010 safety standard and has a measurement rating of CAT IV 300 V.
The Megger DET2/3 includes onboard storage for 500 records, which can be downloaded as .txt files.
The weight of the Megger DET2/3 is 4.5 kg (9.9 lb).
The Megger DET2/3 can handle interference levels of up to 50 V peak-to-peak.
The Megger DET2/3 can be powered by an internal Li-ion battery or an external 12–18 V/ 65 W DC supply.
