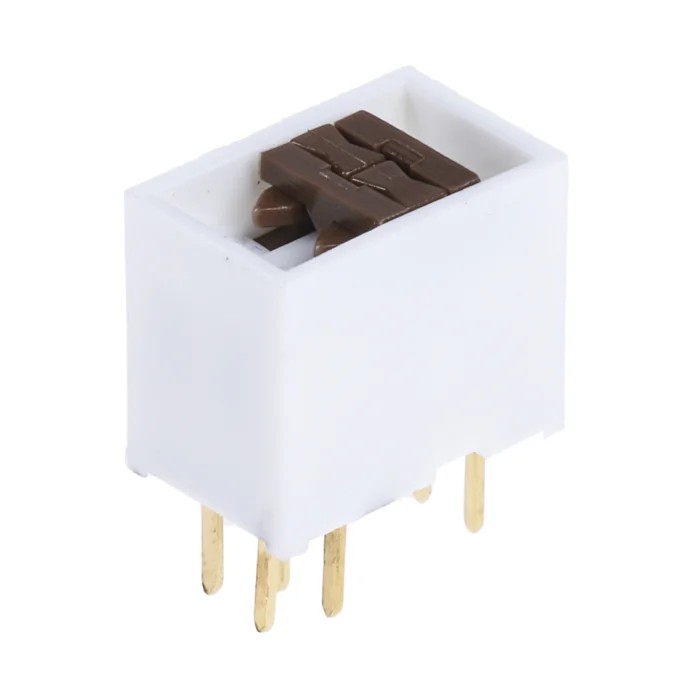

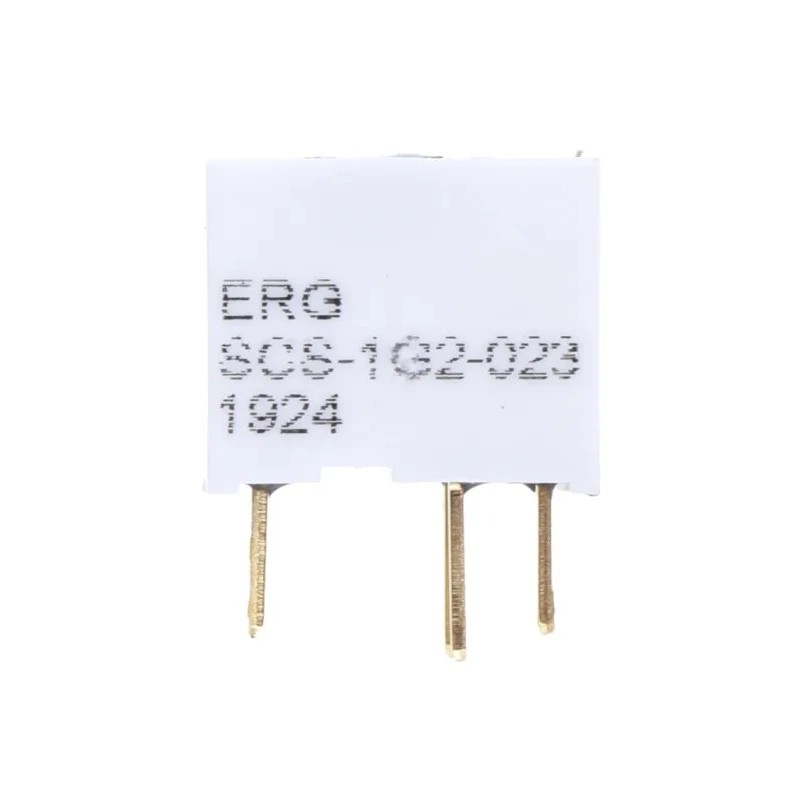

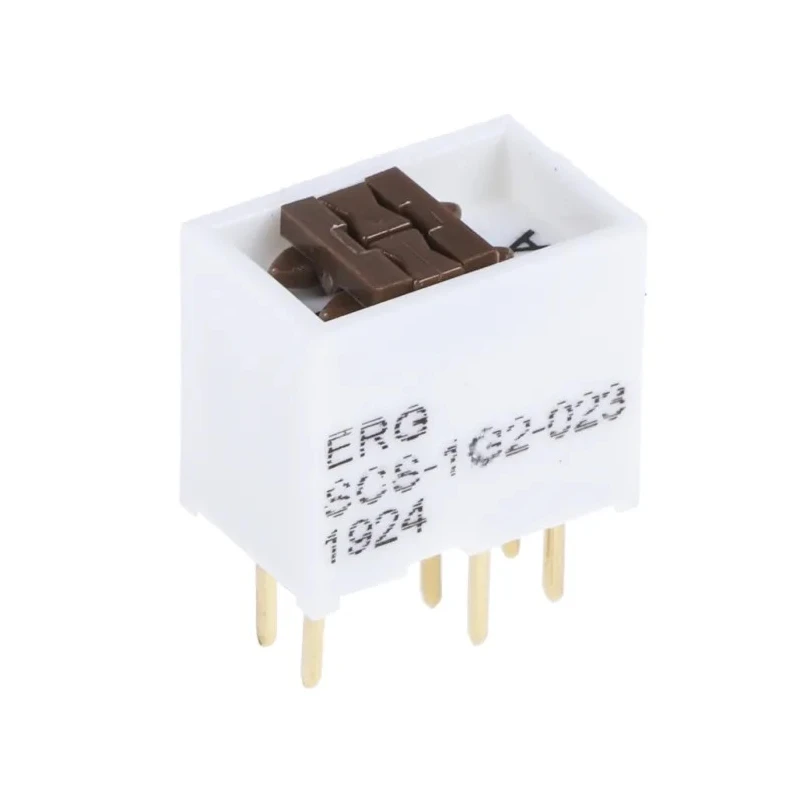

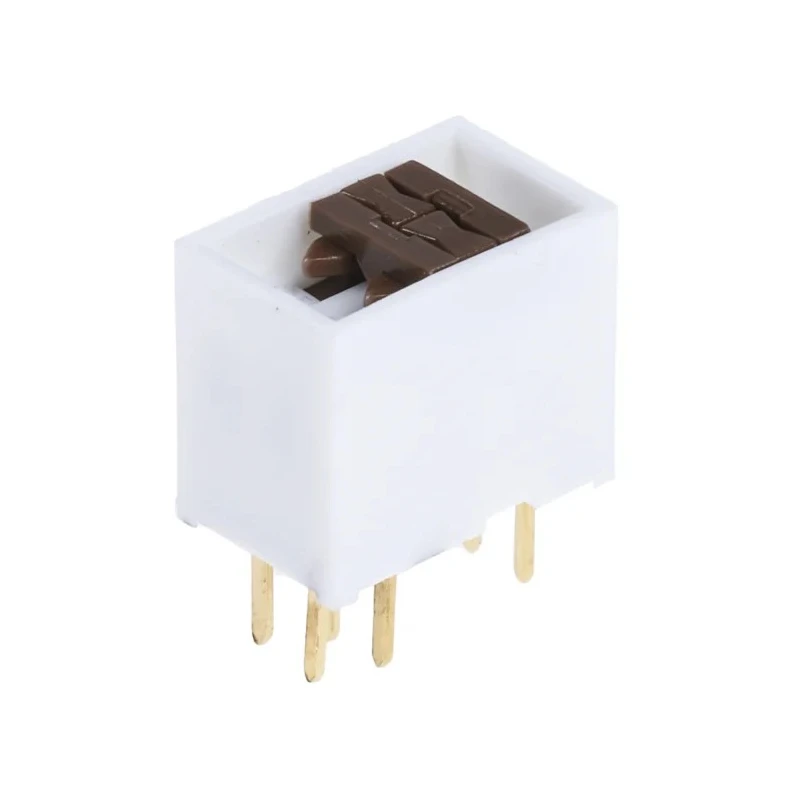

ERG Slide Rotary Coded DIP Switch Through Hole Mount Actuator Slide SCS 1G2 023 STD
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ERG |
| Model | SCS 1G2 023 STD |
| Mount Type | Through Hole |
| Actuator Type | Slide |
Key Features
- The switch is designed as a triple-in-line configuration for compact installation.
- Features 2xSPDT switches ganged together to form a DPDT switch.
- Contacts are gold-plated to ensure low resistance and durability.

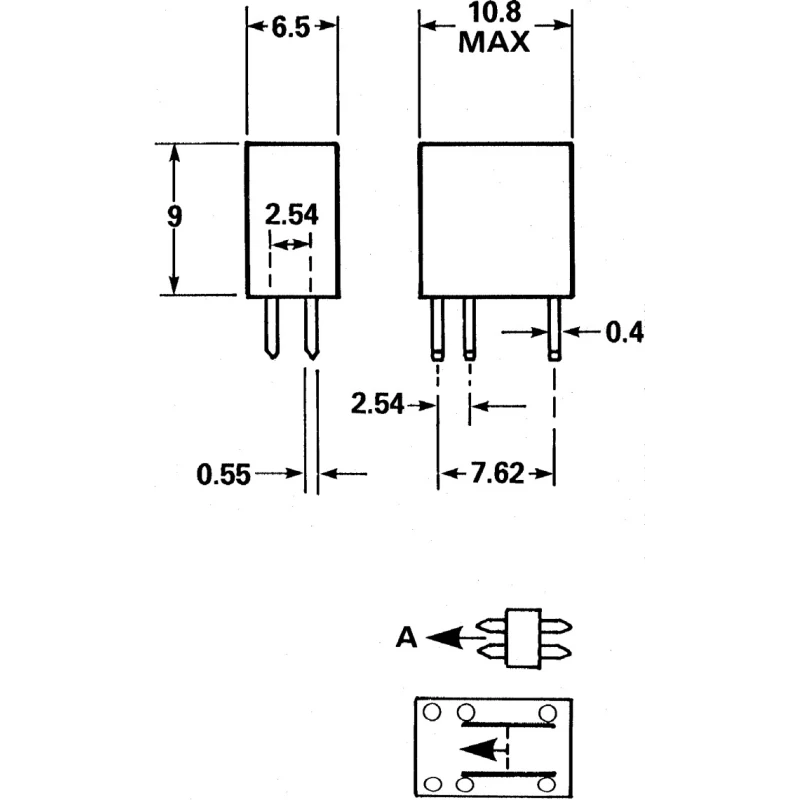

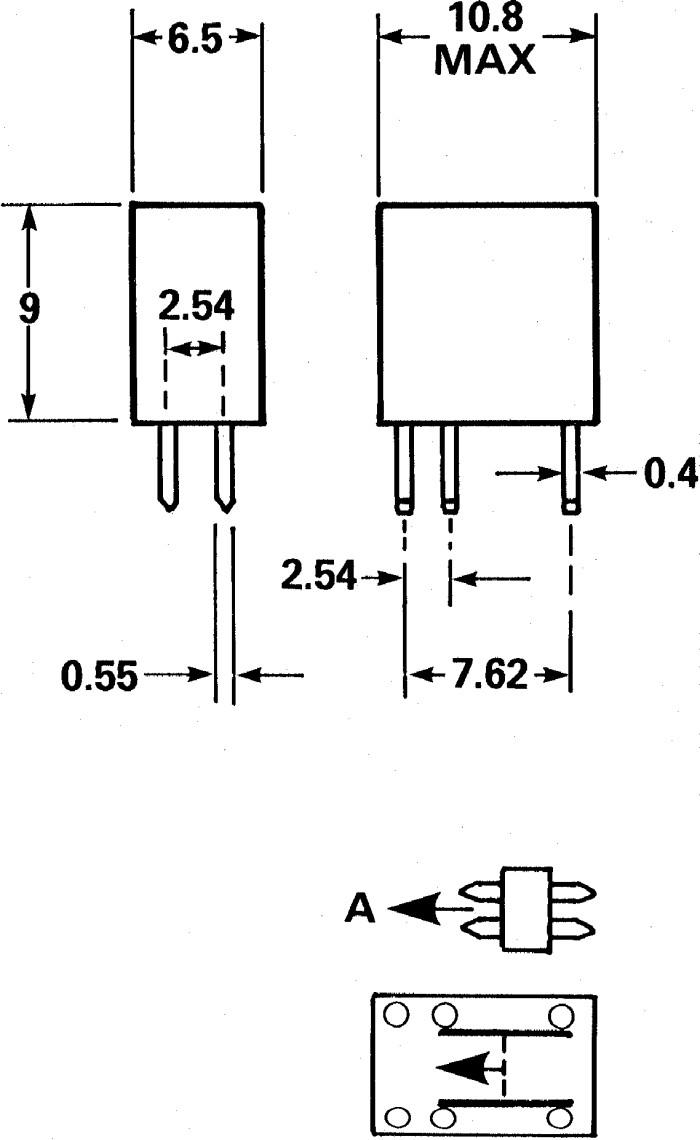

- Compatible with 0.1 inch pitch, center pins acting as common.
- Contact resistance remains stable across -55 to +85 degrees Celsius operating range.
- Switch contacts provide break-before-make operation preventing short circuits.
- Suitable for electrical automation and control applications requiring reliable coded switching.
Product Description
ERG SCS 1G2 023 STD Slide Rotary Coded DIP Switch is a precision electrical component designed for through-hole mounting in circuit boards. This slide actuator switch provides triple-in-line configuration with two SPDT switches ganged to create a double pole double throw (DPDT) switch functionality. The gold-plated contacts enable excellent conductivity and durability, suitable for industrial automation, electrical control panels, and electronic equipment.
The switch features a 0.1 inch pitch, making it compatible with standard PCB designs, where the center pins serve as common terminals. Its break-before-make contact operation prevents electrical shorts during switching, enhancing device safety and reliability. It functions effectively within an operating temperature range of -55 to +85 degrees Celsius, thus capable of withstanding harsh electrical environments.
This ERG Rotary Coded DIP Switch finds applications in automation systems, industrial electronics, robotics controls, HVAC control systems, and other commercial electrical devices where precise and reliable switching is essential. Its slide actuator provides tactile feedback for user control and durability in repeated operations.
The switch is designed as a triple-in-line configuration for compact installation. Features 2xSPDT switches ganged together to form a DPDT switch. Contacts are gold-plated to ensure low resistance and durability. Compatible with 0.1 inch pitch, center pins acting as common.
Contact resistance remains stable across -55 to +85 degrees Celsius operating range. Switch contacts provide break-before-make operation preventing short circuits. Suitable for electrical automation and control applications requiring reliable coded switching.
Designed and manufactured to stringent quality standards in Taiwan, Province Of China, this switch offers dependable performance in a compact form factor. Explore the complete range of rotary encoded DIP switches for varied industrial and electronic applications available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a triple-in-line configuration with two SPDT switches ganged together to create a DPDT switch functionality.
It operates effectively within a temperature range of -55 to +85 degrees Celsius.
This switch is designed for through-hole mounting on circuit boards.
It utilizes a slide actuator for user control and tactile feedback.
The contacts are gold-plated to ensure low resistance and enhance durability.
It is compatible with a 0.1 inch pitch, with center pins acting as common terminals.
The switch contacts provide break-before-make operation, which prevents short circuits during switching.
It is suitable for electrical automation, industrial electronics, robotics controls, and HVAC control systems.
This switch is designed and manufactured in Taiwan, Province Of China.
Key features include a triple-in-line configuration, gold-plated contacts, and compatibility with standard PCB designs.
It is intended for applications requiring reliable coded switching in electrical control panels and electronic equipment.
The slide actuator provides tactile feedback for user control during operation.
