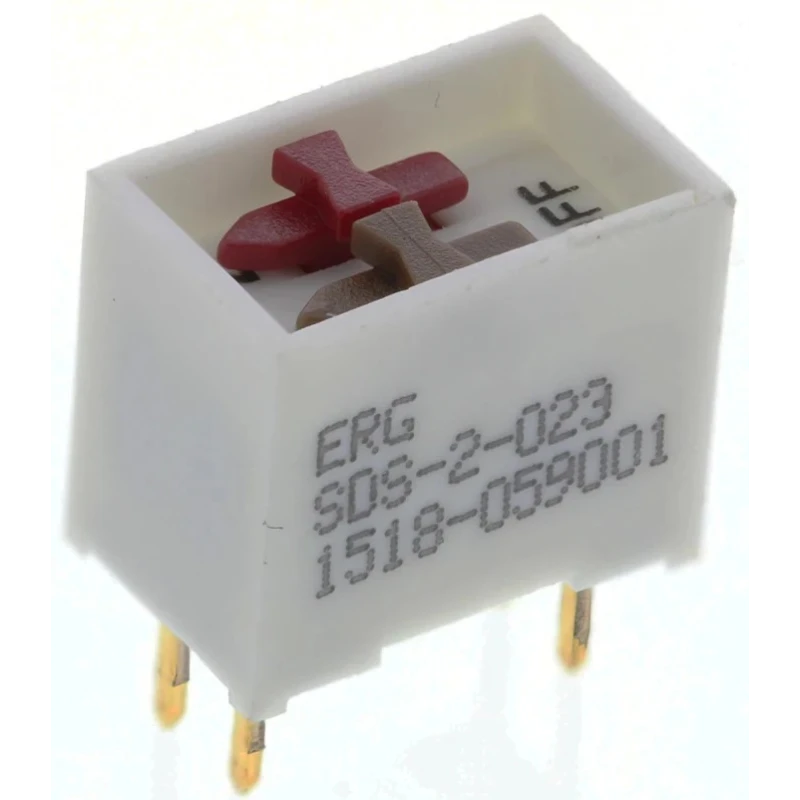

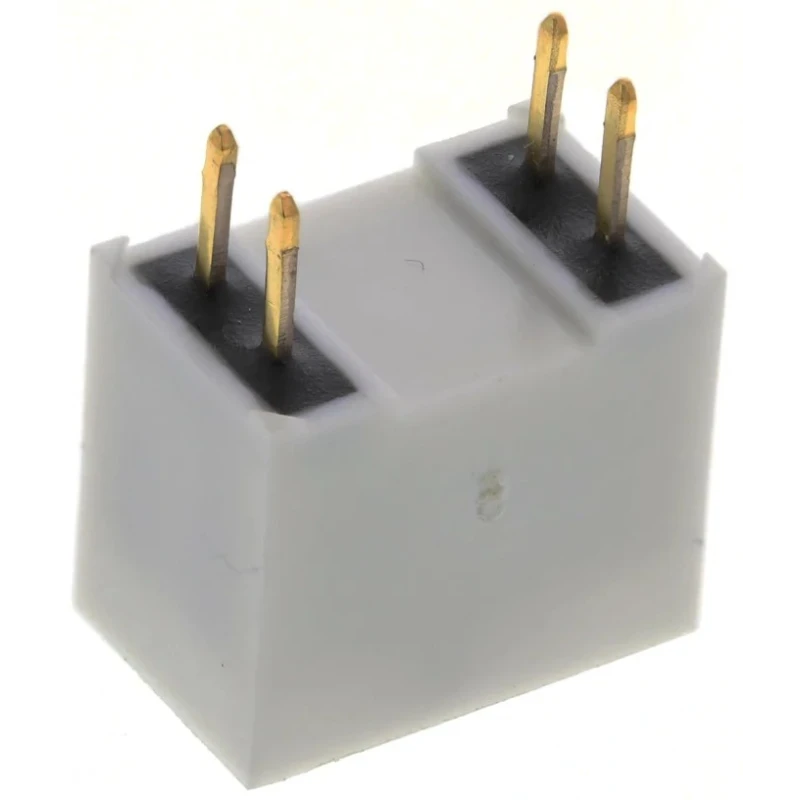

ERG Slide Rotary Coded DIP Switch Through Hole, Slide Actuator, 5A 100Vac, SDS 02 023 STD
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ERG |
| Model | SDS 02 023 STD |
| Mount Type | Through Hole |
| Actuator Type | Slide |
| Contact Resistance | 10mΩ |
| Non switching rating | 5A @ 100Vac |
| ERG Slide Rotary Coded DIP Switch Through HoleBrand | ERG |
Key Features
- Offers accurate rotary coded input for circuit selection and control.
- Features a reliable slide actuator for easy operation.
- Through hole mount ensures secure installation on PCBs.
- Rated for non-switching loads up to 5A at 100Vac.
- Low contact resistance of just 10 milliohms for stable signal transmission.
- Tape sealing prevents cleaning fluid ingress during soldering processes.
- Lateral operating switches support a range of configuration options.
- Ideal for industrial, automation, and electronic applications requiring coded switching.
Product Description
The ERG SDS 02 023 STD Slide Rotary Coded DIP Switch provides dependable coded switching for a variety of electronic and industrial control systems. Designed with a through hole mounting, this DIP switch is easily integrated into printed circuit boards and panels, making it suitable for demanding environments.
Its slide actuator allows effortless manual operation, enabling engineers and technicians to rapidly define circuit logic or configuration.
The switch carries a non-switching rating of 5A at 100Vac, assuring robust performance for moderate current loads. High conductivity is maintained thanks to a contact resistance of just 10 milliohms, ensuring signal integrity and reliable operation. Tape-sealing technology is incorporated to block cleaning fluids during flow soldering, protecting contacts and maintaining longevity in manufacturing environments.
ERG's rotary coded DIP switches are widely used in automation control panels, electronic equipment, programmable logic controllers, and industrial measurement systems. Their through hole format is ideal for traditional PCB assembly, while the slide actuator delivers intuitive and repeatable user interaction. The switch's compact form factor, durable build, and specific coded logic make it optimal for settings that demand both manual programming and electronic signal control.
The ERG SDS 02 023 STD is a proven choice for engineers seeking reliable, coded input in their designs. Discover more rotary coded DIP switches and advanced signal control solutions in EnvMart's Electronics & Electricals catalogue featuring ERG and other leading brands.
Explore more products in our Rotary Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The non-switching rating of this model is 5A at 100Vac.
This model features a slide actuator for easy operation.
It has a contact resistance of just 10 milliohms, ensuring stable signal transmission.
The switch is designed for through hole mounting, making it suitable for secure installation on PCBs.
It is ideal for industrial automation, electronic equipment, programmable logic controllers, and industrial measurement systems.
Tape sealing technology is incorporated to prevent cleaning fluid ingress during soldering processes.
The specific dimensions and weight are not provided in the available data.
Yes, it is designed to be integrated into demanding environments, ensuring reliable operation.
The country of origin for this model is Taiwan.
The slide actuator allows for effortless manual operation, enabling quick configuration adjustments.
It is designed for traditional PCB assembly, ensuring compatibility with standard mounting practices.
Its coded logic and low contact resistance contribute to its effectiveness in electronic signal control applications.
