InnoDisk Networking Module PCIe M.2 to Four RS-232/422/485 Device Server 3.3V, 0.58W Power EGP2-X401-W1

Free Delivery in India | Lowest Global Shipping Charges

InnoDisk Networking Module PCIe M.2 to Four RS-232/422/485 Device Server 3.3V, 0.58W Power EGP2-X401-W1

Name: InnoDisk Networking Module PCIe M.2 to Four RS-232/422/485 Device Server 3.3V, 0.58W Power EGP2-X401-W1
Brand: InnoDisk
SKU: 164444



Category Networking Modules Brand InnoDisk Condition New

Specifications

Country of Origin	Taiwan
Brand	InnoDisk
Height	5.1mm
Length	42.15mm
Model	EGP2-X401-W1
Series	EGP2-X401-W1
Maximum Operating Temperature	85°C
Sub Type	Device Server
Minimum Operating Temperature	-40°C
Interface Type	PCIe
Minimum Supply Voltage	3.3V

Key Features

Supports serial data rates from 4800 bps up to 3 Mbps and RS-232 up to 921.6 Kbps.
Compatible with 16C550 UART and equipped with 256-byte FIFOs.
Features alternative vertical or horizontal connector orientations.

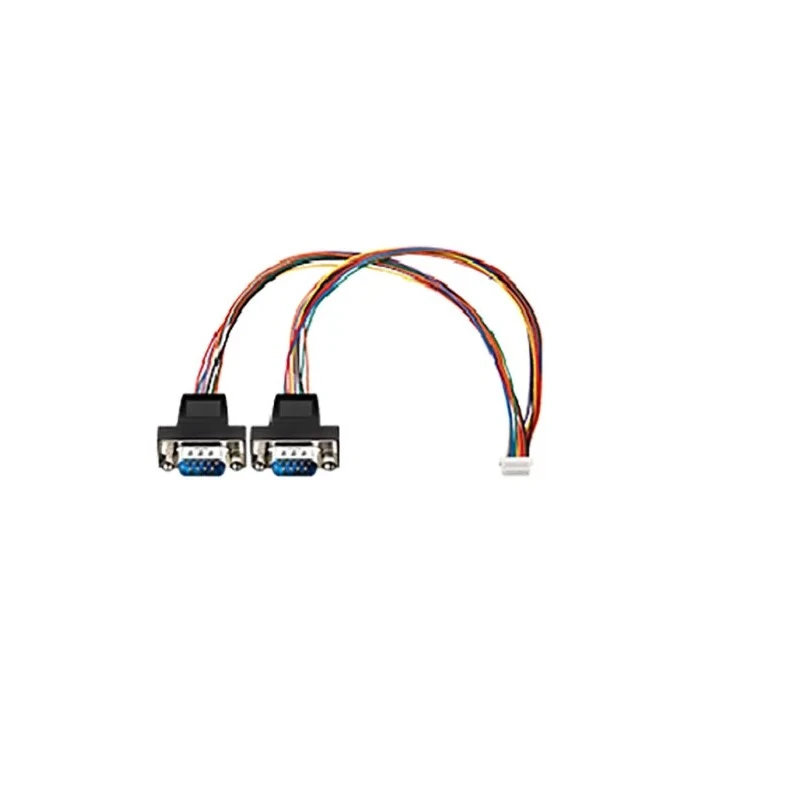

Full RS-232 functionality with DB-9 connectors for reliable communications.
Termination resistor can be enabled or disabled via DIP switch.
Operating temperature range from -40°C to 85°C for industrial environments.
Robust design with a 30μ golden finger interface and a 3-year warranty.

Product Description

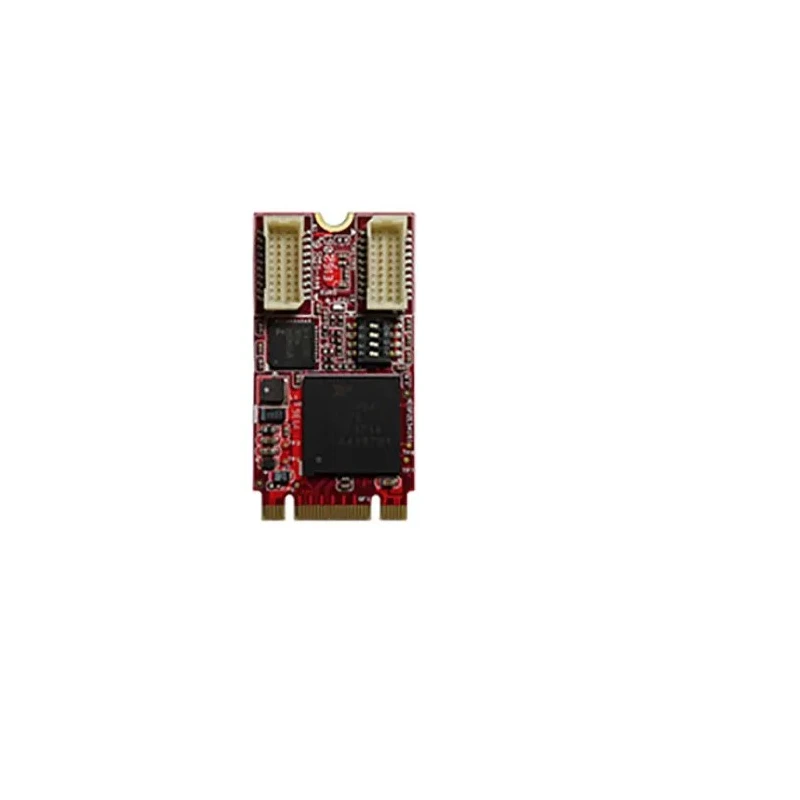

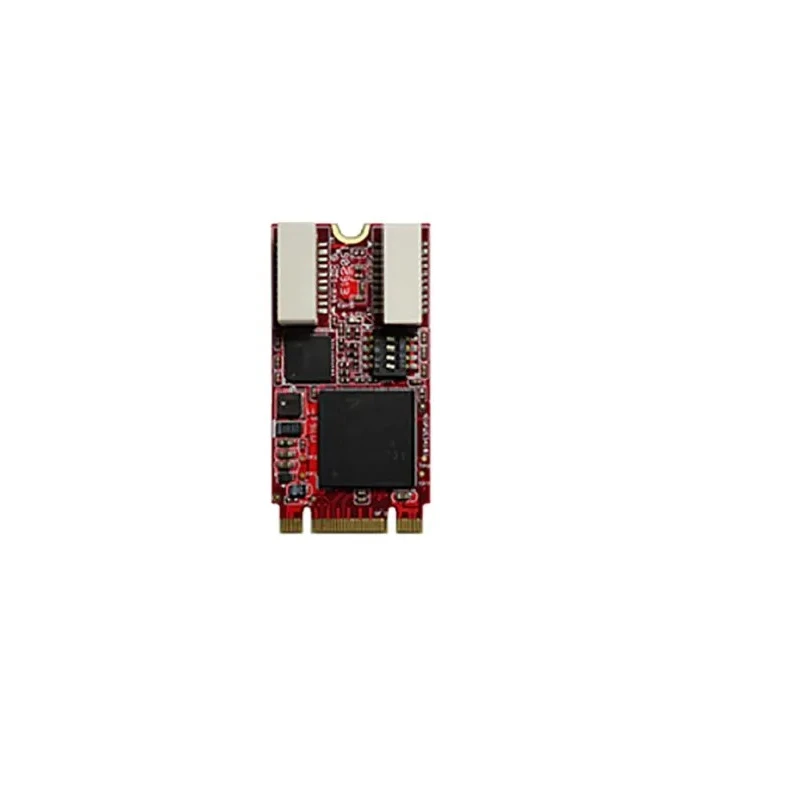

InnoDisk EGP2-X401-W1 Networking Module PCIe is a high-performance device server that converts M.2 interface signals to four independent RS-232/422/485 serial ports, enabling versatile communication in industrial and commercial networking applications. It features PCI Express 2.0 input and four DB-9 connectors for serial output, supporting serial data speeds ranging from 4800 bps to 3 Mbps, with RS-232 speeds up to 921.6 Kbps.

Designed for rugged industrial environments, this module supports operating temperatures from -40°C to 85°C, ensuring reliability under harsh conditions. The module is powered by a stable 3.3V supply and has low power consumption of just 0.58W.

The product includes a 16C550 UART compatible controller with 256-byte FIFOs to handle data efficiently. Users benefit from flexibility with alternative vertical or horizontal connector orientations to suit various system layouts. Full RS-232 functions are provided through DB-9 connectors, and a DIP switch allows enabling or disabling the termination resistor as needed for signal integrity.

This networking module conforms to the EN61000-4-2 standard for electrostatic discharge protection, capable of withstanding air discharges at 15 kV and contact discharges at 8 kV, safeguarding the module and connected equipment.

The compact module size of 42.15 mm length and 5.1 mm height allows integration into constrained spaces while delivering reliable serial communications suitable for industrial automation, data acquisition, telecommunications, and embedded system applications.

Supports wide temperature range and industrial reliability. High-speed serial communication with multiple protocols supported. Versatile connector orientation for flexible system design. ESD protection compliant for enhanced durability.

Compact form factor with robust hardware architecture. Ideal for industrial automation, data communications, and embedded applications. Explore more Networking Modules and industrial electronic components in our categorized collection on EnvMart.
