InnoDisk Networking Module PCIe mPCIe to Four RS422/485 Device Server Industrial Temperature EMP2-X402-W1

Free Delivery in India | Lowest Global Shipping Charges

InnoDisk Networking Module PCIe mPCIe to Four RS422/485 Device Server Industrial Temperature EMP2-X402-W1

Name: InnoDisk Networking Module PCIe mPCIe to Four RS422/485 Device Server Industrial Temperature EMP2-X402-W1
Brand: InnoDisk
SKU: 164433



Category Networking Modules Brand InnoDisk Condition New

Specifications

Country of Origin	Taiwan
Brand	InnoDisk
Height	6mm
Length	50.95mm
Model	EMP2-X402-W1
Series	EMP2-X402
Maximum Operating Temperature	85°C
Sub Type	Device Server
Minimum Operating Temperature	-40°C
Interface Type	PCIe
Minimum Supply Voltage	3.3V

Key Features

Supports 4800 to 3Mbps serial data rate with 16C550 compatibility and 256-byte FIFOs.
Operates under industrial temperature ranges from -40°C to 85°C.
Includes DB-9 connectors on the output side with flexible cabling options.
Provides 485HD (Half Duplex) and 485FD (Full Duplex) support for RS-422/485 communication.
Features termination resistor configurable by jumper setting for signal reliability.
Integrates ESD protection up to 15KV to prevent system damage.
Powered at 3.3V supply voltage with only 0.33W power consumption.
Equipped with 30μ" golden finger for enhanced connectivity and durability.

Product Description

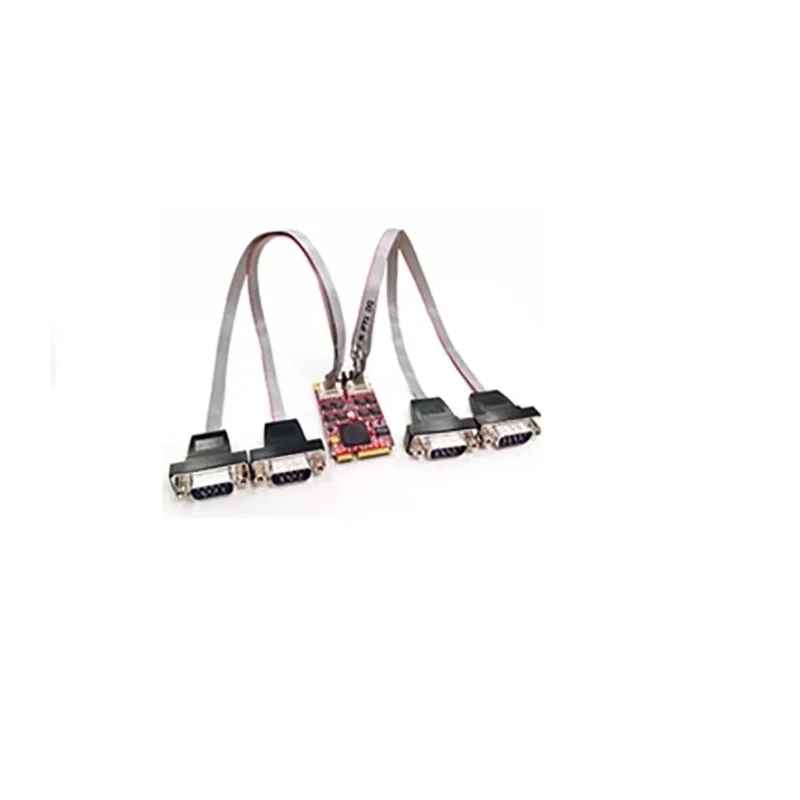

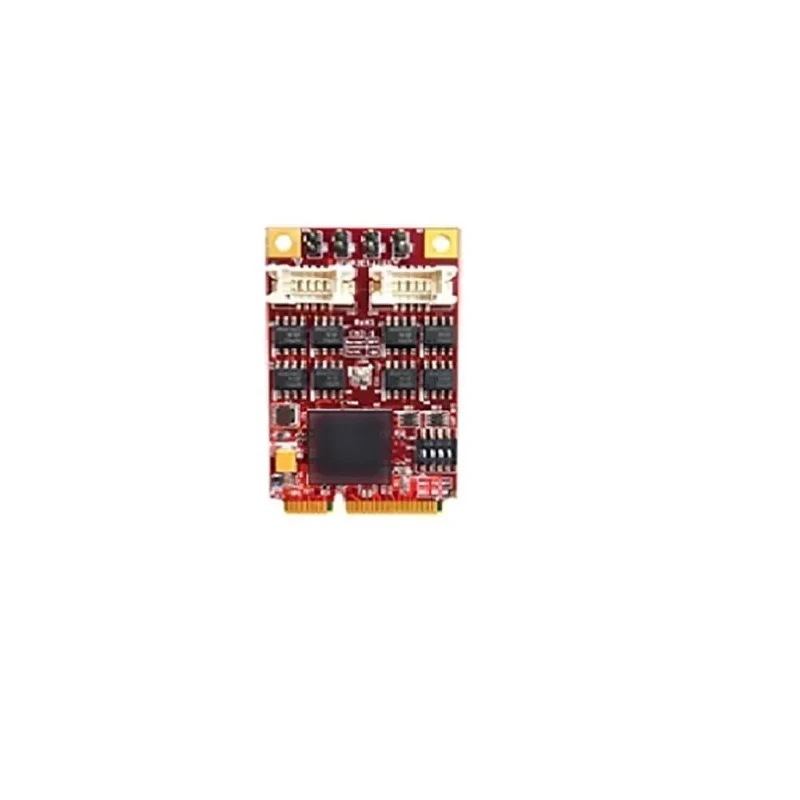

InnoDisk EMP2-X402-W1 Networking Module PCIe is a high-performance industrial networking device designed as an mPCIe to four RS422/485 module. It utilizes PCI Express 2.0 x1 interface input while offering RS-422/485 outputs via DB-9 connectors, providing flexible and robust communication solutions in demanding industrial environments.

This device supports serial data rates ranging from 4800 bps up to 3 Mbps and is fully compatible with 16C550 UART standards, featuring 256-byte FIFOs for efficient data buffering. The industrial operating temperature range of -40°C to 85°C ensures reliable functionality even in extreme conditions.

The module supports both 485HD (Half Duplex) and 485FD (Full Duplex) communication modes, allowing versatile serial communication capabilities. Termination resistors are configurable via jumper settings to optimize signal integrity according to installation needs.

Robust design aspects include integrated Electrostatic Discharge (ESD) protection circuits capable of withstanding up to 15KV, protecting the system from electrostatic damage. The board draws a minimal power of 0.33W at 3.3V supply while utilizing a 30-micron gold finger connector to ensure high-quality signal transmission and long-lasting durability.

Supports 485HD and 485FD RS-422/485 modes for half and full duplex communication. Operates reliably from -40°C to 85°C for industrial applications. Power consumption is low at 0.33 watts, powered by 3.3V supply. Feature-rich design with jumper-configurable termination resistors and DB-9 connectors.

ESD protection up to 15KV enhances device and system safety. This networking module is ideal for industrial networking, automation, and communication infrastructure, providing a reliable serial interface solution with PCIe connectivity.
