WIZnet Inc Networking Module Ethernet Card MCU Interface 50 Mbps WIZ830MJ

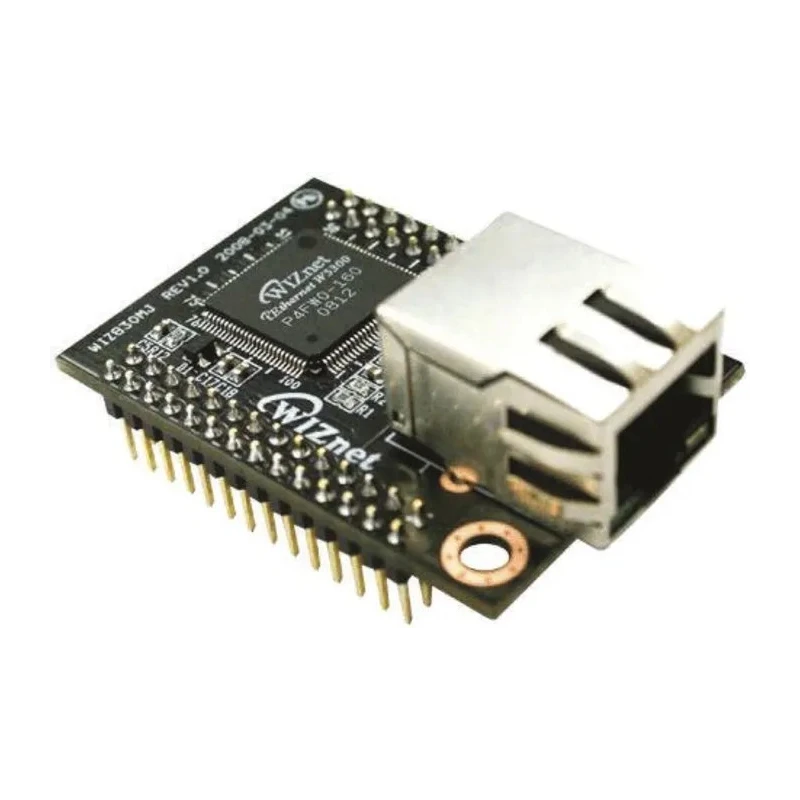

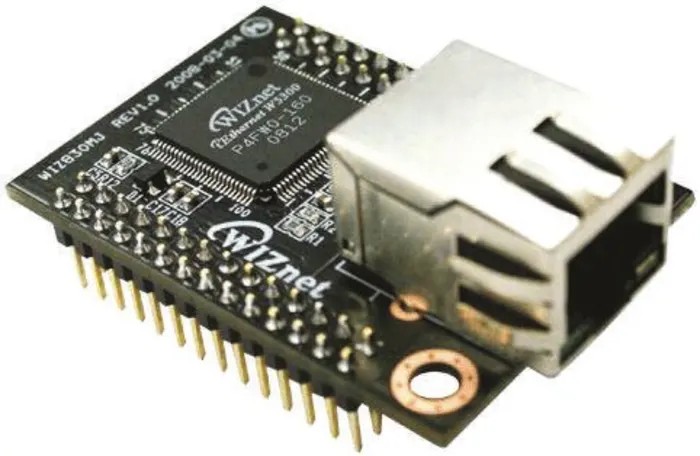

WIZnet Inc WIZ830MJ networking module is an Ethernet card with MCU interface delivering a data rate of 50 Mbps. This module features the W5300 network chip integrated with a transformer and an RJ45 connector, allowing direct plug-in use without the need for additional hardware design for W5300. It supports up to 8 independent connections simultaneously, making it suitable for complex networked embedded applications.

The module operates within a temperature range from 0°C up to 70°C, ensuring durability in demanding industrial environments. It supports both 16-bit and 8-bit data bus widths and offers compatibility with MCU BUS interface protocols. Memory to Memory DMA support enhances data transfer efficiency, reducing CPU load in embedded systems.

This networking module is designed for fast evaluation on target boards with the W5300 and MCU, facilitating rapid development cycles. The compact module measures 50mm in length and 13.5mm in height, making it easy to integrate into various industrial and electronic devices where Ethernet connectivity is required.

The WIZ830MJ module finds application in communication systems, industrial automation, embedded networking solutions, and other electronics requiring reliable Ethernet interface performance.

This module supports 8 independent connections simultaneously. Compatible with MCU BUS Interface and supports 16/8 bit data bus width. Plug-in design includes W5300 chip with transformer and RJ45 connector. Operates within temperature range of 0°C to 70°C for stable network performance.

Supports Memory to Memory DMA for improved data handling. Ideal for industrial and embedded Ethernet network applications. Explore more Networking Modules and Ethernet solutions at EnvMart.
