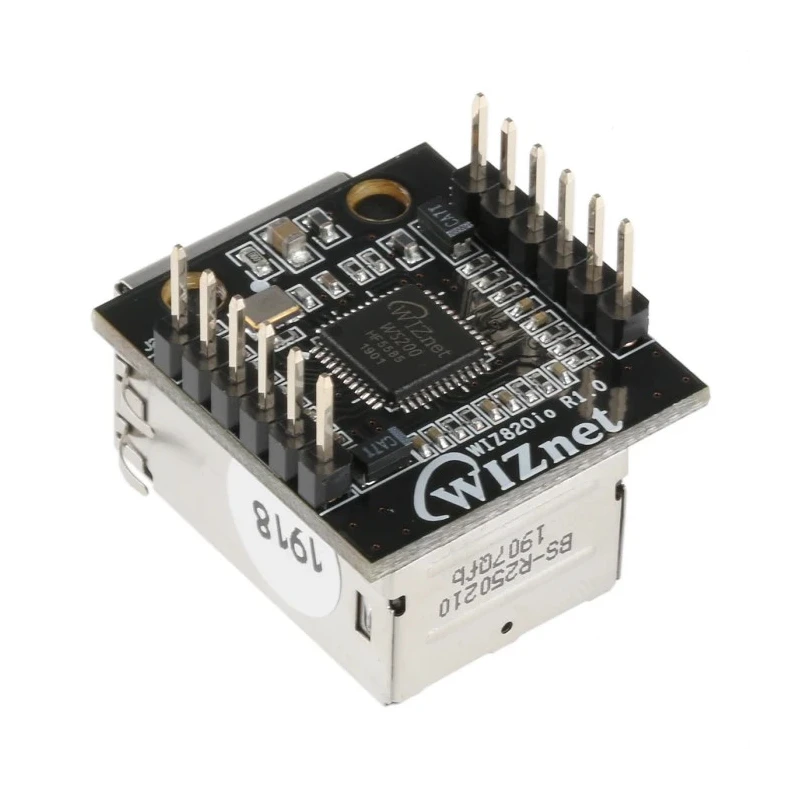

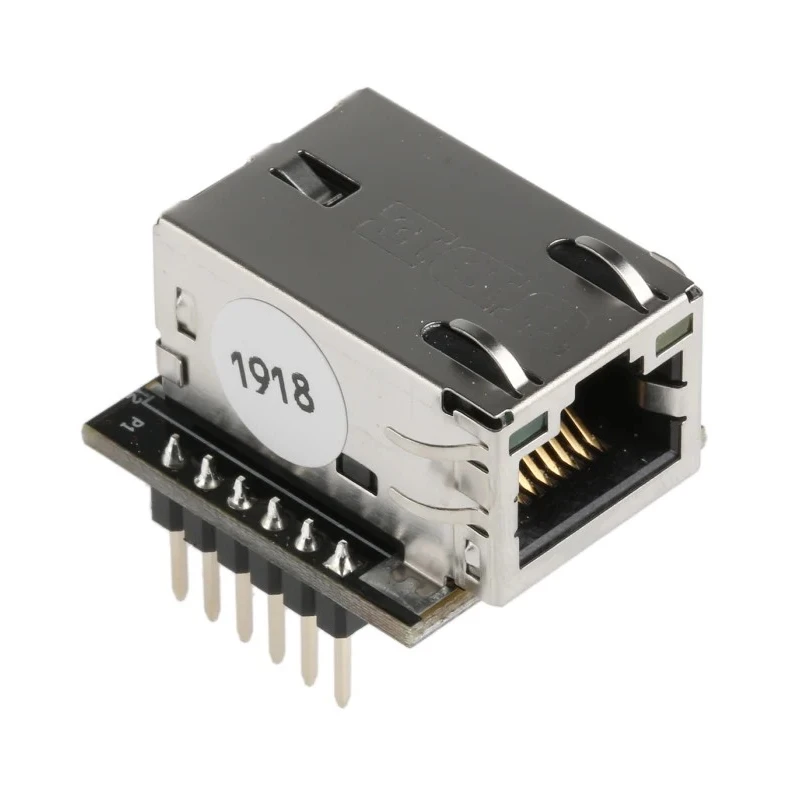

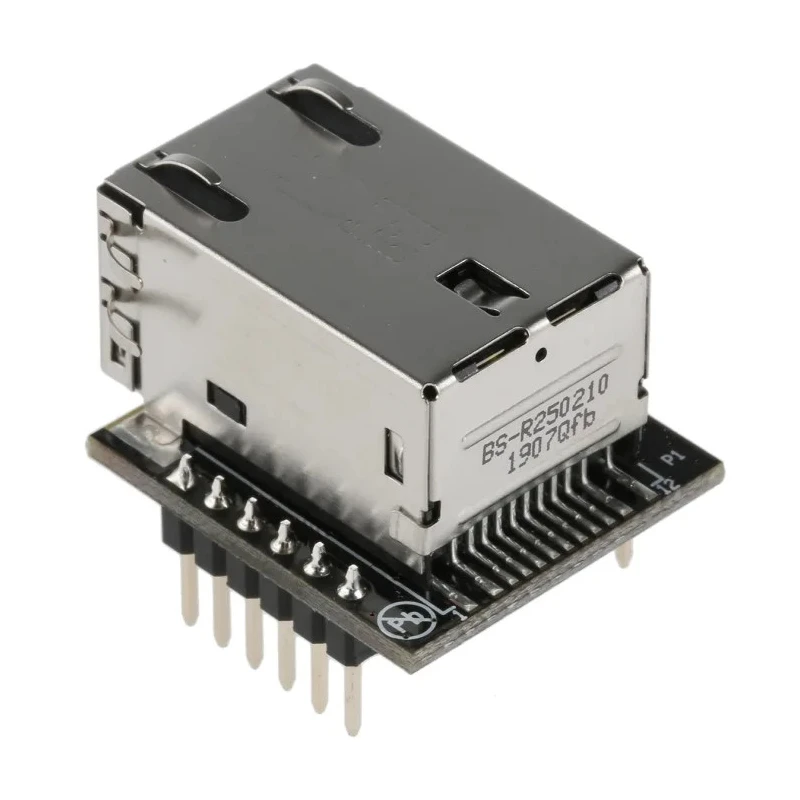

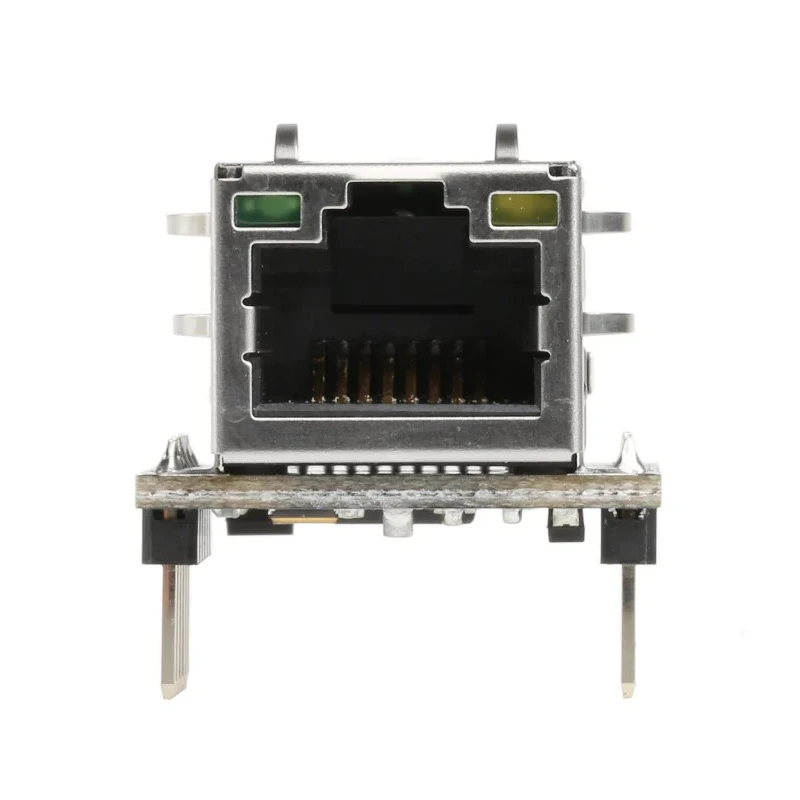

WIZnet Inc Networking Module Ethernet Card 80 MHz 10/100 Base-TX 3.3-5V WIZ820io
Specifications
| Country of Origin | Korea |
|---|---|
| Frequency | 80MHz |
| Brand | WIZnet Inc |
| Length | 23mm |
| Model | WIZ820io |
| Series | WIZ820io |
| Sub Type | Ethernet Card |
| Interfaces | LAN function |
| Interface Type | 10/100 Base-TX |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Very small form factor (PCB size | 23mm x 25mm) |
Key Features
- Compact network module integrating W5200 TCP/IP & Ethernet MAC & PHY and MAG-JACK with transformer.
- Plug-in module usable without hardware design for W5200, transformer, and RJ-45 connector.
- Supports high-speed SPI interface and 8 hardware sockets enabling efficient communication.
- Features power down mode and Wake-on-LAN function for power saving and remote wakeup.
- Very small form factor with PCB size 23mm x 25mm ideal for embedded applications.
- Designed for rapid development of Internet-enabled systems with minimal interfacing effort.
- Operating frequency of 80 MHz and stable 10/100 Mbps Ethernet connectivity.
- Suitable for use in industrial communication, networking, and embedded Ethernet applications.
Product Description
WIZnet Inc WIZ820io Networking Module Ethernet Card operates at 80 MHz frequency with an interface type of 10/100 Base-TX, supporting minimum supply voltage of 3.3V and maximum supply voltage of 5V. This compact networking module incorporates the W5200 TCP/IP & Ethernet MAC & PHY controller embedded with MAG-JACK (RJ45 with transformer) and other glue logic, eliminating the need for additional hardware design for interfacing.
The WIZ820io module is an ideal plug-in component for users aiming to quickly develop Internet-enabled systems. It supports a high-speed SPI interface allowing efficient data communication and offers 8 hardware sockets to handle multiple simultaneous connections.
The module includes advanced features such as power down mode to reduce energy consumption and Wake-on-LAN functionality for remote device activation. Its very small PCB size of 23mm by 25mm allows integration into space-constrained embedded applications.
Designed primarily for Ethernet connectivity, it provides stable 10/100 Mbps Base-TX communication, suitable for industrial, commercial, and embedded networking applications. The compact size and plug-and-play capability facilitate fast evaluation with microcontroller units (MCUs) on target boards.
Compact network module integrating W5200 TCP/IP & Ethernet MAC & PHY and MAG-JACK with transformer. Plug-in module usable without hardware design for W5200, transformer, and RJ-45 connector. Supports high-speed SPI interface and 8 hardware sockets enabling efficient communication.
Features power down mode and Wake-on-LAN function for power saving and remote wakeup. Very small form factor with PCB size 23mm x 25mm ideal for embedded applications. Designed for rapid development of Internet-enabled systems with minimal interfacing effort.
Operating frequency of 80 MHz and stable 10/100 Mbps Ethernet connectivity. Suitable for use in industrial communication, networking, and embedded Ethernet applications.
This networking module from WIZnet Inc is manufactured in Korea, Republic Of, ensuring quality and reliability for demanding industrial and communication applications. EnvMart offers this component within the Electronics & Electricals category, tailored for professionals seeking compact and efficient networking solutions.
Explore more products in our Networking Modules category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The WIZ820io module operates at a frequency of 80 MHz.
The PCB size of the WIZ820io is 23mm x 25mm, making it suitable for space-constrained applications.
This model supports a minimum supply voltage of 3.3V and a maximum supply voltage of 5V.
It provides stable 10/100 Mbps Ethernet connectivity through a 10/100 Base-TX interface.
The module supports 8 hardware sockets, allowing for multiple simultaneous connections.
It includes a power down mode for energy savings and a Wake-on-LAN function for remote activation.
This networking module is suitable for industrial communication, networking, and embedded Ethernet applications.
It uses a high-speed SPI interface for efficient data communication.
The WIZ820io module is manufactured in the Republic of Korea.
No additional hardware design is needed for interfacing with the W5200, transformer, and RJ-45 connector as it integrates these components.
The primary function of this module is to enable rapid development of Internet-enabled systems with minimal interfacing effort.
The module features a MAG-JACK, which is an RJ-45 connector with an integrated transformer.
