InnoDisk Networking Module PCIe to Dual USB 3.0 SuperSpeed 5Gbps, 3.3V, 1.12W, 50.9mm x 8.45mm EMPU-3401-C1

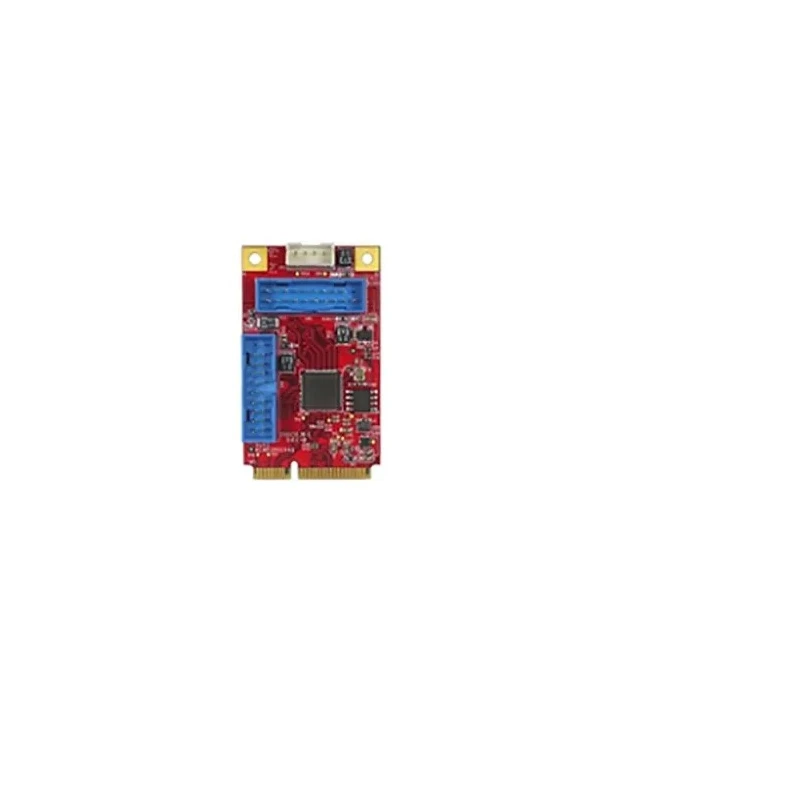

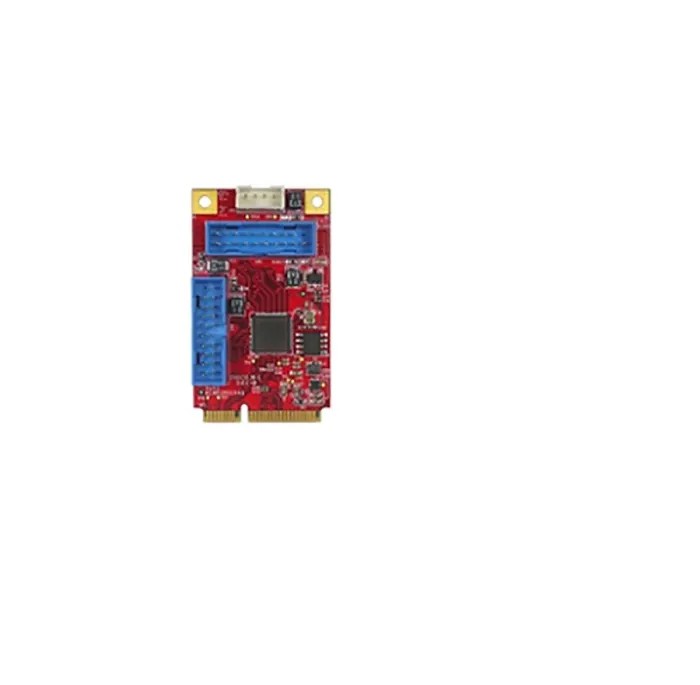

InnoDisk EMPU-3401-C1 Networking Module PCIe is a device server that converts PCI Express 2.0 interface into four USB 3.0 SuperSpeed ports delivering data transfer rates up to 5Gbps. It operates at a supply voltage of 3.3V and consumes low power at 1.12W, making it suitable for energy-efficient embedded applications.

This compact module measures 50.9mm in length and 8.45mm in height, allowing easy integration into industrial and embedded systems where space constraints are present. Rated for operation between -40°C and 85°C, the module offers robust performance across a wide temperature range suitable for industrial, laboratory, and commercial environments.

Each USB port comes with independent 1.5A overcurrent protection (OCP), ensuring safe operation by preventing damage caused by excessive current. It supports compliance with xHCI 1.0 and USB 3.0 Rev 1.0 protocols, guaranteeing compatibility with a broad range of USB devices and systems.

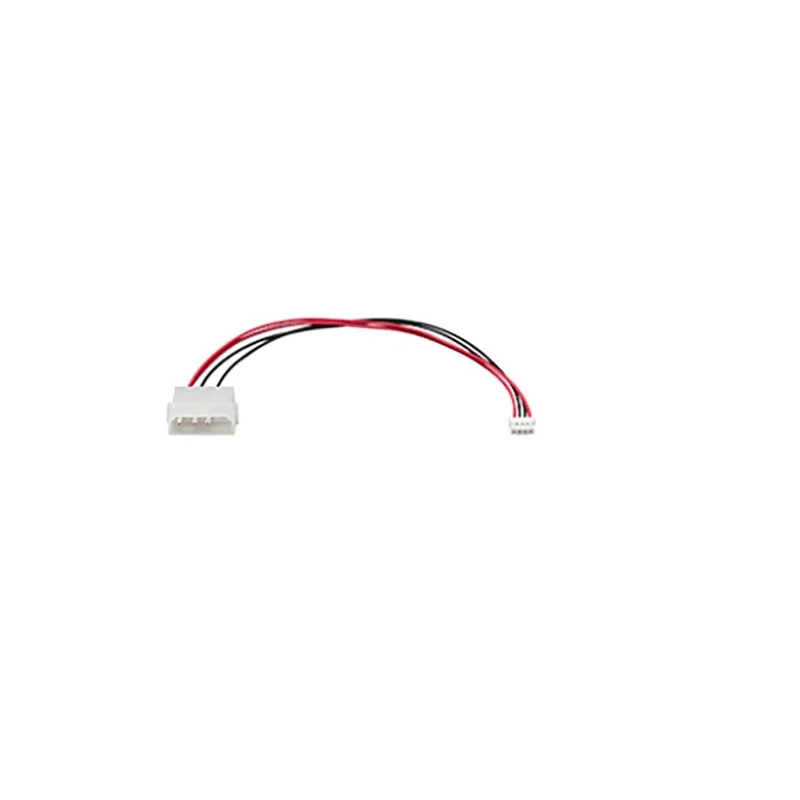

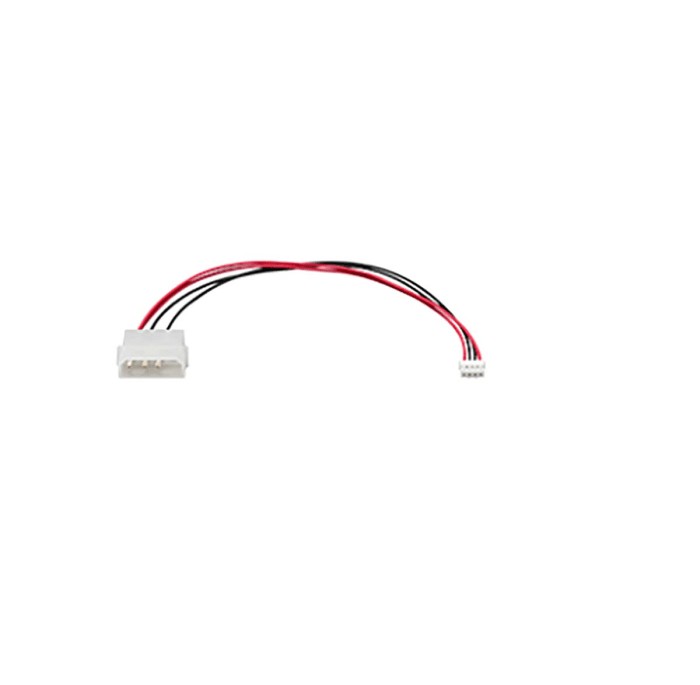

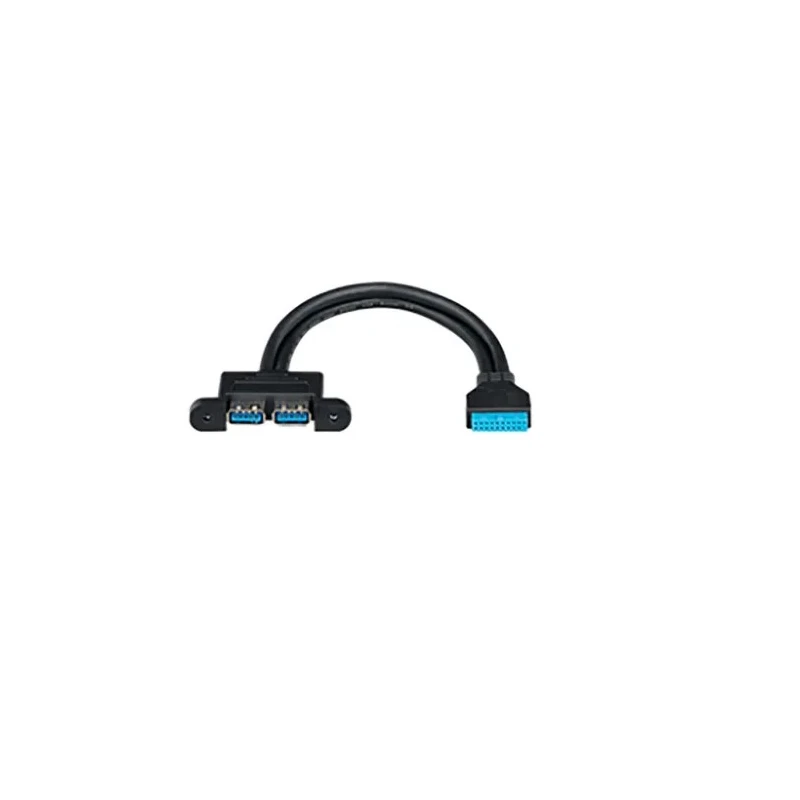

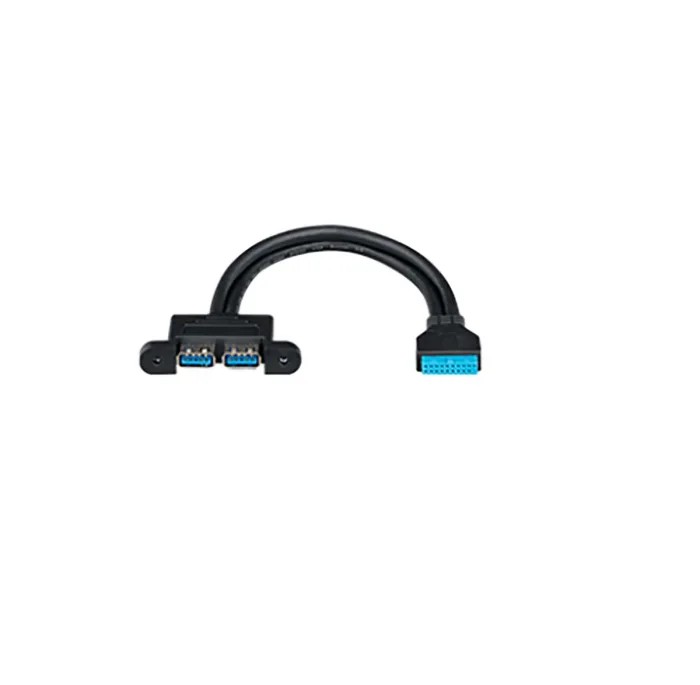

The output connector includes a 19-box header paired with a 30μ gold finger which ensures reliable and durable electrical connections. The design includes two USB ports from CN1 that provide limited power natively, and two USB ports from CN2 that require external power sources, supporting the USB Battery Charging Specification Revision 1.2 for enhanced charging capabilities.

Supports four USB 3.0 SuperSpeed ports with 5Gbps data transfer rate. Independent 1.5A overcurrent protection on each port for device safety. Wide operating temperature range from -40°C to +85°C for harsh environments. Compact form factor measuring 50.9mm x 8.45mm for embedded system integration.

Compliance with industry standards xHCI 1.0 and USB 3.0 Rev 1.0 ensures broad compatibility. Dual USB ports provide native and externally powered options for flexible usage. Robust 19-box header and 30μ gold finger connectors for secure electrical interfacing.

Low power consumption rated at 1.12W for energy-efficient operation.

This module is ideal for industrial automation, embedded computing, network infrastructure, and upgrade of legacy PCIe systems with modern USB 3.0 connectivity. It supports data communication, peripheral expansion, and charging functionality in demanding industrial and commercial applications.
