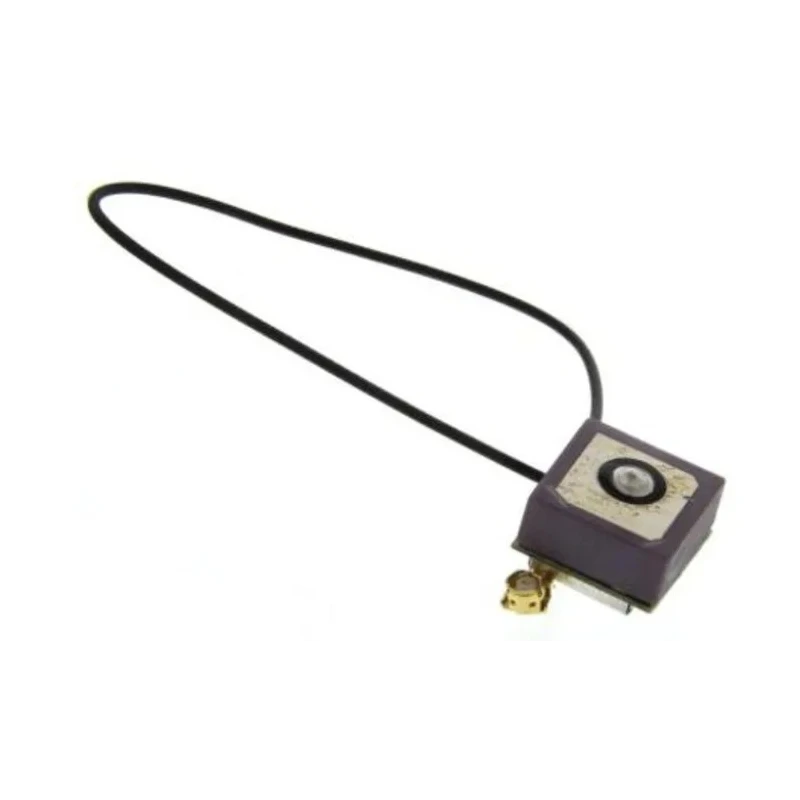

CTi Patch Omni-Directional GPS Antenna with UFL Connector 3.3V 18dBi Gain GPS_MOD/10X4/UFL0-04
Specifications
| Country of Origin | China |
|---|---|
| Frequency | 1575MHz |
| Brand | CTi |
| Model | GPS_MOD/10X4/UFL0-04 |
| Connector Type | UFL |
| Series | GPS_MOD |
| Polarization | Right-Handed Circular |
| Gain | 18dBi |
| Lead Length | 1130mm |
| Impedance | 50? |
| Supply Voltage | 3.3V |
| Standards/Approvals | RoHS |
| RF Protocols | GPS |
| Antenna Physical Form | Patch |
| Antenna Mount Type | Direct |
| Directivity | Omni-Directional |
| LNA Gain | 18dB Nominal |
Key Features
- The antenna features a compact patch physical form suitable for direct mounting.
- It includes a 1130 mm lead length for versatile installation options.
- Omni-directional directivity offers consistent GPS signal reception from all directions.
- The GPS antenna operates at a frequency of 1575 MHz with 18 dBi gain for optimal performance.
- Polarization is right-handed circular to enhance signal clarity and minimize interference.
- The antenna uses a UFL connector type compatible with standard GPS modules.
- It has a supply voltage of 3.3 V and nominal LNA gain of 18 dB for improved sensitivity.
- Impedance is 50 ohms ensuring proper RF matching and signal integrity.
Product Description
CTi GPS_MOD/10X4/UFL0-04 is a highly reliable patch type GPS antenna featuring omni-directional directivity and equipped with a UFL connector, operating at 3.3V supply voltage and delivering an LNA gain of 18 dB. This compact 12mm x 12mm x 4mm antenna module is engineered for precise GPS signal reception in various industrial and commercial applications.
The antenna's right-handed circular polarization optimizes signal reception quality and reduces multipath errors. Its 1130 mm lead length allows flexible installation in embedded systems and GPS modules.
This GPS antenna supports the GPS frequency of 1575 MHz and has an impedance of 50 ohms, ensuring efficient RF matching and superior signal integrity. The antenna is RoHS compliant, meeting environmental and safety standards.
Its patch physical form is ideal for direct mount configurations, making it suitable for use in industrial, automotive, aerospace, agricultural, and communication systems requiring reliable GPS signal acquisition.
The antenna features a compact patch physical form suitable for direct mounting. It includes a 1130 mm lead length for versatile installation options. Omni-directional directivity offers consistent GPS signal reception from all directions.
The GPS antenna operates at a frequency of 1575 MHz with 18 dBi gain for optimal performance. Polarization is right-handed circular to enhance signal clarity and minimize interference. The antenna uses a UFL connector type compatible with standard GPS modules.
It has a supply voltage of 3.3 V and nominal LNA gain of 18 dB for improved sensitivity. Impedance is 50 ohms ensuring proper RF matching and signal integrity. Designed to comply with RoHS standards for environmental safety.
This CTi GPS_MOD/10X4/UFL0-04 antenna is intended for critical GPS applications requiring stable and high-performance signal reception and is widely used across electronic components, GPS navigation systems, surveying, mapping, and communication industries. Discover more specialized GPS Antennas and related components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The antenna operates at a frequency of 1575 MHz, which is standard for GPS applications.
It has a gain of 18 dBi, which enhances its performance in receiving GPS signals.
This model features a UFL connector type, which is compatible with standard GPS modules.
The antenna requires a supply voltage of 3.3 V for proper operation.
It includes a lead length of 1130 mm, allowing for flexible installation options.
The impedance is 50 ohms, ensuring efficient RF matching and signal integrity.
This model has a compact patch physical form, making it suitable for direct mounting.
It features omni-directional directivity, which allows for consistent GPS signal reception from all directions.
The antenna uses right-handed circular polarization to enhance signal clarity and minimize interference.
Yes, it is RoHS compliant, meeting environmental and safety standards.
It is widely used in industrial, automotive, aerospace, agricultural, and communication systems requiring reliable GPS signal acquisition.
The nominal LNA gain is 18 dB, which improves the antenna's sensitivity.
