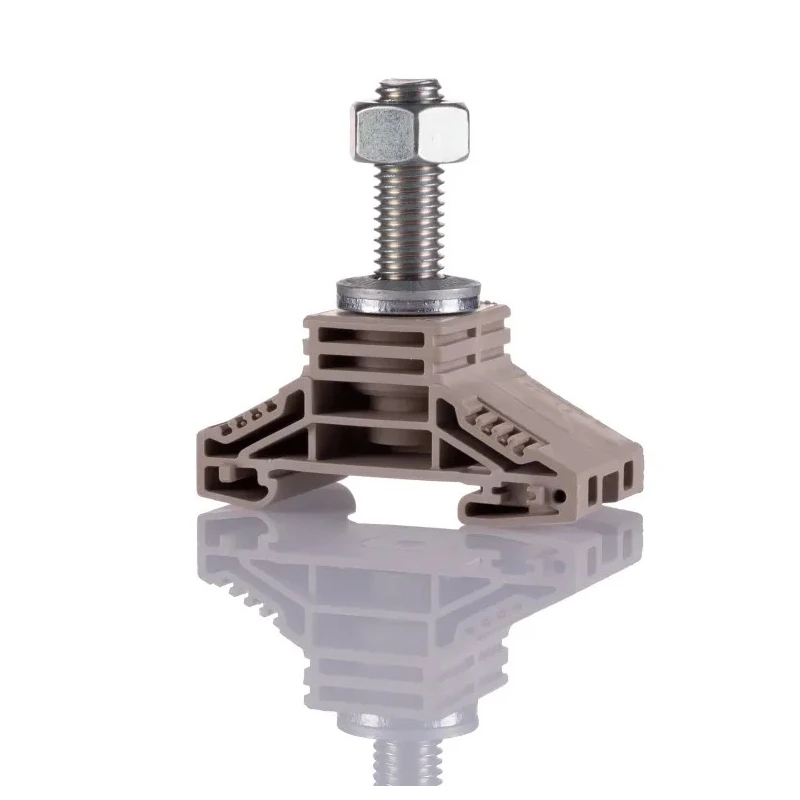

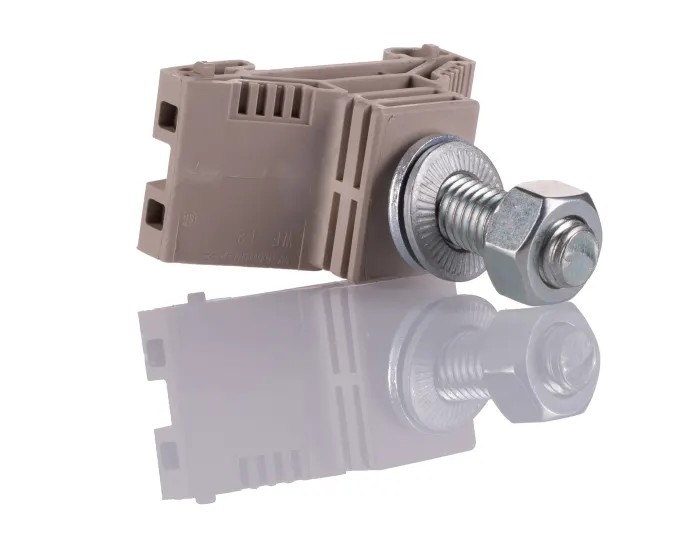

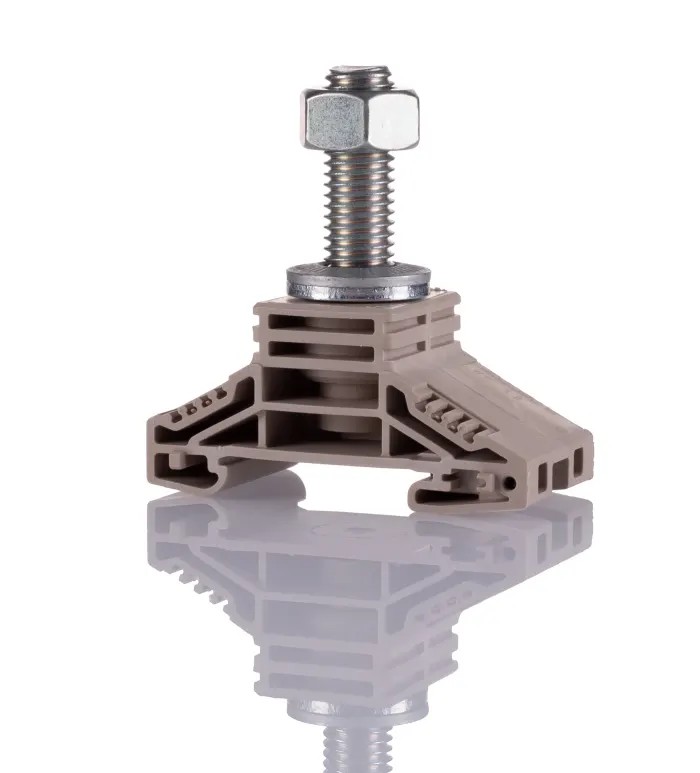

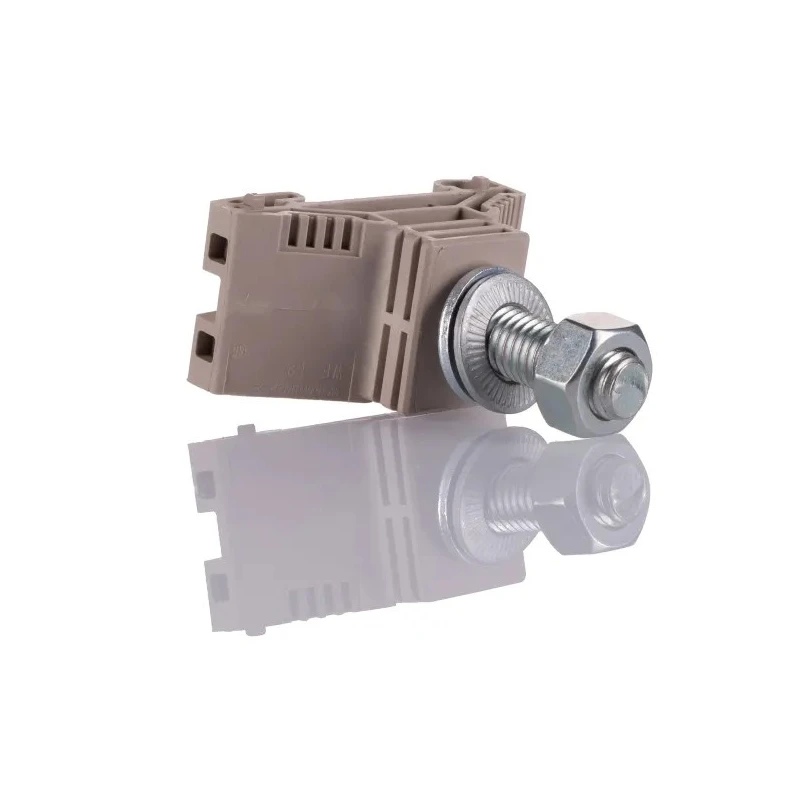

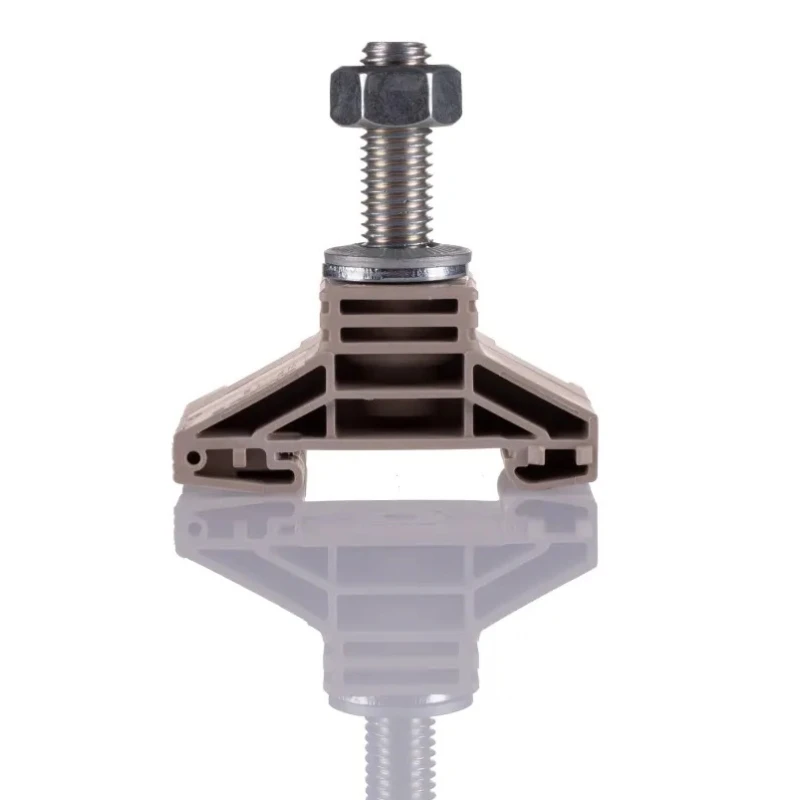

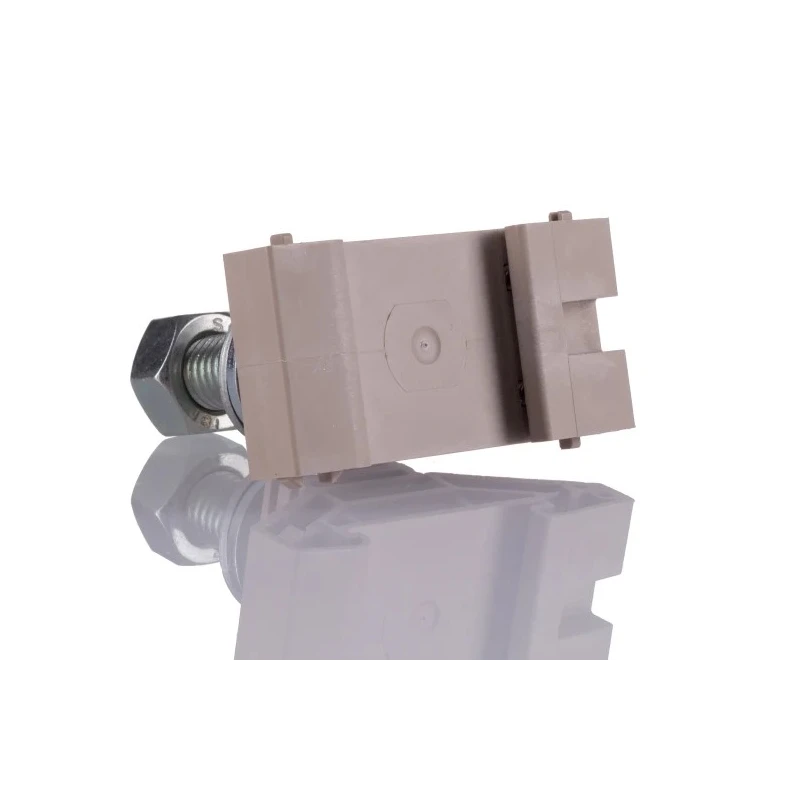

Weidmüller WF 12 Series Stud Terminal Brown 120mm² 1-Level Bolt 1780880000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV |
| Brand | Weidmüller |
| Colour | Brown |
| Series | WF 12 |
| Termination Type | Bolt |
| Maximum Operating Temperature | 120°C |
| Number of Levels | 1 |
| Minimum Operating Temperature | -50°C |
| Standards/Approvals | RoHS, CSA, CE, UL |
| Minimum Wire Size AWG | 10AWG |
| Cable CSA | 120mm² |
| Terminal Block Current | 269A |
| RS PRO Stud Terminal Beige, 1-Level, BoltRS Stock No. | 501-910Brand: RS PRO |
Key Features
- The terminal is constructed with a bolt termination for secure conductor connection.
- It accepts cable sizes from 6 to 120mm², providing versatile wiring options.
- Operating voltage rating is 1kV with an impulse withstand voltage of 8kV.
- Designed to operate in harsh environments with a temperature range from -50°C to +120°C.
- Compact dimensions of 67mm height, 33.8mm width, and 70.5mm depth for tight installations.
- Manufactured from durable materials ensuring resistance to heat and impact.
- Suitable for use in building power supplies, HVAC systems, and telecommunications.
- Mounts quickly onto DIN rails for easy assembly and maintenance.
Product Description
Weidmüller 1780880000 WF 12 Series Stud Terminal offers a reliable connection solution designed for industrial electrical systems requiring high current capacity and durable construction. This brown stud terminal supports cable lug sizes ranging from 6 to 120mm² and provides a nominal current rating of 269A, making it well suited for demanding applications.
Featuring a bolt termination type, this terminal ensures firm and vibration-resistant conductor retention, enhancing system stability in industrial environments such as building power distribution, HVAC units, and telecommunication infrastructures.
The terminal's compact profile (67 mm high, 33.8 mm wide, 70.5 mm deep) allows installation in confined spaces, while its robust Wemid body offers resistance to heat and mechanical impacts, complying with UL94V0 self-extinguishing standards.
Rated for 1kV operating voltage and an 8kV impulse withstand voltage, it protects against electrical surges, thereby increasing system reliability and safety. The operating temperature range from -50°C to +120°C makes this terminal apt for harsh environmental conditions.
The bolt termination ensures secure and stable conductor connections. Acceptance of cable sizes between 6 and 120mm² enhances wiring flexibility. Compact design facilitates installation in low-profile spaces. High current rating of 269A supports heavy electrical loads.
Robust polyamide material provides heat and impact resistance. Impulse withstand voltage of 8kV offers surge protection. Wide temperature range enables operation in diverse industrial environments. Quick DIN rail mounting streamlines assembly and maintenance.
This Weidmüller stud terminal complies with RoHS, CSA, CE, and UL standards, ensuring quality and safety compliance. It is a dependable choice for industrial, construction, electrical distribution, and HVAC applications requiring durable terminal blocks.
Explore more high-quality electrical connectors and Terminal Blocks in the electronics and power connectors category on EnvMart to meet your industrial connection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this terminal is 269A, making it suitable for heavy electrical loads in industrial applications.
This model has an operating voltage rating of 1kV, with an impulse withstand voltage of 8kV for surge protection.
It accepts cable sizes ranging from 6 to 120mm², providing flexibility for various wiring configurations.
This terminal features a bolt termination type, ensuring secure and vibration-resistant conductor connections.
The terminal has compact dimensions of 67mm in height, 33.8mm in width, and 70.5mm in depth, suitable for tight installations.
It is manufactured from robust Wemid material, which provides resistance to heat and mechanical impacts.
This model complies with RoHS, CSA, CE, and UL standards, ensuring quality and safety compliance in industrial applications.
It mounts quickly onto DIN rails, facilitating easy assembly and maintenance in various installations.
It is suitable for use in building power supplies, HVAC systems, and telecommunications, among other industrial applications.
The minimum wire size that can be used is 10 AWG, which corresponds to the terminal's specifications for cable connections.
This terminal is designed as a 1-level terminal, which is typical for straightforward wiring applications.
