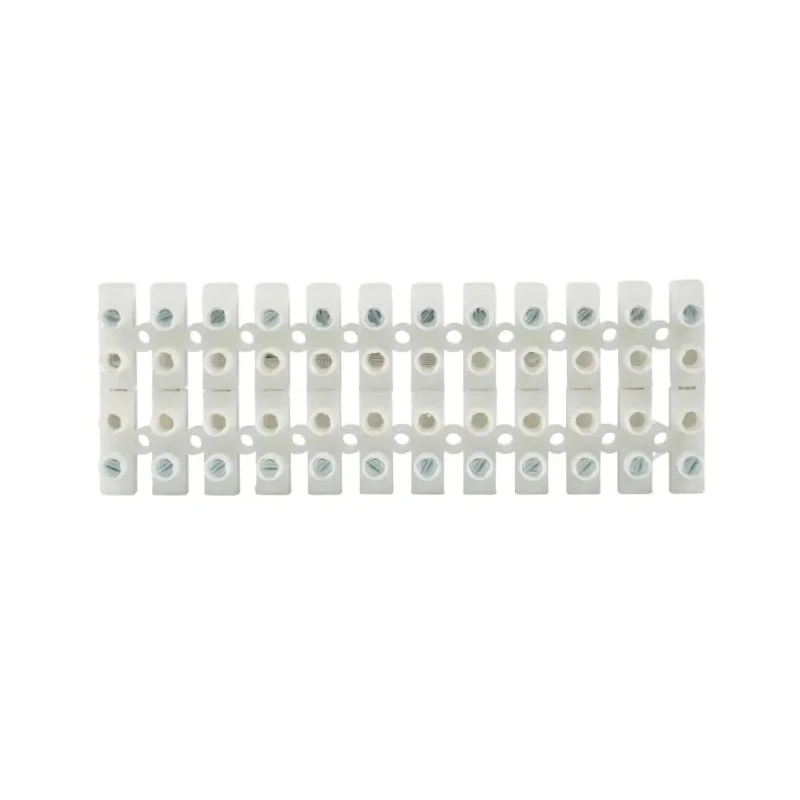

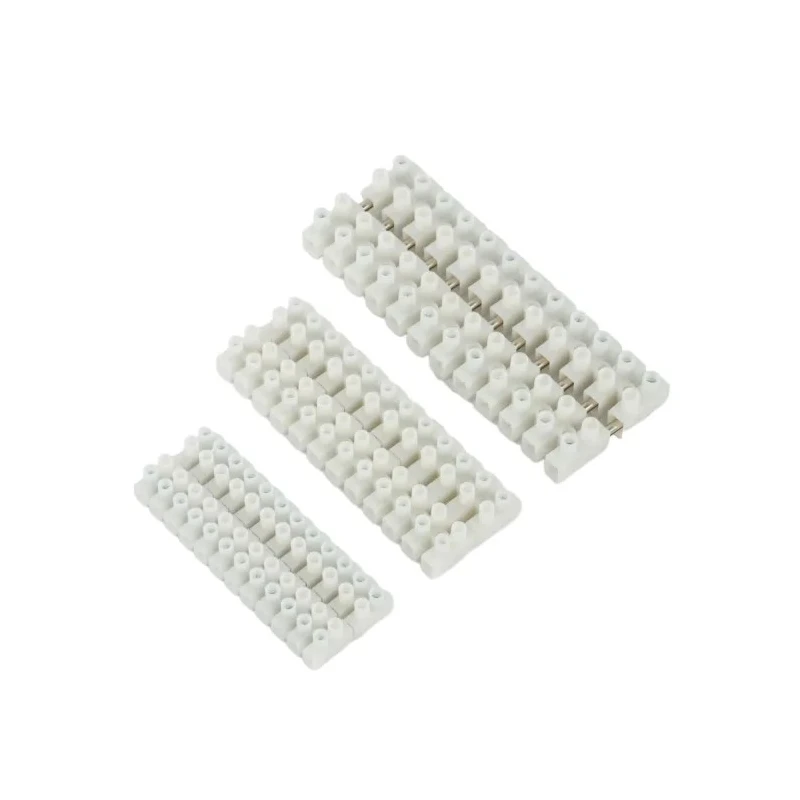

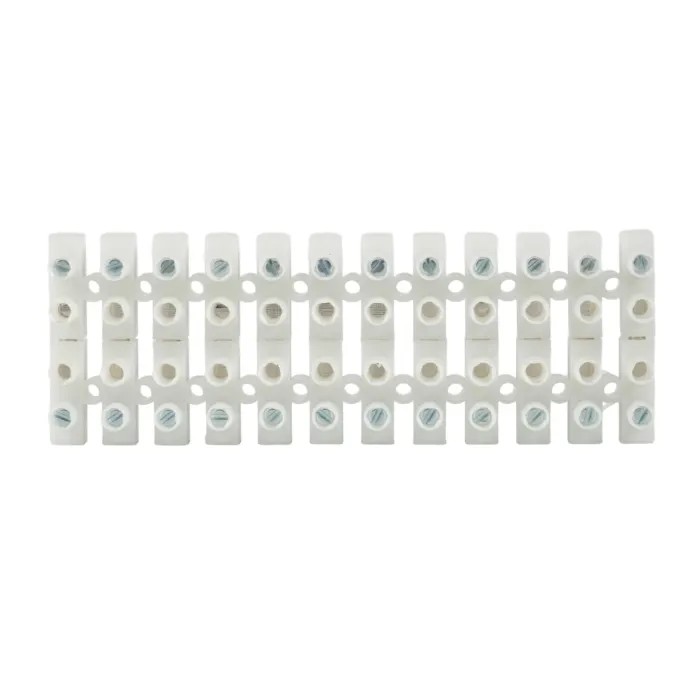

RS PRO Non-Fused Terminal Block 12-Way 10AWG Wire 32A Screw 450V Polyamide 865-9833
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 450V |
| Brand | RS PRO |
| Material | Polyamide |
| Colour | Natural |
| Current | 32A |
| Model | 865-9833 |
| Number Of Ways | 12 |
| Gender | Male |
| Mount Type | Direct |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Screw |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Wire size | 10AWG |
| Pitch | 12mm |
| Contact Plating | Nickel |
| Cable CSA | 6mm² |
Key Features
- The terminal block features 12 individual ways for versatile wiring applications.
- Constructed with durable polyamide material offering flame retardant and high-temperature resistance up to 105°C.
- Nickel-plated brass contact inserts ensure conductivity and corrosion resistance.
- Suitable for use with 10AWG wire size and 6mm² cable cross-section area.
- Equipped with galvanised steel screws that are captive and raised for reliable and easy wiring.
- Operates in temperatures ranging from -40°C to 105°C for a wide range of environments.
- Natural color finish with semi-rigid design for robust industrial and electronic applications.
- Designed to provide wire protection and male gender contacts with direct mount type.
Product Description
RS PRO 865-9833 Non-Fused Terminal Block is engineered as a 12-way polyamide terminal block designed for reliable electrical connections in industrial, commercial, and HVAC systems. With a current rating of 32 amperes and operating voltage of 450 volts, this terminal block supports heavy-duty wiring tasks efficiently.
Built from flame retardant polyamide (PA66), it offers excellent resistance to heat with a maximum operating temperature of 105°C and a minimum temperature tolerance down to -40°C, ensuring stable performance across various environments.
The nickel-plated brass contacts provide optimal conductivity and corrosion resistance, supporting 10AWG wire size and cable cross-section area of 6mm². The captive and raised galvanized steel screws facilitate secure and easy wiring installation using a screw termination system.
This product is a part of the RS PRO series, recognized for quality terminal blocks suitable for installations requiring direct mounting and wire protection. The natural-colored semi-rigid body contributes to a clean and professional electrical panel setup.
Applications include electronic components assembly, power connectors in industrial automation, control gear, electronics systems, and other scenarios needing reliable terminal block connectors for AC/DC connections without fuse protection up to 32 amps.
The terminal block includes 12 wiring ways suitable for complex wiring schemes. Material components include durable polyamide housing and nickel-plated brass contacts for longevity. High temperature and flame-retardant properties to ensure safety and compliance.
Easy wiring with captive, galvanized steel screws raised for accessibility. Suitable for 10AWG wire and 6mm² cable CSA with wire protection features. Rated for direct mount with screw termination suited for industrial electrical applications.
Wide operating temperature supports use in diverse environments. Natural color for identification and standard visual appearance.
RS PRO Non-Fused Terminal Blocks are ideal for use in electronics, power connectors, industrial automation, HVAC systems, manufacturing, and machinery wiring setups where robust, compliant terminal connections are required.
Explore the Electronics & Electricals category for more connectors and terminal block options compatible with your specific project requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this terminal block is 32 amperes.
It is suitable for use with 10AWG wire size and a cable cross-section area of 6mm².
The terminal block is constructed from polyamide with nickel-plated brass contact inserts.
It operates in temperatures ranging from -40°C to 105°C.
It is designed for direct mounting with a screw termination type.
It is equipped with captive and raised galvanized steel screws for secure wiring.
The terminal block has a natural color finish.
It is suitable for applications in industrial automation, HVAC systems, and electronics assembly.
The country of origin for this terminal block is India.
The contact plating material is nickel.
