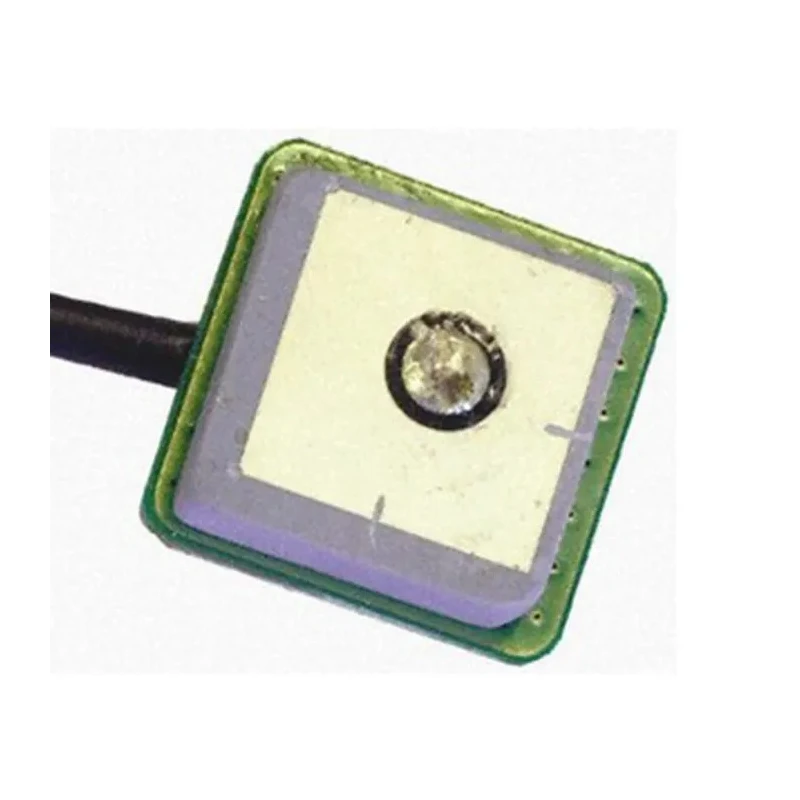

CTi PCB GPS Antenna with UFL Connector, Ceramic Patch 17x17x4mm 1574.4-1576.44MHz Gain 26dBi GPS_MOD17X4
Specifications
| Country of Origin | India |
|---|---|
| Brand | CTi |
| Model | GPS_MOD17X4 |
| Connector Type | UFL |
| Bandwidth | 8MHz |
| Series | GPS_MOD/CH_17X4 |
| Gain | 26dBi |
| Lead Length | 100mm |
| Standards/Approvals | RoHS |
| Maximum Frequency | 1576.44MHz |
| Minimum Frequency | 1574.4MHz |
| RF Protocols | GPS |
| Antenna Physical Form | PCB |
| Antenna Mount Type | PCB |
| Antenna Internal Construction | Ceramic Patch |
Key Features
- The antenna features a square ceramic patch with compact 17x17x4mm dimensions for easy PCB mounting.
- Equipped with a UFL connector providing reliable RF connectivity.
- Operates within the frequency range of 1574.4 to 1576.44 MHz optimized for GPS applications.
- Offers a high gain of 26 dBi, enhancing signal strength and accuracy.
- The antenna has a bandwidth of 8 MHz and comes with a 100mm lead cable for flexible installation.
- Constructed with a ceramic patch internal structure ensuring low power consumption.
- RoHS compliant, meeting environmental and safety standards.
Product Description
The CTi GPS_MOD17X4 is a PCB-mounted GPS antenna featuring an embedded square ceramic patch measuring 17x17x4mm. This compact antenna is designed to provide precise and reliable GPS signal reception, making it suitable for various electronic, navigation, and positioning systems.
Fitted with a UFL connector, the antenna offers easy integration into printed circuit boards for compact device assemblies. It operates within the GPS frequency band from 1574.4 MHz to 1576.44 MHz, ensuring compatibility with standard GPS RF protocols.
With a gain of 26 dBi and a bandwidth of 8 MHz, this antenna enhances the sensitivity and accuracy of GPS systems, which is critical in applications requiring reliable location tracking and timing.
The internal ceramic patch construction ensures minimal power consumption and stable performance under demanding operational conditions. The supplied 100mm lead length provides installation flexibility in tight electronic environments.
Certified RoHS compliant, the GPS_MOD17X4 antenna aligns with global environmental and safety directives, making it suitable for industrial, commercial, and laboratory applications involving GPS navigation, asset tracking, automotive telematics, and IoT devices.
The antenna features a durable ceramic patch that withstands rigorous use. Compact form factor allows integration in space-constrained designs. High gain improves signal capture in challenging environments. Wide frequency bandwidth supports precise GPS signal acquisition.
Low power consumption benefits battery-operated and portable devices. UFL connector ensures secure and reliable RF connections. RoHS certification ensures eco-friendly and regulatory compliance.
This product is an ideal solution for designing GPS-enabled embedded systems, automotive navigation units, and wireless telemetry devices. Explore more GPS antenna options and related components to fulfill your system design requirements on EnvMart.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within the frequency range of 1574.4 MHz to 1576.44 MHz, optimized for GPS applications.
The antenna is equipped with a UFL connector, providing reliable RF connectivity for easy integration into printed circuit boards.
The CTi GPS antenna features compact dimensions of 17x17x4mm, making it suitable for PCB mounting in space-constrained designs.
It comes with a lead length of 100mm, allowing for flexible installation in various electronic environments.
The antenna has a bandwidth of 8 MHz, which supports precise GPS signal acquisition.
Yes, the GPS_MOD17X4 is RoHS compliant, meeting environmental and safety standards.
The antenna features a ceramic patch internal construction, ensuring low power consumption and stable performance.
It is suitable for industrial, commercial, and laboratory applications involving GPS navigation, asset tracking, automotive telematics, and IoT devices.
This model is designed for PCB mounting, allowing for easy integration into electronic assemblies.
The antenna is compatible with standard GPS RF protocols, ensuring reliable signal reception.
The CTi GPS antenna is manufactured in India.
