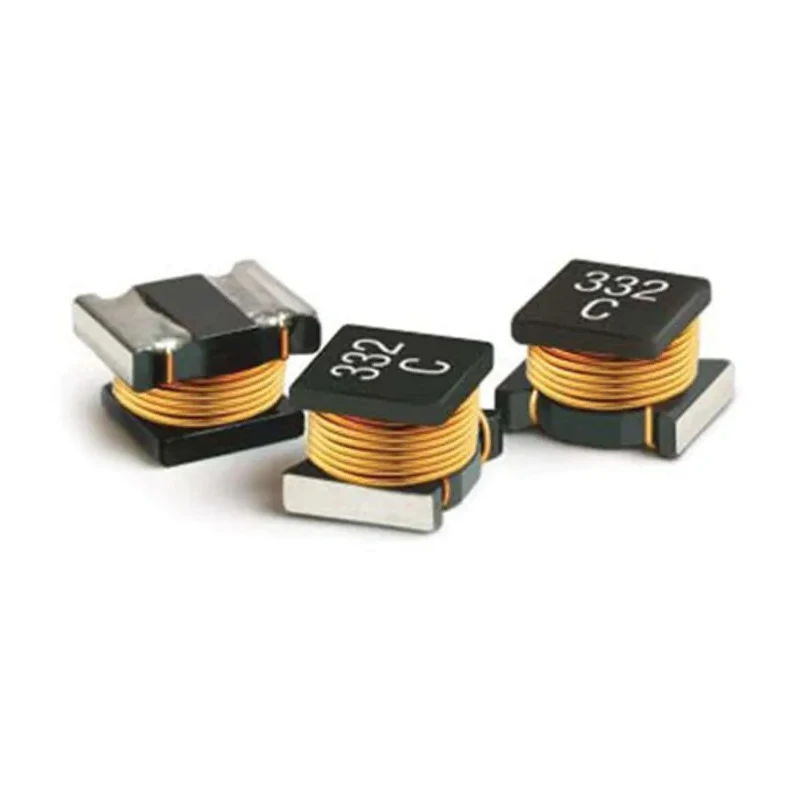

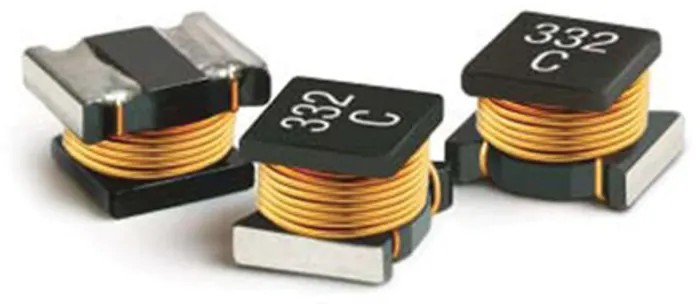

Murata Power Solutions Wirewound Surface Mount Inductor 47 μH ±10 % 250 mA Idc Q:40 82473C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Height | 2mm |
| Length | 3.2mm |
| Model | 82473C |
| Depth | 2.5mm |
| Packaging | Tape & Reel |
| Series | 8200 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Package/Case | 332C |
| Maximum DC Current | 250mA |
| Maximum DC Resistance | 1.69Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 17MHz |
| Minimum Quality Factor | 40 |
| Inductor Construction | Wirewound |
Key Features
- Miniature 332C package suitable for limited PCB space.
- Maximum DC current rating of 250 mA.
- High quality factor of 40 ensuring efficient performance.
- Operating temperature range from -40°C to 85°C.
- Maximum DC resistance of 1.69 Ω minimizes power loss.
- Self-resonant frequency up to 17 MHz enabling high-frequency applications.
- Surface mount termination style for reliable PCB attachment.
- Compliant with RoHS environmental standards.
Product Description
Murata Power Solutions 82473C wirewound surface mount inductor provides 47 μH inductance with ±10 % tolerance and a maximum DC current of 250 mA. This miniature I-core power inductor is designed to fit restricted PCB spaces and low-profile applications.
Its 332C package dimensions are 3.2 mm length, 2 mm height, and 2.5 mm depth, making it ideal for compact devices such as ExpressCard technology, handheld electronics, DC-DC converters, and notebook computers.
The inductor features a high quality factor (Q) of 40 to ensure efficient energy storage and low losses, supporting frequencies up to 17 MHz. Its DC resistance is kept low at 1.69 Ω to minimize power dissipation.
The operating temperature range from -40°C to 85°C enables reliable performance across harsh environmental conditions. Surface mount termination ensures secure mounting on printed circuit boards.
These inductors comply with RoHS standards and are manufactured in China. The 8200 series is known for ultra-low profile wirewound inductors suited for power applications where size and efficiency are critical.
Miniature 332C package suitable for restricted PCB spaces. Maximum DC current rating of 250 mA for power applications. High Q factor of 40 ensures efficient performance. Low DC resistance of 1.69 Ω reduces power loss. Self-resonant frequency up to 17 MHz supports high-frequency use.
Surface mount termination style for ease of PCB assembly. Operating temperature range from -40°C to 85°C for durability. RoHS compliant ensuring environmental safety. Manufactured in China to strict quality standards.
Suitable for industrial, electronic manufacturing, power management, telecommunications, and computing applications. Browse more Surface Mount Inductors and components at EnvMart for your engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47 μH with a tolerance of ±10%.
The maximum DC current rating for this inductor is 250 mA.
It operates within a temperature range of -40°C to 85°C.
The maximum self-resonant frequency is up to 17 MHz, making it suitable for high-frequency applications.
The maximum DC resistance is 1.69 Ω, which helps minimize power loss.
The dimensions of the 332C package are 3.2 mm in length, 2 mm in height, and 2.5 mm in depth.
This model features a surface mount termination style for reliable PCB attachment.
Yes, it complies with RoHS environmental standards.
The inductor has a minimum quality factor (Q) of 40, ensuring efficient performance.
It is suitable for applications in industrial, electronic manufacturing, power management, telecommunications, and computing.
The inductor is packaged in tape and reel format, which is convenient for automated assembly.
This unit is manufactured in China.
