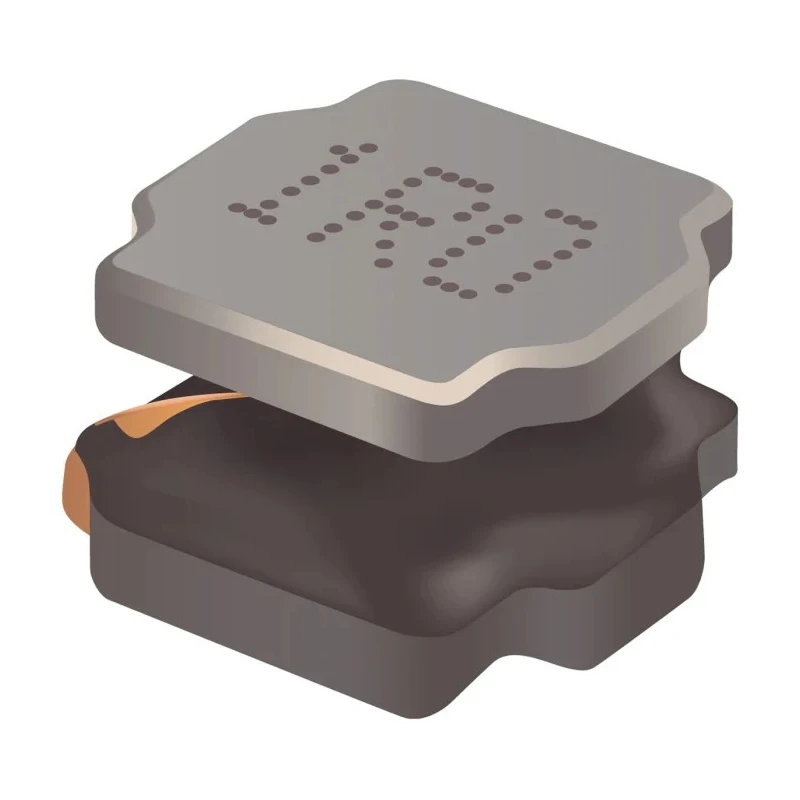

Bourns Shielded Wirewound Surface Mount Inductor, Ferrite Core, 15 μH, ±20 %, 2.8A, Semi Shielded SRN6045TA

The Bourns SRN6045TA-150M shielded wirewound surface mount inductor is engineered with a ferrite core for effective electromagnetic interference suppression. With a rated inductance of 15 μH and a ±20 % tolerance, it is designed to deliver consistent performance in demanding electronic environments. This inductor supports a maximum DC current of 2.8A, suitable for power regulation and filtering applications in both automotive and industrial sectors.

Built with semi shielded, moulded construction and surface mount termination style, the SRN6045TA-150M offers compact dimensions (6 mm length, 6 mm depth, 4.2 mm height) that are optimized for modern PCB layouts. Its compliance with AEC-Q200 automotive standards ensures reliable operation in critical automotive systems such as driver assistants, lighting, information modules, and entertainment electronics.

Core material is ferrite, contributing to high efficiency and stable operation at frequencies up to 20 MHz. The inductor provides a wide operating temperature range from -55°C to 125°C, making it suitable for harsh environments and high-performance applications. Maximum DC resistance is rated at 71 mΩ, and minimum quality factor is 15.

The SRN6045TA-150M is RoHS compliant, indicating environmental safety and regulatory adherence. Its semi shielded design enhances noise immunity, while the moulded body ensures mechanical robustness.

Typical use cases include DC-DC convertors, automotive systems, power supplies, televisions, and digital video equipment. Its reliability and compact form make it ideal for space-constrained designs and industries where stability and certification are paramount.

Shielded wirewound surface mount inductor featuring ferrite core for reduced EMI. 15 μH inductance with ±20 % tolerance provides stable performance in DC-DC convertors and power supplies. Rated for maximum DC current of 2.8A, ideal for automotive and industrial electronics.

Semi shielded, moulded construction ensures durability and resistance to external interference. AEC-Q200 qualified for robust automotive standards and reliability. Supports a wide operating temperature range from -55°C to 125°C.

Compact form factor (6 mm length, 6 mm depth, 4.2 mm height) for efficient PCB integration. RoHS compliant and suitable for high-frequency applications with maximum self resonant frequency of 20 MHz. Explore more inductors and passive electronic components in the Bourns Surface Mount Inductor range on EnvMart.
