TDK 4.7μH 1210 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 150mA, ±10% B82422A1472K100

Free Delivery in India | Lowest Global Shipping Charges

TDK 4.7μH 1210 Unshielded Wirewound Surface Mount Inductor, Ferrite Core, 150mA, ±10% B82422A1472K100



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	2mm
Length	3.2mm
Model	B82422A1472K100
Depth	2.5mm
Packaging	Tape & Reel
Series	B82422A*100
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance	4.7μH
Standards/Approvals	RoHS
Package/Case	1210
Maximum DC Current	150mA
Pin Count	2
Maximum DC Resistance	2.2Ω
Inductance Tolerance	±10 %
Termination Style	Solder
Maximum Self Resonant Frequency	110MHz
Minimum Quality Factor	27
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Compact 1210 surface mount package is ideal for high-density PCB layouts.
4.7μH inductance with ±10% tolerance for reliable filtering and coupling.
Ferrite core construction provides high quality factor and stable resonance.
Maximum DC current rating of 150mA with low DC resistance of 2.2Ω.
AEC-Q200 automotive qualified for enhanced reliability in harsh conditions.
Wide operating temperature range from -55°C to 125°C.
High self-resonant frequency up to 110MHz for RF and high-frequency circuits.
Moulded, unshielded design optimizes for low-profile applications.

Product Description

The TDK B82422A1472K100 is a high-performance wirewound surface mount inductor with a ferrite core, designed in a 1210 (3.2mm × 2.5mm) package. This device is engineered for precise and stable inductance, making it an ideal choice for applications demanding high reliability, such as automotive, industrial, and consumer electronic circuits.

With an inductance value of 4.7 microhenries (μH) and a tolerance of ±10%, this inductor ensures accurate performance in filtering, energy storage, and signal coupling circuits. Its wirewound, unshielded construction provides a high quality factor (minimum Q of 27) and a maximum self-resonant frequency of 110MHz, making it suitable for high-frequency and RF applications where minimal losses and stable operation are essential.

The B82422A1472K100 supports a maximum DC current of 150mA and features a low DC resistance of 2.2Ω, balancing current capability and minimized power loss. Its robust ferrite core contributes to magnetic efficiency and thermal stability across a broad operating temperature range from -55°C to 125°C. Automotive AEC-Q200 standard qualification ensures this inductor meets stringent reliability requirements for use in automotive and industrial environments.

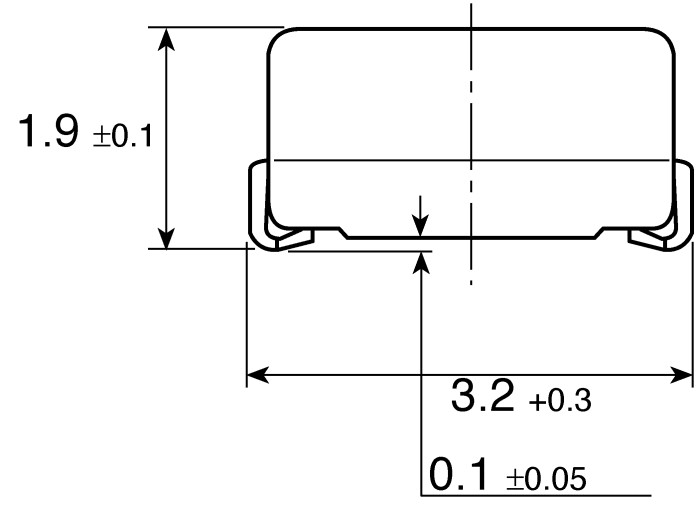

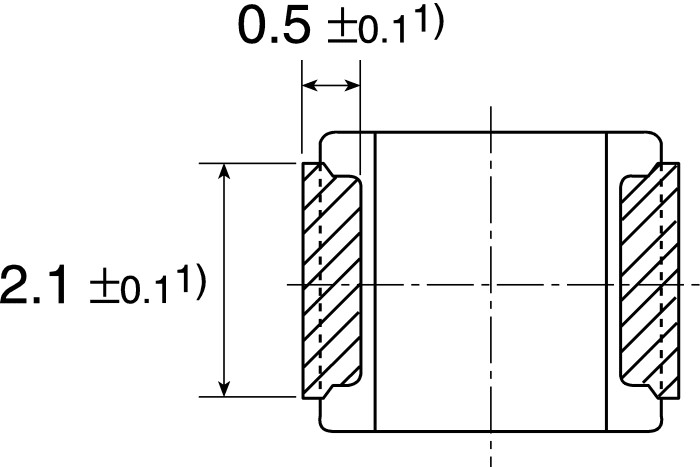

With dimensions of 3.2mm (length) by 2.5mm (depth) by 2.0mm (height) and a moulded case, the inductor is optimized for space-constrained surface mount PCB layouts. Pin count of 2 and standard soldering terminals ensure compatibility with modern SMT assembly processes, while the tape-and-reel packaging supports automated production lines.

The inductor features RoHS compliance for environmental compatibility and uses a reliable solder termination style. The unshielded design enables a low profile and easy integration, though adequate PCB layout practices are recommended to minimize EMI in sensitive circuits.

Applications for the TDK B82422A1472K100 include DC-DC converters, signal filtering, automotive electronics, mobile and wireless devices, and power management modules. It is particularly well-suited for demanding designs that require high performance, thermal stability, and reliable long-term operation.

Engineers and product designers benefit from its combination of compact footprint, reliability, and proven TDK quality, ensuring optimal integration in advanced PCB assemblies. Discover more Surface Mount Inductors and passive components in the Electronics & Electricals category to support your next technology project.
