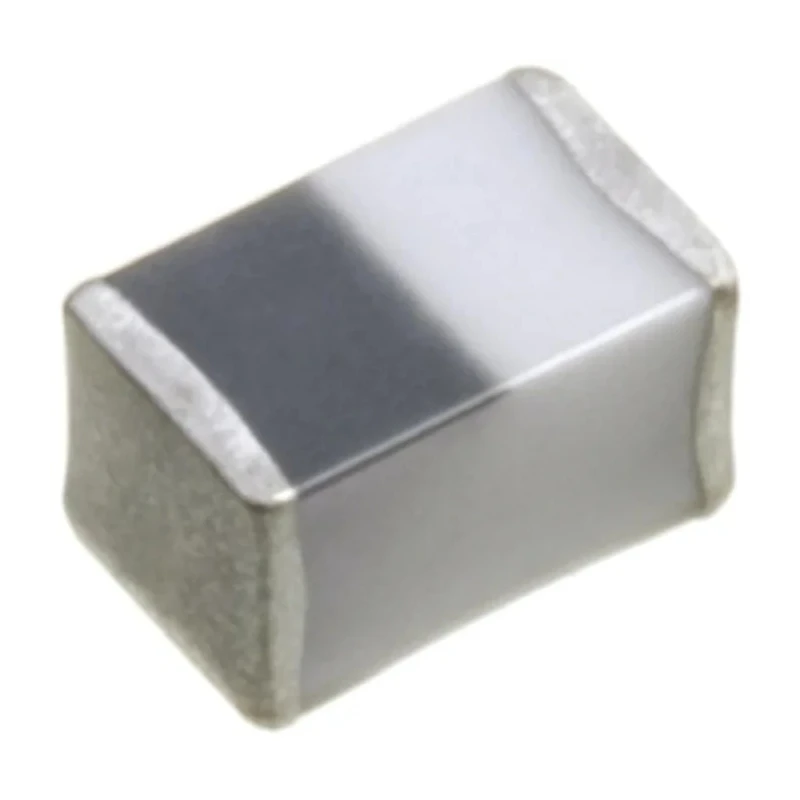

TDK 0402 Shielded Multilayer Surface Mount Inductor with Ceramic Core 6.8 nH ±5% 700 mA Idc MHQ1005P

TDK MHQ1005P 0402 Shielded Multilayer Surface Mount Inductor is designed for high frequency applications requiring precise inductance and minimal noise interference. Featuring a ceramic core and advanced multilayer construction, it achieves a high quality factor comparable to air core inductors. The 0402 package allows for space-saving surface mounting on printed circuit boards.

This component supports a maximum DC current of 700 mA and operates efficiently across a temperature range from -55°C to 125°C. The ±5% inductance tolerance ensures reliability in critical electronic circuits. Its maximum self resonant frequency of 5.8 GHz makes it suitable for use in communication devices including smartphones, tablets, Bluetooth, WLAN, and UWB modules.

Shielding reduces electromagnetic interference, enhancing signal integrity and performance in sensitive applications. The inductor's dimensions (1 mm length, 0.5 mm height, 0.5 mm depth) cater to compact electronic devices. Compliance with RoHS standards guarantees adherence to environmental and safety regulations.

Applications span mobile communication, high frequency modules such as power amplifiers (PAs), voltage-controlled oscillators (VCOs), and front-end modules (FEMs). The product is moulded and constructed using multi-layer technology ensuring durability and consistent electrical performance.

Compact 0402 shielded multilayer surface mount design with ceramic core. High-quality factor suitable for RF and microwave circuits. Capable of handling 700 mA maximum DC current. Temperature rating from -55°C to 125°C and RoHS compliant.

Low DC resistance of 140 milliohms to minimize power loss. Ideal for smartphones, tablets, Bluetooth, WLAN, and UWB electronics. Precise ±5% inductance tolerance at 6.8 nH.

Choose TDK MHQ1005P inductors for high performance shielding and multilayer construction in surface mount technology applications. Browse more Surface Mount Inductors and electronic components on EnvMart for your industrial and commercial needs.
