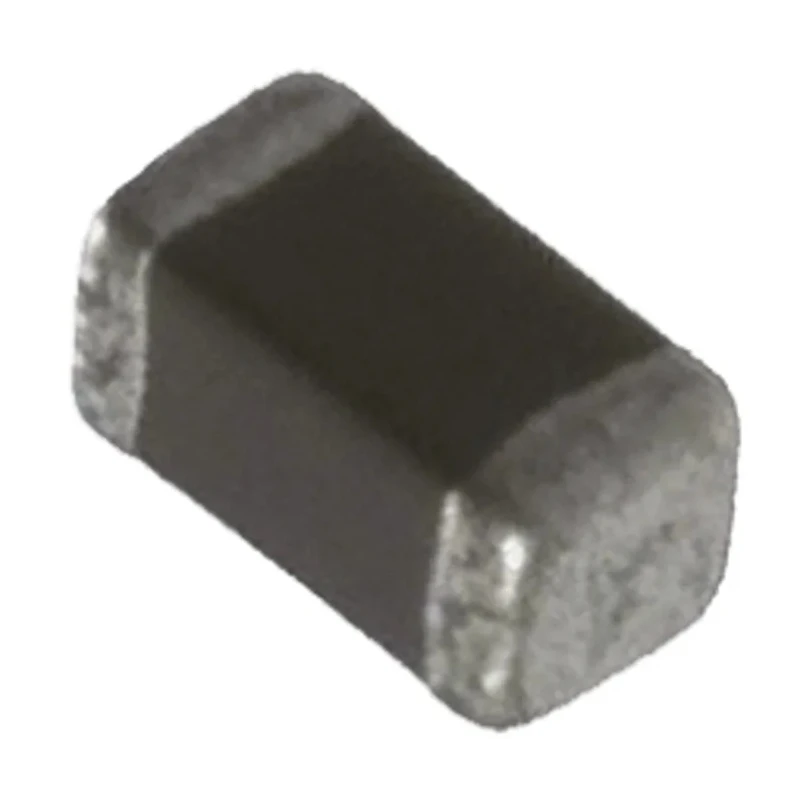

TDK 0.8 mm Surface Mount Ferrite Chip Bead 300 Ω Impedance at 100 MHz MMZ1608R301ATA00

The TDK MMZ1608R301ATA00 is a 0.8 mm surface mount ferrite chip bead manufactured for EMI noise suppression in electronic circuits.

This multilayer chip bead from the MMZ series features magnetic shielding that permits high-density PCB mounting and reduces floating capacitance, significantly improving high-frequency characteristics.

It offers an impedance of 300 Ω at 100 MHz, essential for minimizing signal line noise in applications such as cellular phones, portable audio players, and other sensitive electronic devices.

The compact 0603 package size measures 1.6 mm in length, with a height and depth of 0.8 mm each, making it suitable for modern surface mount technology (SMT) processes. The device can handle currents up to 500mA and has a maximum DC resistance of only 0.25 Ω, ensuring minimal power loss and efficient operation.

Its operating temperature range spans from -55°C to 125°C, making it suitable for a wide range of industrial, automotive, and consumer electronics environments. The MMZ series chip bead is magnetically shielded for enhanced EMI suppression.

Low floating capacitance contributes to improved high-frequency performance. Designed for surface mount use in tape and reel packaging for efficient automated assembly. Compliant with RoHS and REACH environmental standards.

Effective for removing signal line noise in telecommunication and portable audio equipment. Supports industrial and commercial electronic manufacturing applications. Compact 0603 package facilitates high density PCB layouts.

Reliable operation under extreme temperature conditions.

The TDK MMZ1608R301ATA00 ferrite bead is an ideal component choice when requiring efficient EMI filtering for sensitive electronic signal lines across consumer and industrial applications.
