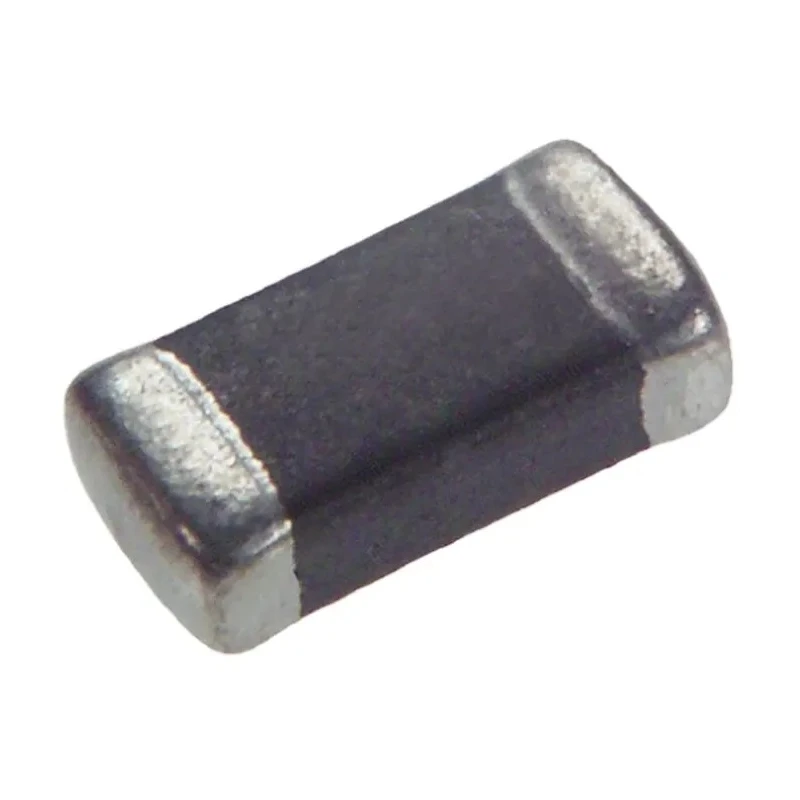

TDK 0.8 mm Surface Mount 0603 Chip Ferrite Bead 1500 Ω Impedance at 100 MHz MMZ1608Y152BTA00

TDK MMZ1608Y152BTA00 is a 0.8 mm (Surface Mount) 0603 size multilayer chip ferrite bead designed to provide 1500 Ω impedance at 100 MHz for effective EMI filtering on signal lines.

This product features a magnetically shielded multilayer construction, enabling high-density mounting on electronic printed circuit boards. The internal conductor construction effectively reduces floating capacitance between conductors, significantly improving performance in high-frequency applications.

With a current rating of 300 mA and a maximum DC resistance of 0.6 Ω, it supports reliable suppression of noise in sensitive electronic equipment. The bead dimensions are 1.6 mm length, 0.8 mm height, and 0.8 mm depth, ideal for surface mounting on compact PCBs.

The product is rated to operate over a temperature range from -55°C to 125°C, ensuring durability in diverse environmental conditions. Compliant with 95, EC, and RoHS directives, this Ferrite Bead meets international environmental and safety standards.

Common applications include noise suppression in cellular phones, portable audio players, digital still cameras (DSCs), and portable gaming devices. This multilayer chip bead reduces floating capacitance, enhancing high-frequency performance.

Offers a current rating of 300 mA suitable for signal line noise removal. Compact dimensions of 1.6 mm length and 0.8 mm height and depth. Operates reliably across a temperature range from -55°C to 125°C. Mount type is surface-mounted for PCB integration.

Maximum DC resistance is 0.6 Ω promoting efficiency. Complies with RoHS EU Directive 2002 and EC 95 standards. Primarily used in cellular phones, portable audio devices, DSCs, and portable game machines.
