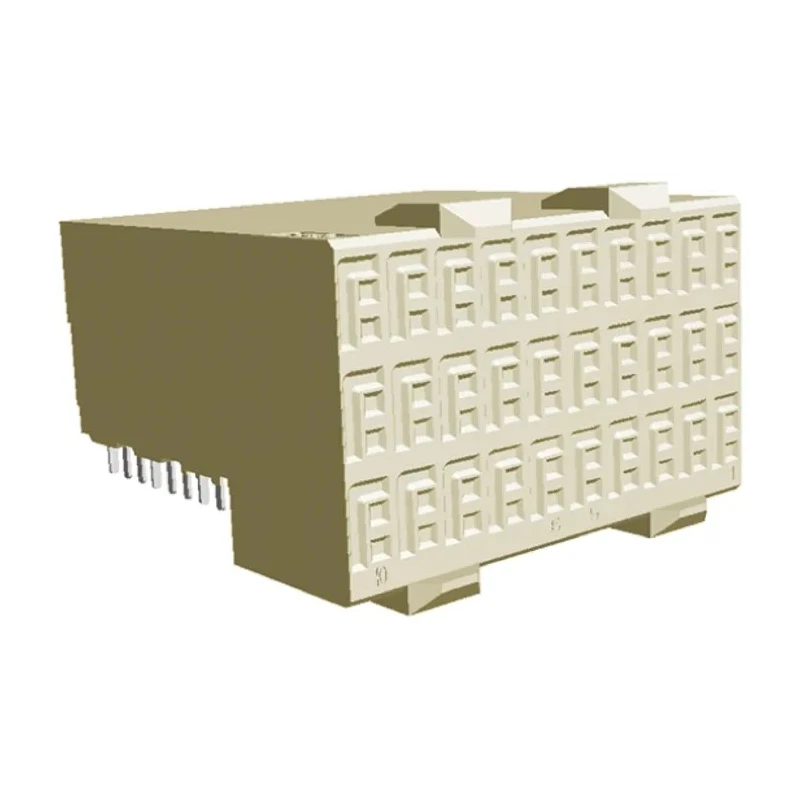

TE Connectivity Z-PACK HM-Zd 2.5 mm Pitch Backplane Connector Right Angle Female 60 Contacts 1469081-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 700mA |
| Mount Type | Through Hole |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Copper Nickel Silicon |
| Series | Z-PACK HM-Zd |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 6 |
| Number of columns | 10 |
| Pitch | 2.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 60 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Supports 60 electrical contacts arranged in 10 columns and 6 rows.
- Rated for a maximum current of 700 mA and voltage of 250V AC.
- Manufactured using fibreglass reinforced polyethylene terephthalate housing for durability.
- Copper nickel silicon contact material with gold over nickel plating ensures reliable connectivity.
- Through hole mount type with solder termination for secure PCB installation.
- Operational temperature range from -65°C to 105°C for varied industrial environments.
- Complies with PICMG 3.x (ATCA) industry standard for backplane connectors.
- High-speed differential board-to-backplane electrical connector ideal for industrial and telecommunications applications.
Product Description
TE Connectivity 1469081-1 Z-PACK HM-Zd 2.5 mm pitch backplane connector is engineered for robust electronic interconnections in industrial, telecommunications, and computing environments. Featuring a right angle female connector with 60 contacts arranged in 10 columns and 6 rows, this connector facilitates high-speed data transmission up to 6.4 Gb/s.
The fibreglass reinforced polyethylene terephthalate housing ensures durability and resistance to harsh operating conditions. Contacts are constructed from copper nickel silicon and plated with gold over nickel to provide excellent conductivity and corrosion resistance. Designed for through-hole mounting with solder termination, it offers reliable mechanical and electrical performance on PCB assemblies.
This connector supports a maximum current rating of 700 mA and voltage of 250V AC, making it suitable for backplane and rack connector applications that require stable power and signal integrity. Its operating temperature range from -65°C to 105°C allows usage in various industrial and laboratory settings.
The series complies with PICMG 3.x (ATCA) standards, ensuring compatibility with industry-standard systems. The high-speed differential design is ideal for applications requiring reliable high-frequency data transfer and signal quality, including telecommunications infrastructure, industrial automation, and data center equipment.
Supports 60 contacts with 10 columns and 6 rows layout. Housing material is fibreglass reinforced polyethylene terephthalate. Contact material is copper nickel silicon with gold over nickel plating. Right angle female orientation with a 2.5 mm pitch.
Through hole mount type with solder termination. Rated for 700 mA current and 250V AC voltage. Operating temperature range from -65°C to 105°C. Compliant with PICMG 3.x (ATCA) industry standards.
This connector is ideal for integration in industrial electronics, telecommunications equipment, data communication backplanes, and other applications requiring robust and high-speed electrical connections.
Explore EnvMart’s broad range of TE Connectivity Backplane Connectors and related products designed for professional industrial, laboratory, and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 700 mA and a voltage of 250V AC.
It features a 2.5 mm pitch with 60 electrical contacts arranged in 10 columns and 6 rows.
The operating temperature range of this connector is from -65°C to 105°C.
The housing is made from fibreglass reinforced polyethylene terephthalate, while the contacts are constructed from copper nickel silicon with gold over nickel plating.
It is designed for through-hole mounting with solder termination, ensuring secure installation on printed circuit boards.
This model complies with the PICMG 3.x (ATCA) industry standard for backplane connectors.
It is ideal for integration in industrial electronics, telecommunications equipment, and data communication backplanes requiring robust electrical connections.
The connector gender is female, designed for right angle orientation.
The contacts are plated with gold over nickel to enhance conductivity and corrosion resistance.
This connector supports a total of 60 contacts.
The 2.5 mm pitch allows for compact and efficient electrical connections, suitable for high-speed data transmission up to 6.4 Gb/s.
The country of origin for this connector is India.
